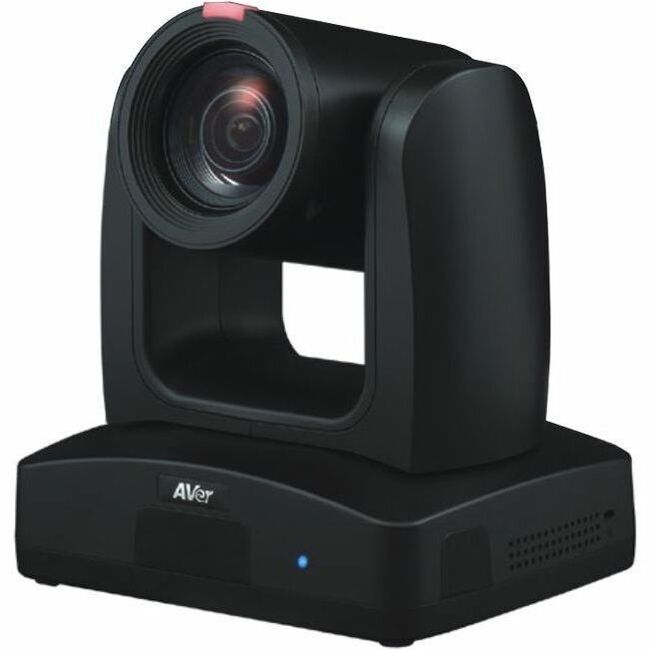

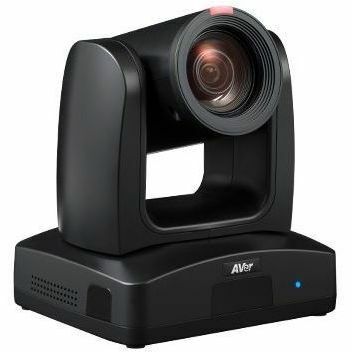

PATR315V3 AVER TR315 12X 4KP60 PROFESSIONAL AUTO TRACKING PTZ CAMERA
Mfg Part Number: PATR315V3 , Item #: 5069655
, PO and Wire.
Exceptional Video Quality with Zero Compromises
The AVer TR315 AI Auto Tracking Camera delivers professional-grade lectures, sermons, trainings or whatever you need to stream! The 12X optical zoom, powerful 8MP camera and 4K resolution offer the range and picture quality to produce the highest quality productions. The advanced artificial intelligence (AI) technology allows you to track your speaker (full or half body) or pre-set shoot zone without a dedicated camera operator. The TR315 includes a number of impressive upgrades from the previous generation TR313V2, including improved performance and simultaneous output on USB and IP.
Harness the Magic of NDI/HX3
Includes the most recent edition of the NDI protocol is NDI®version 3 (NDI®|HX3). Features 4Kp60 NDI output with latency less than 100ms.
Presenter tracking
- Capture every interaction
- Either track full body or half body
- Simple click to track and manually follow an additional presenter via remote control or Web UI
Zone tracking
- Establish preset zones
- Create video focused on content
- Enhance the capture of content on multiple displays
| General Information | |
| Manufacturer | AVer Information Inc |
| Manufacturer Part Number | PATR315V3 |
| Manufacturer Website Address | http://www.averusa.com |
| Brand Name | AVer |
| Product Model | TR315 |
| Product Name | 12X 4K PTZ Streaming Camera |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | 4K |
| HD Recording | Yes |
| Camera Iris | Manual |
| Camera Iris | Auto |
| AI-powered | Yes |
| Display & Graphics | |
| Image Sensor Type | Exmor CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | D FOV 80.6° (wide) ~ 7.7°(Tele) HFOV 72.8° (wide) ~ 6.7°(Tele) V FOV 44.1° (wide) ~ 3.8°(Tele) |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | MJPEG |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | 3G-SDI |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.90 mm |
| Maximum Focal Length | 46.80 mm |
| Lens Included | Yes |
| Minimum Aperture | f/2.8 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 12x |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4 |
| Protocols | ARP |
| Protocols | RTMP |
| Protocols | VISCA over IP |
| Protocols | TCP |
| Protocols | LLDP |
| Protocols | RTSP |
| Protocols | RTP/RTCP |
| Protocols | UDP |
| Protocols | IGMP |
| Protocols | HTTP |
| Protocols | ICMP |
| Protocols | HTTPS |
| Protocols | DHCP |
| Remote Management | Yes |

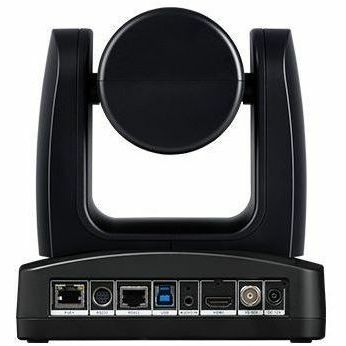

| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 18 W |
| Input Voltage | 12 V |
| Power Source Type | PoE+ |
| Physical Characteristics | |
| Mount Type | Ceiling Mount |
| Height | 7.6" |
| Width | 7.1" |
| Depth | 5.7" |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Operating Humidity | 20% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 20% |
| Maximum Storage Humidity | 95% |
| Miscellaneous | |
| Features | 3D Noise Reduction |
| Features | 2D Noise Reduction |
| Features | Back Light Compensation (BLC) |
| Features | Wide Dynamic Range |
| Features | Noise Reduction |
| Features | Mirror |
| Features | Auto Gain Control |
| Features | PTZ |
| Features | Auto Tracking |
| Features | White Balance |
| Indoor/Outdoor | Indoor |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | Accessories 1 year |
