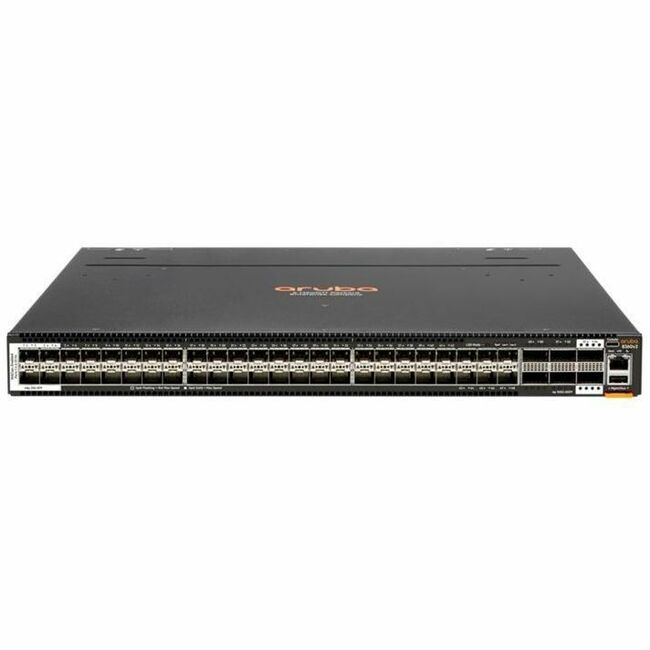

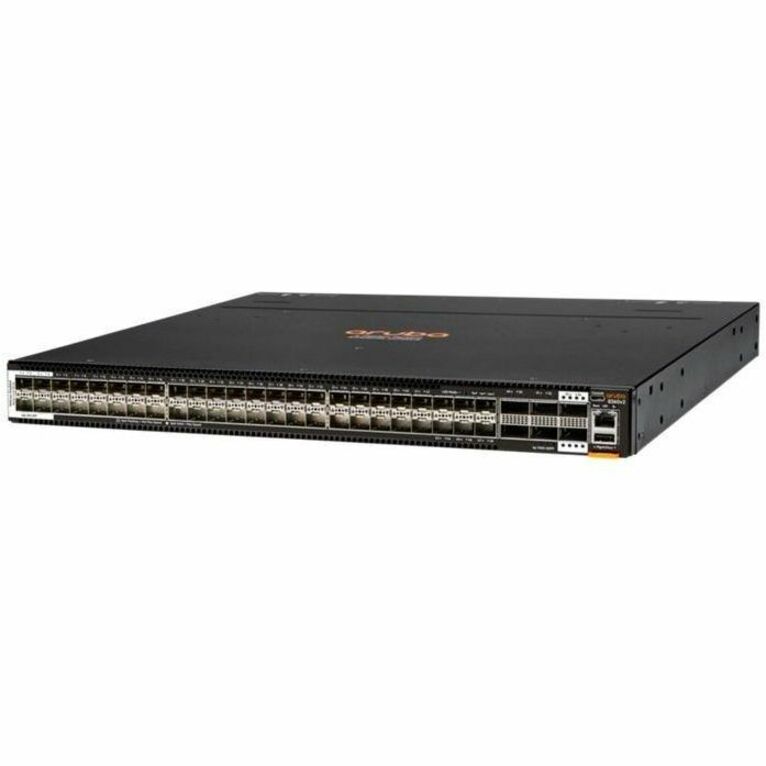

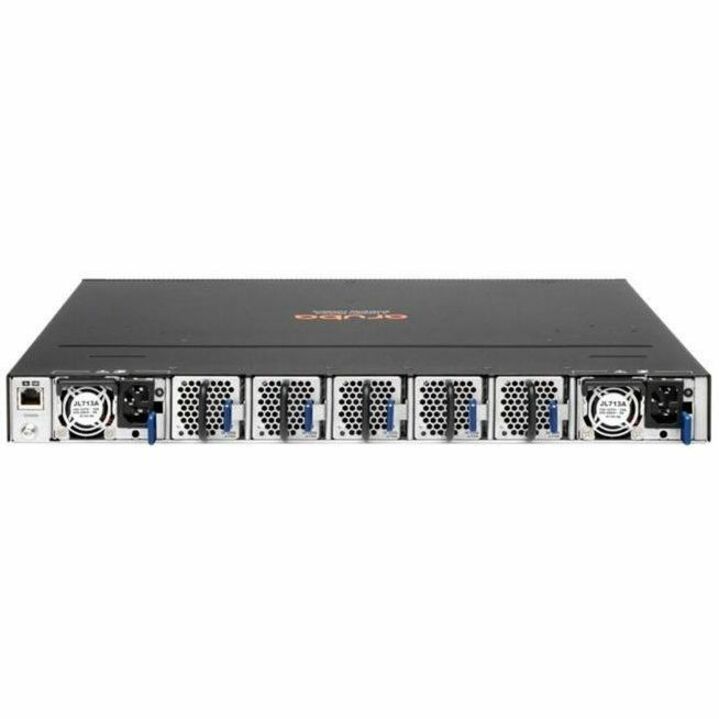

R9G23A#ABB ARUBA 8360-48Y6CV2 PWR2PRT Bundle HPE EU EN

Aruba CX 8360 v2 Switch Series
The Aruba CX 8360v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps.
The 8360v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.

In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.
Key Features

• High-performance 4.8Tbps and 2,678 Mpps
• Intelligent monitoring and visibility with Aruba Network Analytics Engine
• High availability with industry leading VSX redundancy, and redundant power supplies and fans
• Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments
• MACsec secured connectivity over untrusted domains
• ArubaOS-CX automation and programmability using built-in REST APIs and Python scripts
• Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6
• 50G support on 8360-48Y6C, 32Y4C and 16Y2C switches
• Addition of Smart Rate (1/2.5/5/10G) ports on the 8360-48XT4C

Standard Features | Product Differentiators

The Aruba CX 8360 switch series is based on ArubaOS-CX, a modern, database driven operating system that automates and simplifies many critical and complex tasks. The enhanced capabilities of ArubaOS CX provide a unique set of differentiators for campus and data center switching.
Modular Architecture with Native Cloud-Native ArubaOS-CX

ArubaOS-CX is built on a modular Linux architecture with OVSDB, providing the following unique capabilities: Safe and powerful access to all state at all times allows unique visibility and analytics capabilities

General Information
Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	R9G23A#ABB
Manufacturer Website Address	http://www.hpe.com
Brand Name	HPE
Product Series	CX 8360v2
Product Model	8360-48Y6C v2
Product Name	8360-48Y6C v2 Ethernet Switch
Product Type	Ethernet Switch
Technical Information
Features	Hot-swappable
Interfaces/Ports
Uplink Port	Yes
Modular	Yes
Port/Expansion Slot Details	6 x 100 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details	48 x 25 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported	Optical Fiber
Ethernet Technology	25 Gigabit Ethernet
Ethernet Technology	100 Gigabit Ethernet
Network Technology	25GBase-X
Network Technology	100GBase-X
I/O Expansions
Total Number of Expansion Slots	54
Expansion Slot Type	SFP28
Expansion Slot Type	QSFP28
Network & Communication
Layer Supported	3
Networking Standards	IEEE 802.1ae
Networking Standards	IEEE 802.1p
Networking Standards	IEEE 802.3ad
Networking Standards	IEEE 802.3ae
Networking Standards	IEEE 802.3an
Networking Standards	IEEE 802.3by
Networking Standards	IEEE 802.1s
Networking Standards	IEEE 802.1v
Networking Standards	IEEE 802.3ba
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.1AEbn
Networking Standards	IEEE 802.1t
Networking Standards	IEEE 802.3cd
Networking Standards	IEEE 802.1AEbw
Networking Standards	IEEE 802.1AX
Networking Standards	IEEE 802.1Q
Networking Standards	IEEE 802.3z
Networking Standards	IEEE 802.1ab
Networking Standards	IEEE 802.1ak
Networking Standards	IEEE 802.3cc
Networking Standards	IEEE 802.1w
Management & Protocols
Manageable	Yes
Power Description
Input Voltage	120 V DC
Input Voltage	230 V AC
Frequency	50 Hz
Frequency	60 Hz
Power Source	AC
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Number of Power Supplies Supported	2
Power Consumption	725 W
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Surface Mount
Form Factor	Cabinet Mount
Form Factor	Rack-mountable
Height	1.7"
Width	17.4"
Depth	22"
Weight (Approximate)	23.65 lb
Miscellaneous
Application/Usage	Business
Application/Usage	Enterprise
Application/Usage	Network
Application/Usage	Data Center
Application/Usage	Campus
TAA Compliant	Yes
