ASUS MB N97S-IM-AA N97 Max.16GB DDR5 SO-DIMM 3.5 SBC Brown box
Mfg Part Number: N97S-IM-AA , Item #: 5026355
, PO and Wire.

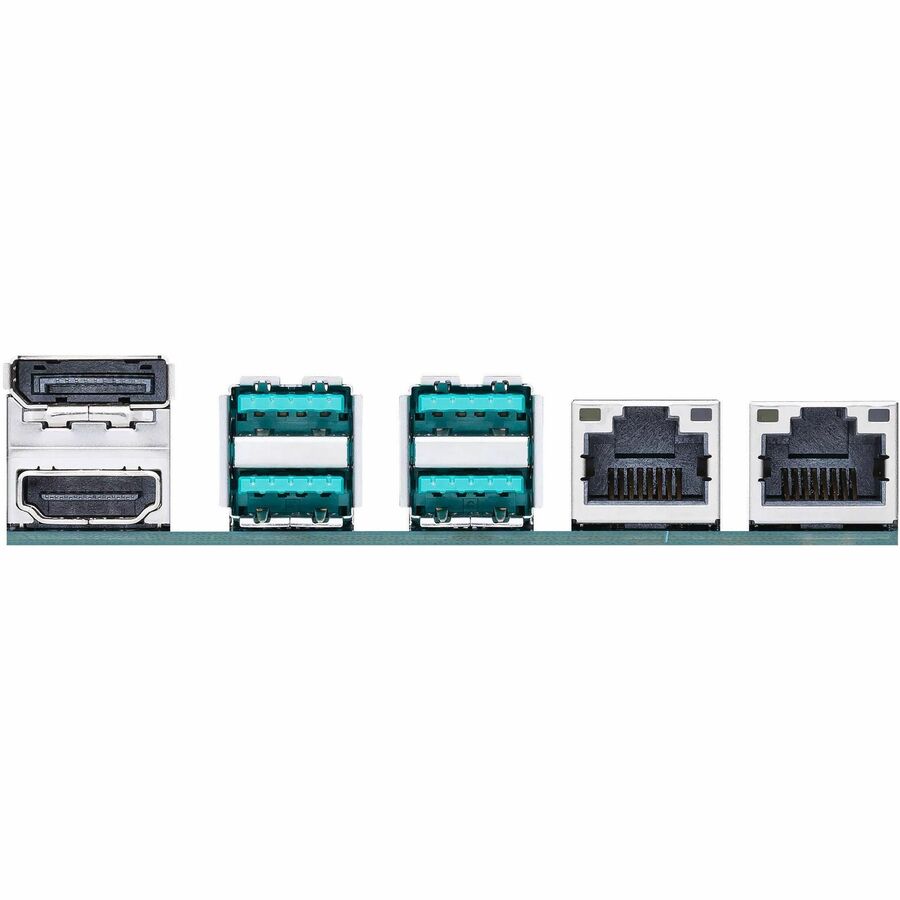

N97S-IM-AA is a 3.5" Single Board Computer with Intel® N97 Processor, DDR5 4800 MHz, DP, HDMI, LVDS/eDP, Dual-LAN, Multiple COM, Nano-SIM, 9-36V DC
- Intel® N97 Processor on board and with chipset integrated
- Up to 6 COM ports, includes 2 x RS 232/422/485
- Supports 3 display configuration by multiple interface: DP/HDMI/LVDS(eDP)
- Supports I2C, SMBus and GPIO
- Wide range of power inputs 9~36V
- Seven years of longevity with extended product life cycles

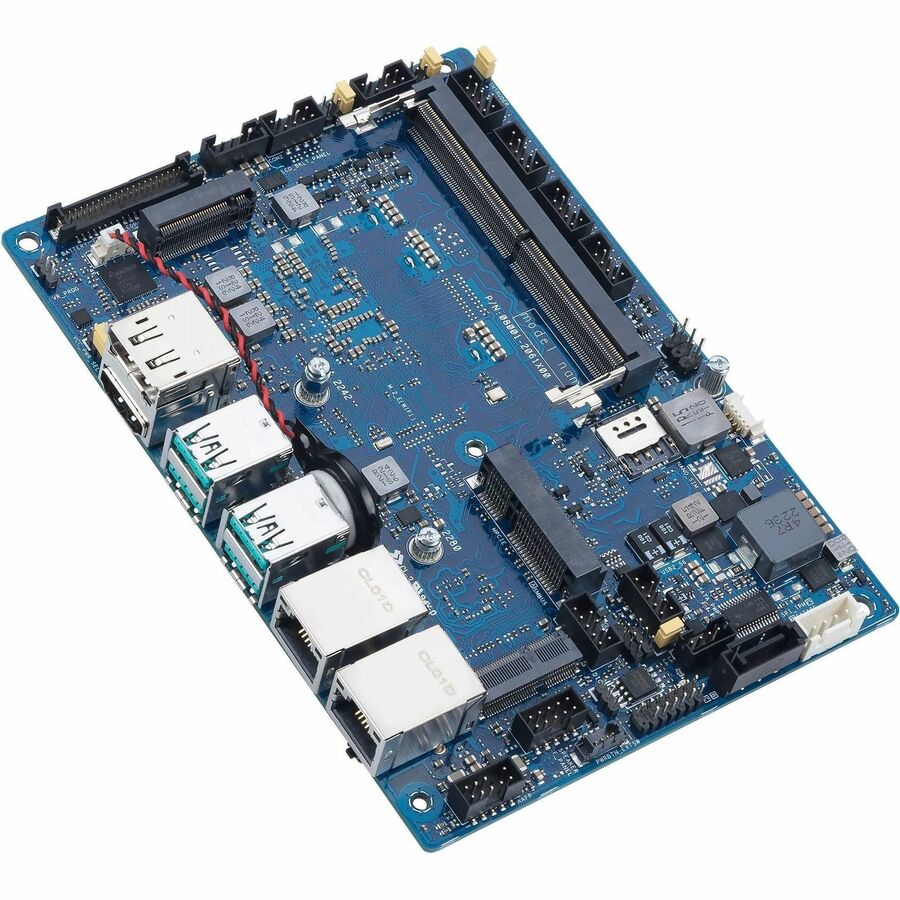

N97S-IM-AA is a 3.5" Single Board Computer featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, legacy options for industrial applications, GPIO ports, dual Intel LAN as well as rich expandability with two M.2 sockets (E and M key) and a full-length Mini PCIe slot with on-board Nano-SIM socket, N97S-IM-AA is an ideal choice for a wide range of embedded applications.
As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | N97SIMAA |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus |
| Product Model | N97S-IM-AA |
| Product Name | N97S-IM-AA Industrial Motherboard |
| Product Type | Industrial Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Supported | N-series |
| Memory | |
| Number of Memory Slots | 1 |
| Memory Form Factor | SoDIMM |
| Maximum Memory Supported | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| HDMI | Yes |
| HDMI Version | 2.0 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 2 |
| Number of Onboard USB 2.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | 3.5" SBC |
| Width | 5.7" |
| Depth | 4.1" |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
