NUC 12 Pro empower businesses with revolutionary performance, comprehensive security, and the peace of mind of remote manageability.
- 12th Gen Intel® Core™ i7/i5/i3 processors or Intel vPro® Enterprise with 12th Gen Intel® Core™ i7/i5 processors
- Intel® Iris® Xe graphics
- Up to 64 GB dual-channel DDR4-3200 SODIMMs
- Storage:
- ? M.2 22x80 key M slot for PCIe x4 Gen 4 NVMe SSD
- ? M.2 22x42 key B slot for PCIe x1 Gen 3, USB 3.2 Gen 2, USB 2.0, and SATA SSD expandability
- ? Support in tall chassis for third SSD with 2.5" drive capability (up to 15mm tall)

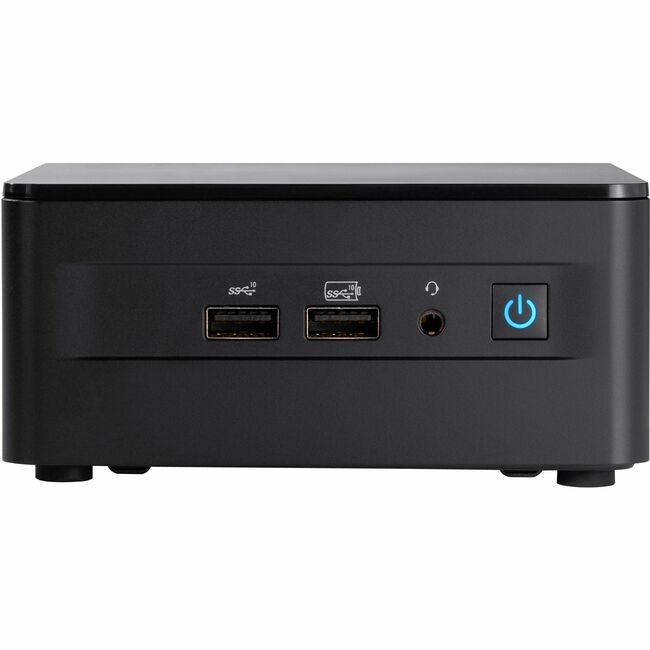

Built for Business. NUC 12 Pro
Boost business performance with 12th Gen Intel®Core™processors and the latest features to support productivity, collaboration, and edge compute.
NUC 12 Pro Mini PCs, Kits, & Boards
Ready to work, wherever it's needed-the 4x4 compact device is designed to go where you go, and fit into any space.
Powerful Performance Perfect Fit
Experience the advanced power and performance for edge computing, collaboration, home offices, and more- 12th Gen Intel®Core™processors deliver it all.
Small Size. Big Business Performance
NUC 12 Pro Mini PCs and Kits raise the bar for performance and connectivity in a 4x4 device for the edge, business, or home. 12th Gen Intel®Core™processors deliver revved-up performance with up to 64 GB dual-channel memory and ample SSD capacity-plus lightning-fast wired and wireless connectivity.
The Power Of Small
With a 4" x 4" footprint, pint-sized NUC 12 Pro Mini PCs and Kits are available in two chassis, including tall kits with a 2.5" drive bay and an internal expansion bay.
Brilliant graphics
Small size and brilliant graphics technologies make NUC systems an ideal choice for kiosks, signage, video walls, and more. Choose from systems with Intel®Iris®Xegraphics or customizable discrete graphics.
Surprising size. Supercharged performance
Level up your business with the latest technologies.
Mighty performance
With 12th Gen Intel®Core™processors, NUC 12 Pro Mini PCs, Kits, and Boards deliver the latest in powerful performance for edge computing, collaboration, home offices, and more.
Mighty performance
With 12th Gen Intel®Core™processors, NUC 12 Pro Mini PCs, Kits, and Boards deliver the latest in powerful performance for edge computing, collaboration, home offices, and more.
Intel vPro®platform
Created for IT professionals, Intel vPro®Enterprise sets the standard for business: multilayer hardware-based security, efficient remote manageability, business-class performance, and PC fleet stability. Powerful, proven performance for today and tomorrow.
Device management is built-in
Stay on top of all of your devices. Oversite tools like Application Monitor, Player Failover and Advanced Features make NUC devices easy for admins.
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | RNUC12WSHV50000 |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus |
| Product Line | NUC 12 Pro |
| Product Model | NUC12WSHv5 |
| Product Name | NUC 12 Pro NUC12WSHv5 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 12th Gen |
| Processor Model | i5-1250P |
| Processor Core | Dodeca-core (12 Core) |
| Maximum Turbo Speed | 4.40 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2.0 |
| Intel Optane Memory Ready | No |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA |
| Supported Storage Drive Types | SSD |
| Controllers | |
| Controller Type | Serial ATA |
| Controller Type | NVMe |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| I/O Expansions | |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Ports | 3 |
| Number of Onboard USB 2.0 Ports | 3 |
| Network (RJ-45) | Yes |
| Number of SATA Interfaces | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Supported | Ubuntu 20.04 LTS |
| Operating System Supported | Windows 10 Home |
| Operating System Supported | Windows 10 IoT Enterprise |
| Operating System Supported | Windows 11 Home |
| Operating System Supported | Red Hat Linux |
| Operating System Supported | Windows 10 Pro |
| Operating System Supported | Windows 11 Pro |
| Power Description | |
| Thermal Design Power | 35 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 2.1" |
| Width | 4.4" |
| Depth | 4.6" |
