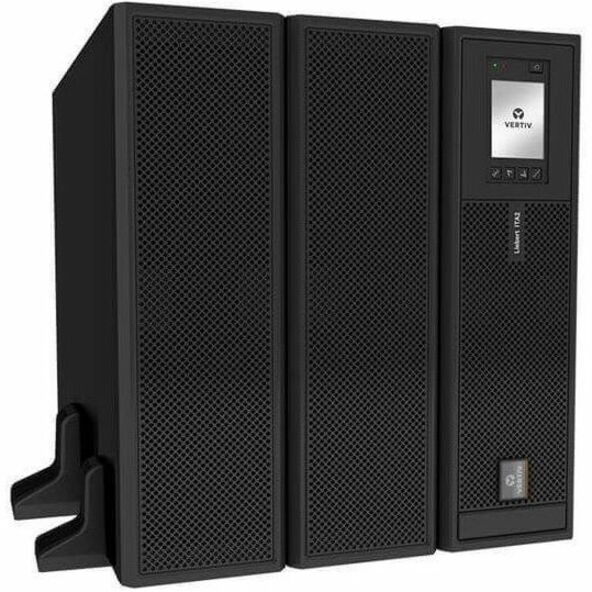

VERTIV ITA2-10KRT2087UN 10KVA ITA2 VRLA BATTERY UPS WITH NETWORK CARD

The Vertiv Liebert ITA2 is a compact, rack-tower convertible uninterruptible power system (UPS) that employs true online, double-conversion technology that continuously conditions and regulates its output voltage. The Liebert ITA2 is designed to supply microcomputers, servers, networking, and other sensitive equipment with clean sine wave input power. It offers economical, efficient, and reliable three-phase power for critical loads up to 10kVA. In rackmount or tower configuration, this intelligent UPS has scalable battery runtimes, output distribution options, a high power factor and an optional maintenance bypass cabinet. It is easy to install and operate. It has a 2-year warranty. The Vertiv Liebert ITA2 External Battery Cabinet System has a rackmount or tower configuration. The EBC System consists of (2) 2U cabinets per string (total 4U per string) and provides the Liebert ITA2 UPS with extended battery runtimes. It is easy to install and operate. It has a 2-year warranty.

More from the Manufacturer

General Information
Manufacturer	Vertiv
Manufacturer Part Number	ITA210KRT2087UN
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Liebert
Product Series	ITA2
Product Name	ITA2-10KRT2087UN UPS
Product Condition	New
Packaged Quantity	1
Product Type	Double Conversion Online UPS
Technical Information
Receptacle Type	Hardwired
Overload Protection	Yes
Transfer Time	0 ns
EMI/RFI Noise Filter	Yes
Phase	Three Phase
Application/Usage	Electronic
Application/Usage	VoIP Device
Application/Usage	Network Closet
Application/Usage	IOT Device
Application/Usage	Large Network Peripheral
Application/Usage	Server
Application/Usage	Network Workstation
Surge Suppression	Yes
Features	Built-in Bypass Switch
Power Description
Load Capacity (VA)	10000 VA
Load Capacity (Watt)	10 kW
Input Voltage	120 V AC
Input Voltage	230 V AC
Input Voltage Range	166 V AC - 249 V AC
Input Current	37 A
Output Voltage	208 V AC
Output Voltage	220 V AC
Output Voltage	127 V AC
Output Voltage	120 V AC
Waveform Type	Pure Sine Wave
Surge Energy Rating	80 J
Circuit Breaker	Yes
Output Power Factor	0.9
Management
Network Management	SNMP
Network Management	Modbus TCP
Network Management	Network Card
Alarm	Alarm
Interfaces/Ports
Serial Port	Yes
Network (RJ-45)	Yes
USB	Yes
EPO Port	Yes
Battery Information
Battery Characteristics	Valve-regulated
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	8 Minute
Backup/Run Time (Half Load)	21 Minute
Typical Battery Recharge Time	5 Hour
Hot Swappable	Yes
Replaceable Battery	Yes
Environmental Conditions
Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	122°F (50°C)
Physical Characteristics
Color Family	Dual Color
Product Color	Black
Product Color	Gray
Height	5.1"
Width	16.9"
Depth	19.7"
Rack Height	3U
Form Factor	Rack/Tower
Weight (Approximate)	50.70 lb
Miscellaneous
Package Contents	ITA2-10KRT2087UN UPS USB Cable Rack Handles & Associated Hardware Rack Rail Kit & Associated Hardware Wiring Boxes with Knockouts Installed on Back of Module 4 x Support Base ends for Tower Mount Application 2 x Support Base Extension Quick Start Guide (install & Start-up)/Safety Instruction Booklet IS-Unity-DP Intellislot Communication Card Installed Power Cable Kit - UPS to 1st Battery String Communication Cable - UPS to 1st Battery String 1 x string VRLA Battery Cabinets
Certifications & Standards	UL/cUL listed to UL 1778, 5th Ed.; CSA 22.2 No. 107.3 FCC Part 15, Class A ANSI C62.41 Cat. A Level 3 IEC 62040-1 IEC6240-3 ISTA 1A
Energy Star	Yes
Country of Origin	China
TAA Compliant	No
Environmentally Friendly	Yes
Energy Efficiency Certification	ENERGY STAR 2.0
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
Warranty
Limited Warranty	2 Year
Additional Warranty Information	2 year standard; 1 & 3 Additional years optional
