AIM, TRIGGER, DECODE: IT'S THAT SIMPLE!
An intuitive and effortless scanning experience is the target of the PowerScan™ 9501 series. They combine omnidirectional reading capabilities with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, Datalogic's latest decoding software guarantees snappy reading in any type of environment.
MOBILITY ENHANCES PRODUCTIVITY
The Datalogic STAR Cordless System™ for narrow-band radio communications was developed specifically to maximize efficiency and reliability for handheld scanner data collection applications. The PowerScan PM9501 models are equipped with a new generation of the STAR-System that further improves the already outstanding features of versatility, ease of use and radio range.
The PM9501 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.
The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.
DEVELOPED WITH THE USER IN MIND

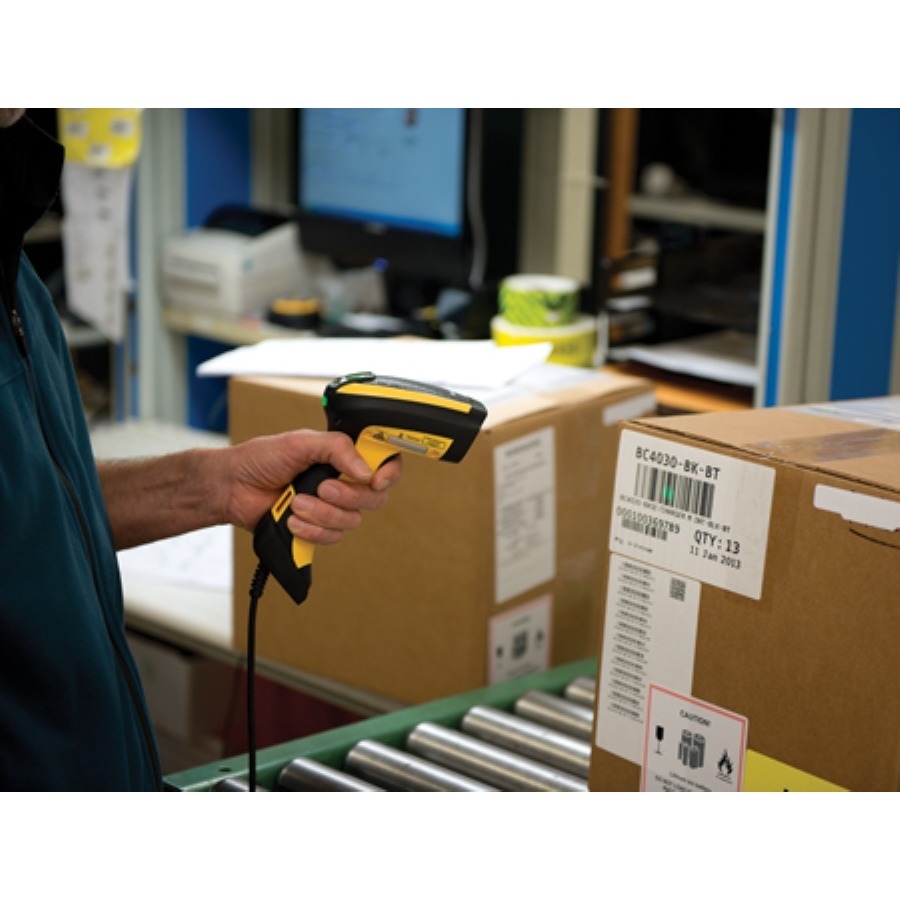

Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort.

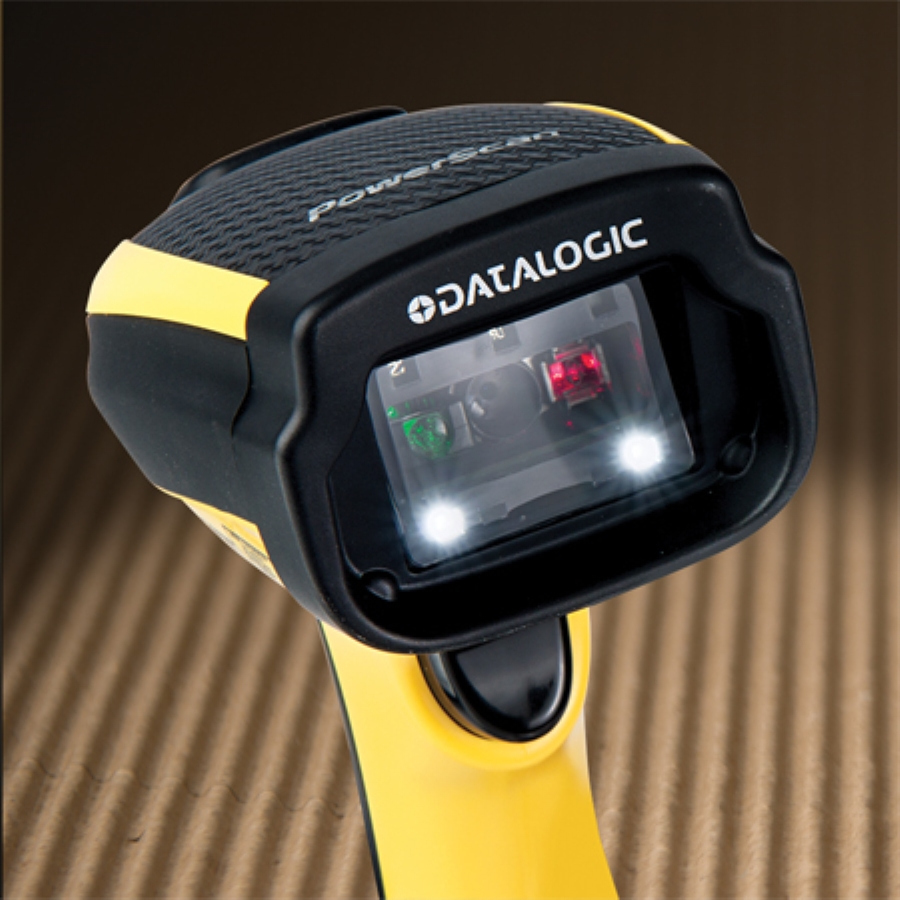

The PowerScan 9501 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.
General Information | |
Manufacturer | Datalogic S.p.A |
Manufacturer Part Number | PM9501-HP433RBK10 |
Manufacturer Website Address | http://www.datalogic.com |
Brand Name | Datalogic |
Product Line | PowerScan |
Product Series | 9501 |
Product Model | PM9501 |

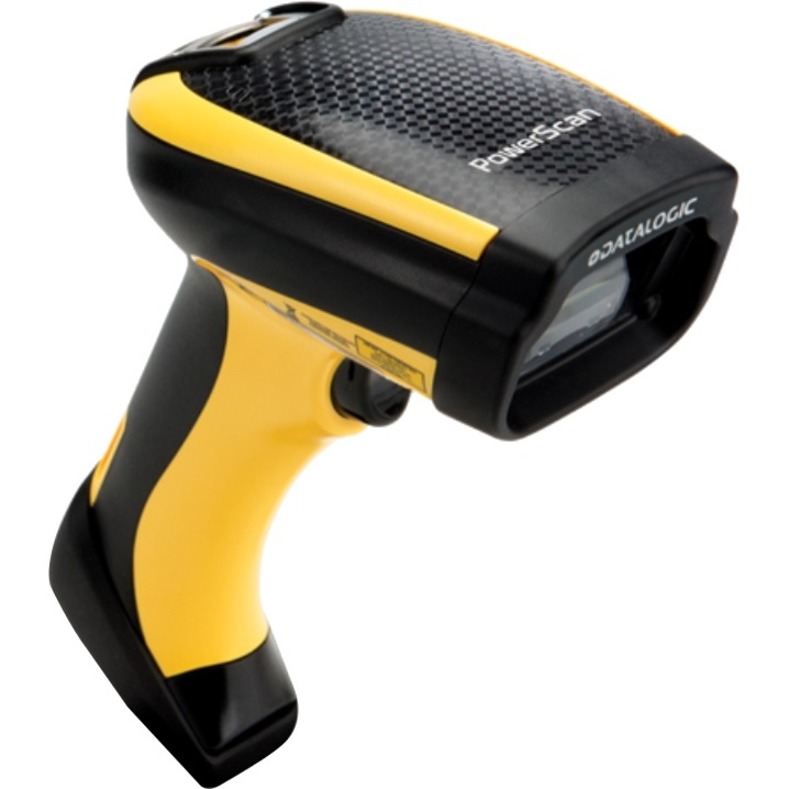

Product Name | PowerScan PM9501 Handheld Barcode Scanner |
Product Type | Barcode Scanner Kit |
Technical Information | |
Connectivity Technology | Wireless |
Scanning Capability | 2D |
Scanning Capability | 1D |
Barcode Symbology Supported | 1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D Codes:
|
Image Sensor Type | Imager |
Interfaces/Ports | |
Host Interface | Keyboard Wedge |
Host Interface | USB |
Host Interface | Serial |
Physical Characteristics | |
Form Factor | Handheld |
Product Color | Black |
Product Color | Yellow |
Weight (Approximate) | 15.52 oz |
