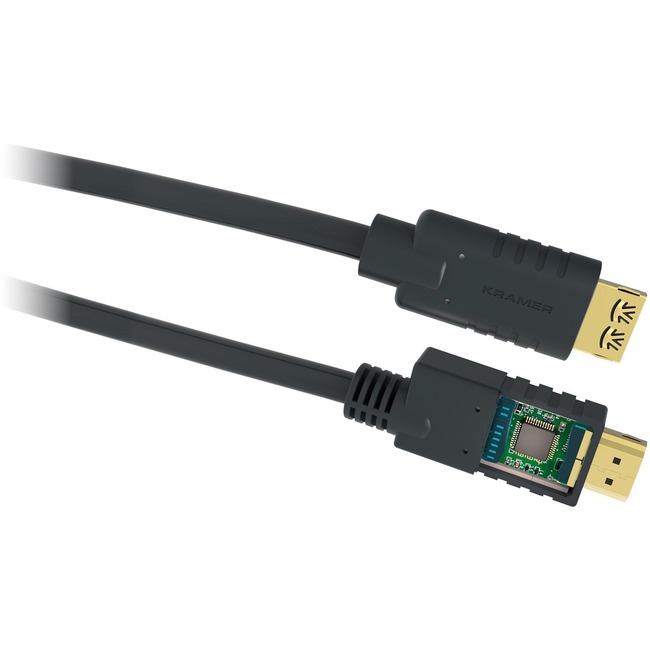

CA-HM active HDMI copper cable provides a perfect cable solution for delivering HDMI signals over long distances: 18Gbps up to 20m (66ft) and 10.2 Gbps up to 30m (98ft). The innovative technology utilized in the cable's connector features superior equalizing and signal compensation to meet the most demanding challenges in Pro AV installations.
This unique solution simplifies long distance installations by using a true plug & play cable that draws power from the HDMI source. There is no need for an external power source.
CA-HM features the Kramer exclusive K-Lock HDMI connector, that prevents cables in your installation from unintentionally disconnecting, eliminating cable-related service calls. Additionally, an LED on the connector indicates when the signal is transmitted successfully.
General Information | |
Manufacturer | Kramer Electronics LTD |
Manufacturer Part Number | 97-0142066 |
Manufacturer Website Address | http://www.kramerelectronics.com |
Brand Name | Kramer |
Product Series | CA-HM |
Product Model | CA-HM-66 |
Product Name | Active High Speed HDMI Cable With Ethernet |
Product Type | A/V Cable |
Technical Information | |
Cable Type | HDMI |
Cable Length | 65.62 ft |
Connector Type on First End | HDMI Type A Digital Audio/Video - Male |
Connector on First End Details | 1 x HDMI Type A Digital Audio/Video - Male |
Connector Type on Second End | HDMI Type A Digital Audio/Video - Male |
Connector on Second End Details | 1 x HDMI Type A Digital Audio/Video - Male |
Connector Plating | Gold |
Shielding | Yes |
Device Supported | Audio/Video Device |
American Wire Gauge | 24 AWG |
Data Transfer Rate | 18 Gbit/s |
Supported Resolution | 3840 x 2160 |
Features | Extended Display Identification Data (EDID) |
Features | Audio Return Channel (ARC) |
Features | K-Lock |
Features | Pull Resistant Connector |
Features | Consumer Electronics Control (CEC) |
Features | Active |
Features | EMI Protection |
Features | Corrosion Resistant |
Features | HDCP 2.2 |
Features | HDMI Ethernet Channel (HEC) |
Features | x.v.Color |
Features | Plug & Play |
Physical Characteristics | |
Product Color | Black |
Jacket Material | Polyvinyl Chloride (PVC) |
Miscellaneous | |
Country of Origin | China |
