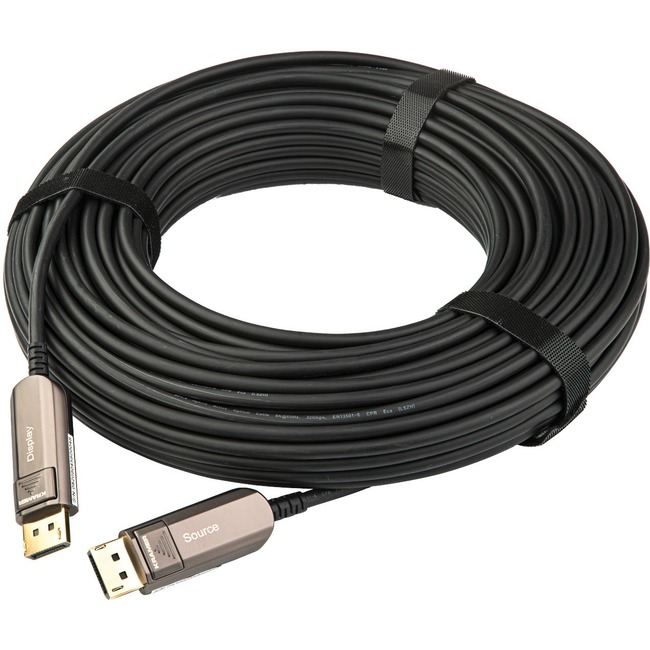

CLS-AOCDP/UF is a DisplayPort™ 1.4, 8K active optical cable (AOC) that features high resolution and data transfer rate. CLS-AOCDP/UF is thin and flexible and requires no external power. User experience is maximized with integrator-oriented features and the latest advances in DisplayPort1.4 technology.
- Latest DisplayPort Technology - Supports 3D, HDCP, EDID, HBR3, DSC, and 8K@60Hz resolution.
- Streamlines Installations - Supports up to 8K@60Hz over long cable runs of up to 100 meters without the need for an external power supply or additional extenders.
- High Data Transfer Rate - Up to 32.4Gbps data rate with 8.1Gbps/lane (HBR3) link rate.
- Supports up to 8 channels of 16 or 24bits linear PCM & 32 to 192KHz sampling rate.
- No External Power Needed - Powers the active units via the DisplayPort connector.
- Thin Construction - 4.8mm diameter.
- Safe Construction - Low smoke & halogen free.
- Compliance - RoHS 2011/65/EU compliant, CE/FCC.
Main Specification
| General Information | |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | 97-0415098 |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Brand Name | Kramer |
| Product Model | CLS-AOCDP/UF-98 |
| Product Name | Active Optical DisplayPort Cable |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | Hybrid Fiber Optic |
| Fiber Optic Mode | Multi-mode |
| Cable Length | 98 ft |
| Connector Type on First End | DisplayPort 1.4 Digital Audio/Video - Male |
| Connector on First End Details | 1 x DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.4 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Jacket Type | LSHF |
| Device Supported | Audio/Video Device |
| American Wire Gauge | 24/26/28 AWG |
| Data Transfer Rate | 32.4 Gbit/s |
| Supported Resolution | 7680 x 4320 |
| Features | HDCP 1.4 |
| Features | Extended Display Identification Data (EDID) |
| Features | Flexible |
| Features | Halogen Free |
| Features | DPCP |
| Features | Display Stream Compression (DSC) |
| Features | HDCP |
| Features | AOC Technology |
| Features | Bendable |
| Features | HDCP 2.2 |
| Physical Characteristics | |
| Jacket Color | Black |
| Product Material | PVC |
