SIMPLY NUC
SIMPLY NUC 91F-T715-091 NUC13ANFI3 CORE I3-1315U 8GB 256GB PCIE GEN 4 2280 M.2 SSD W11P
Mfg Part Number: 91F-T715-091 , Item #: 4899620
, PO and Wire.

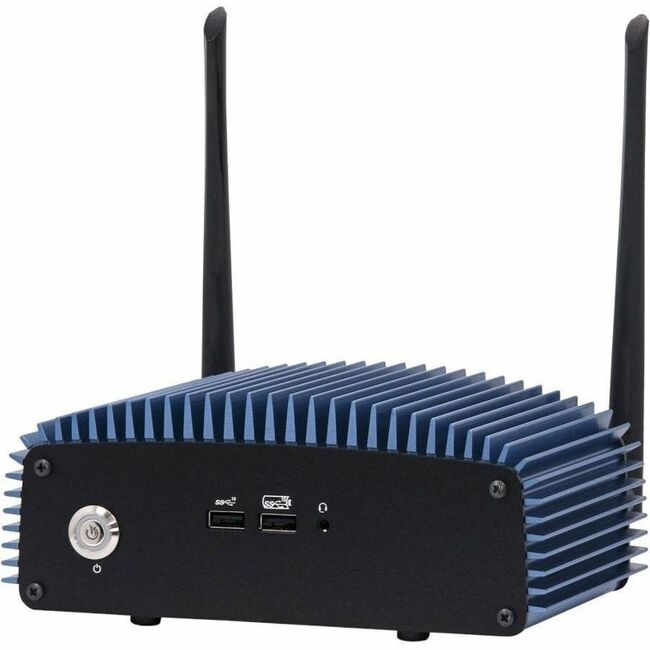

Top-Tier Performance in a Cool, Silent, and Small Form Factor
The NUC13ANFi3, Arena Canyon Porcoolpine, blends the power of Intel's 13th Gen Core i3-1315U Processor with the reliability of no moving parts in a robust and rugged fanless chassis, enabling use in harsher environments or a silent desktop experience. The Rugged NUC 13 Pro i3 delivers outsized performance in a small form factor with the latest in technology, from Intel's 13th Gen Raptor Lake processors to Thunderbolt 4 and Wi-Fi 6E, delivering top-tier performance for the office, field, and factory
Feature Rich and Adaptable
The Rugged NUC 13 Pro i3 is a feature-rich device with a plethora of I/O options, equipped with dual HDMI 2.1 ports, dual Thunderbolt 4, and four USB-A ports as standard. Further expand the functionality of your unit via the rear expansion panel, making the Arena Canyon Porcoolpine adaptable to your specific use case
| General Information | |
| Manufacturer | SimplyNUC |
| Manufacturer Part Number | 91F-T715-091 |
| Manufacturer Website Address | http://www.simplynuc.co.uk |
| Brand Name | SimplyNUC |
| Product Line | NUC 13 Pro |
| Product Model | NUC13ANFi3 |
| Product Name | NUC 13 Pro NUC13ANFi3 Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i3 |
| Processor Generation | 13th Gen |
| Processor Model | i3-1315U |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 1.30 GHz |
| Maximum Turbo Speed | 3.80 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 8 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 2 |
| Storage | |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | i226V |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports (Rear) | 1 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Number Of Ethernet Ports | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Form Factor | Small Form Factor |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
