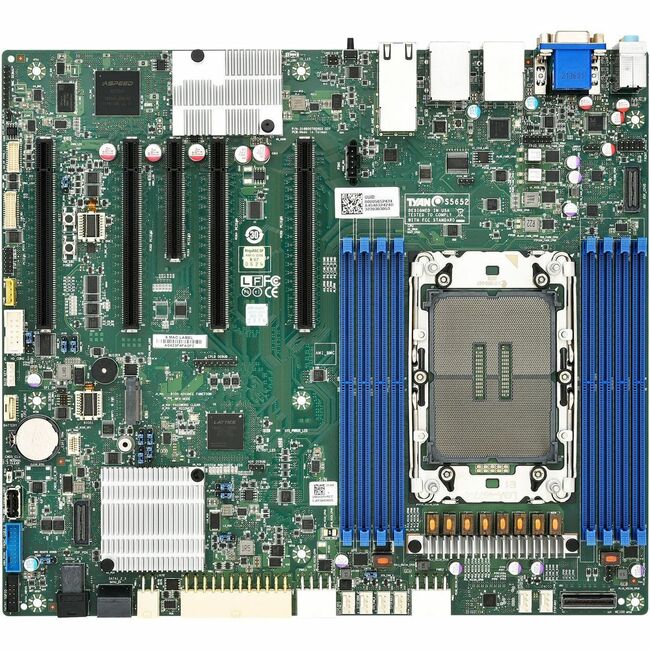

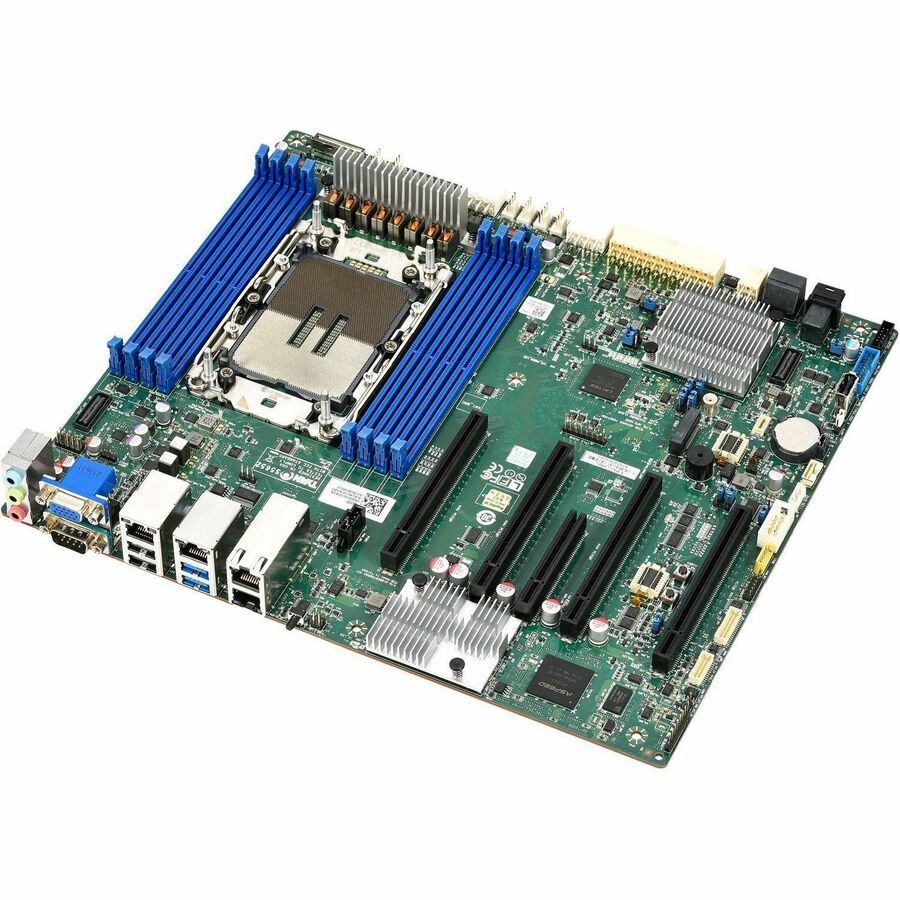

Tyan MB S5652AGM3NRE-2T C741 Xeon S4677 Max2048GB DDR5 SSI CEB compatible
Mfg Part Number: S5652AGM3NRE-2T , Item #: 4897626
Image may not reflect the actual item.
Price: $1,173.51
+ Free Shipping
Quantity:
In Stock: 1
Last Updated: Nov 21, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | S5652AGM3NRE2T |
| Manufacturer Website Address | http://www.tyan.com |
| Brand Name | Tyan |
| Product Line | Tempest HX |
| Product Model | S5652 |
| Product Name | Tempest HX S5652 Server Motherboard |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-4677 |
| Processor Generation Supported | 5th Gen |
| Processor Generation Supported | 4th Gen |
| Processor Supported | Xeon |
| Memory | |
| Number of Memory Slots | 8 |
| Memory Form Factor | RDIMM |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 5600 MHz |
| Memory Speed Supported | 4400 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 5 |
| RAID Levels | 1 |
| RAID Levels | 10 |
| RAID Levels | 0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | AST2600 |
| Audio | |
| Audio Channels | 2.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 5 |
| PCI Express Standard | PCI Express 5.0 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 4 |

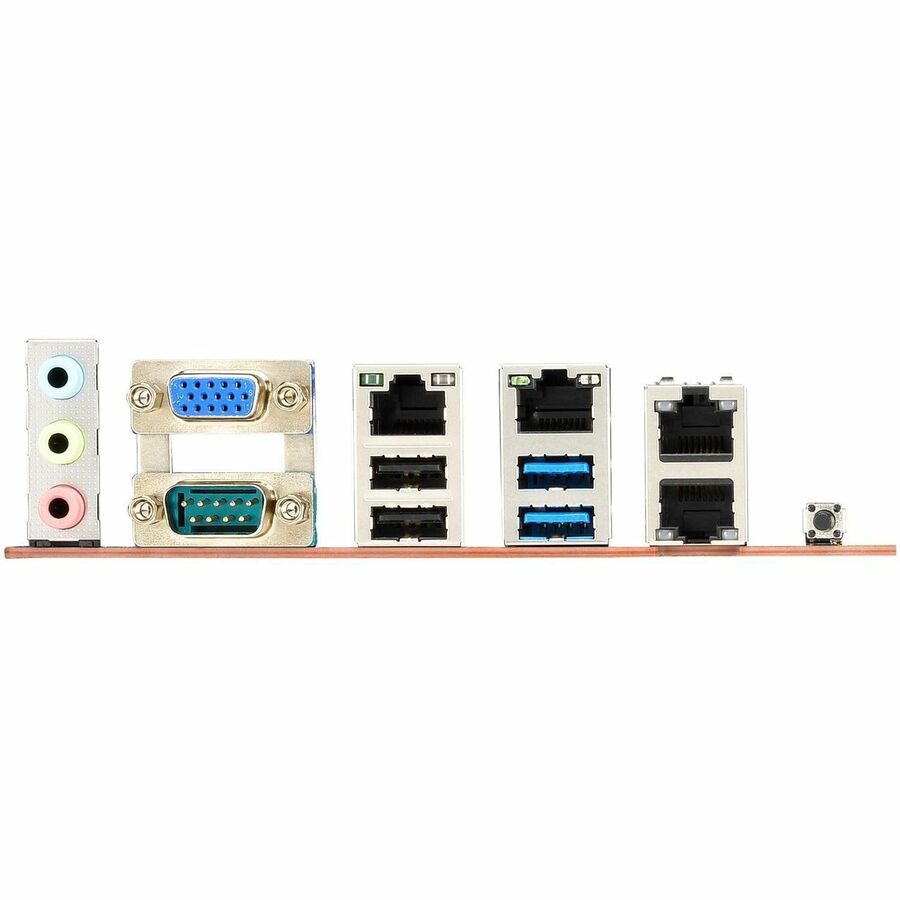

| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 2.0 Ports | 2 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 3 |
| Physical Characteristics | |
| Form Factor | SSI CEB |
| Width | 12" |
| Depth | 10.5" |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
