Digital Visual Interface (DVI) is the standard interface for high-performance connection between PCs and flat panel displays, CRT displays, projectors, and HDTV. This video cable is fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). Three analog 30 AWG coaxial lines enable high speed analog transmission.
Tri-shielded undermold with dual Mylar foil and braid shield protects against unwanted EMI/RFI interference. Each coax line is individually wrapped in foam-polyolefin insulation and overwrapped with a braided tinned copper shield. 28 AWG copper conductors are individually insulated in hard-density polypropylene to minimize crosstalk, and ensure high-speed, error-free transmission. Gold-plated contacts provide full conductivity with no data loss. PC and Mac compatible cable supports hot-plugging of DVI display devices. PC-99 color-coded: blue, white.
General Information | |
Manufacturer | C2G |
Manufacturer Part Number | 26958 |
Manufacturer Website Address | http://www.cablestogo.com |
Brand Name | C2G |
Product Model | 26958 |
Product Name | Video Cable |
Product Type | Video Cable |
Technical Information | |
Cable Type | DVI/VGA |
Cable Length | 3.28 ft |

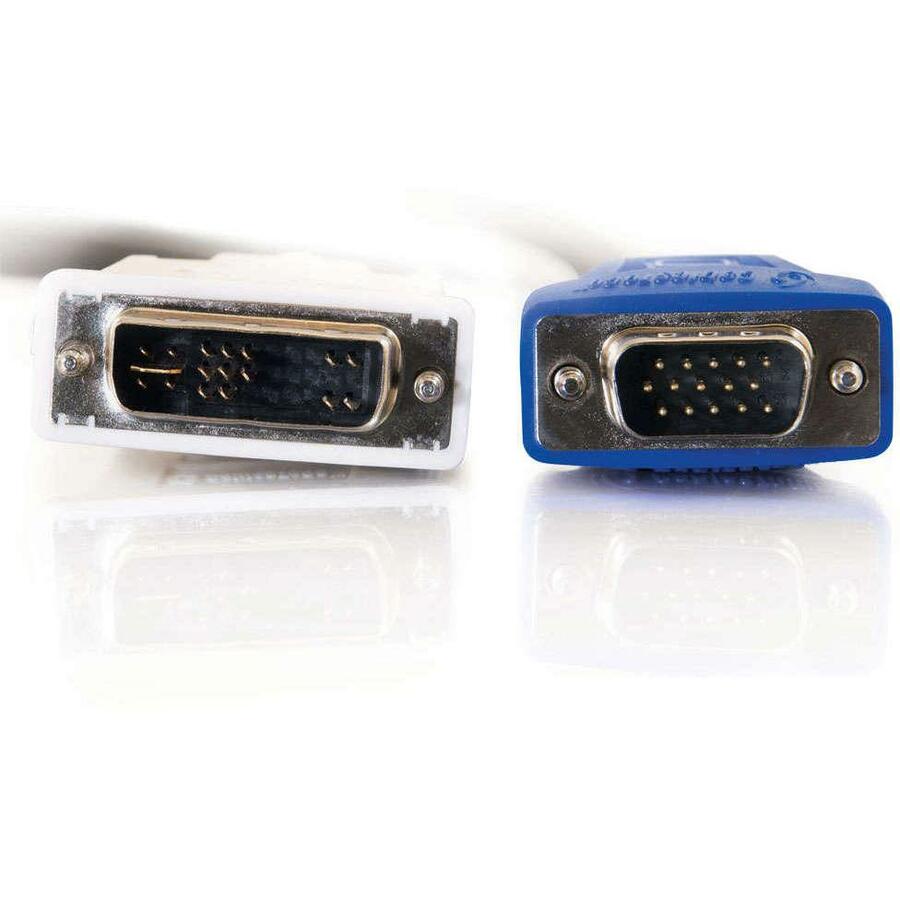

Connector Type on First End | DVI-I Digital Video - Male |
Connector on First End Details | 1 x 17-pin DVI-I Digital Video - Male |
Connector Type on Second End | HD-15 - Male |
Connector on Second End Details | 1 x 15-pin HD-15 - Male |
Contact Plating | Gold |
Shielding | Yes |
Device Supported | Projector |
Device Supported | TV |
Device Supported | Monitor |
Device Supported | Video Device |
Features | Molded |
Physical Characteristics | |
Product Color | Black |
Weight (Approximate) | 0.34 lb |
Miscellaneous | |
Environmentally Friendly | Yes |
Country of Origin | China |
Warranty | |
Limited Warranty | Lifetime |
