Make MTP/MPO your choice for high density fiber networks; it's specifically designed for fast ethernet, fiber channel, ATM and gigabit ethernet applications. Save time and money with MTP/MPO's increased ease of installation - simply pull one cable rather than twelve. Each MTP/MPO fiber assembly consists of twelve laser-optimized 10G 50/125µm multimode fibers under one PVC (OFNR-rated) jacket. With our MTP/MPO, it's possible to run a single cable that automatically terminates twelve fibers in one easy plug-in. Plus, the small form factor of an MTP/MPO connector provides a higher port density.
The LSZH jacket is composed from materials that lessen the smoke and halogen emissions when the cable is exposed to extreme temperatures.
This reduces the amount of harmful toxic and corrosive gases that cabling made with plastic materials would otherwise emit into the air during combustion. This construction makes LSZH cables ideal for use where the protection of people and equipment from harmful corrosive gases is absolutely critical.

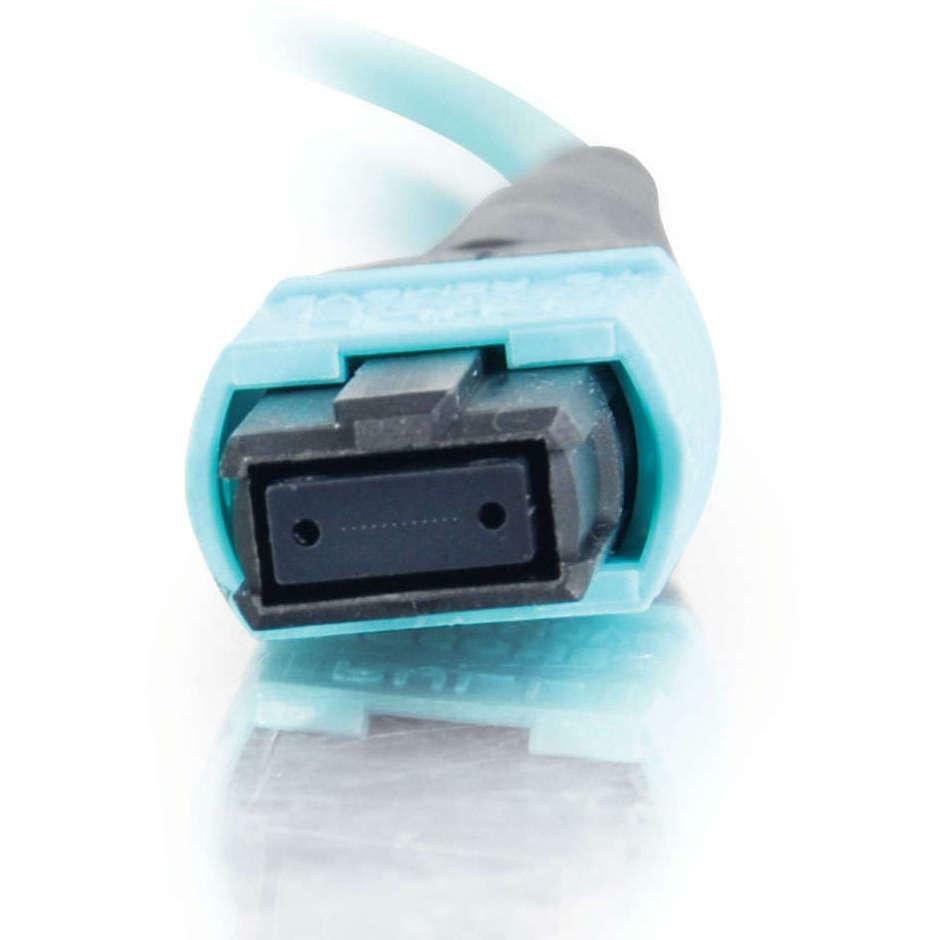

With its push-pull release mechanism, the MTP/MPO connector is easy to engage and disengage. Plus, its latch design prevents the plug from snagging when jumper cables are being routed. Straight-through pinning; immune to electrical interference.
General Information | |
Manufacturer | C2G |
Manufacturer Part Number | 35123 |
Manufacturer Website Address | http://www.cablestogo.com |
Brand Name | C2G |
Product Name | Fiber Optic Network Cable |
Product Type | Network Cable |
Technical Information | |
Cable Type | Fiber Optic |
Fiber Optic Mode | Multi-mode |
Core/Cladding Diameter | 50/125 µm |
Cable Length | 164.04 ft |
Connector Type on First End | MTP/MPO Network - Male |
Connector on First End Details | 1 x MTP/MPO Network - Male |
Connector Type on Second End | MTP/MPO Network - Male |
Connector on Second End Details | 1 x MTP/MPO Network - Male |
Device Supported | Network Device |
Data Transfer Rate | 10 Gbit/s |
Physical Characteristics | |
Product Color | Aqua |
Miscellaneous | |
Environmentally Friendly | Yes |
Warranty | |
Limited Warranty | Lifetime |
