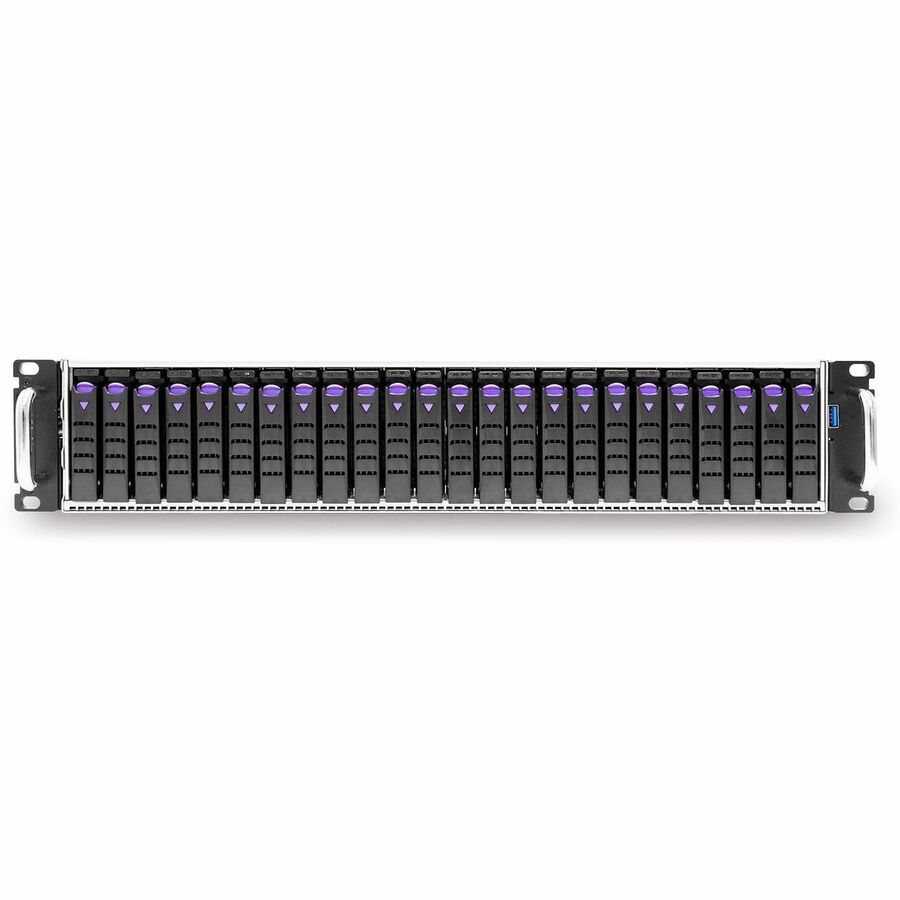

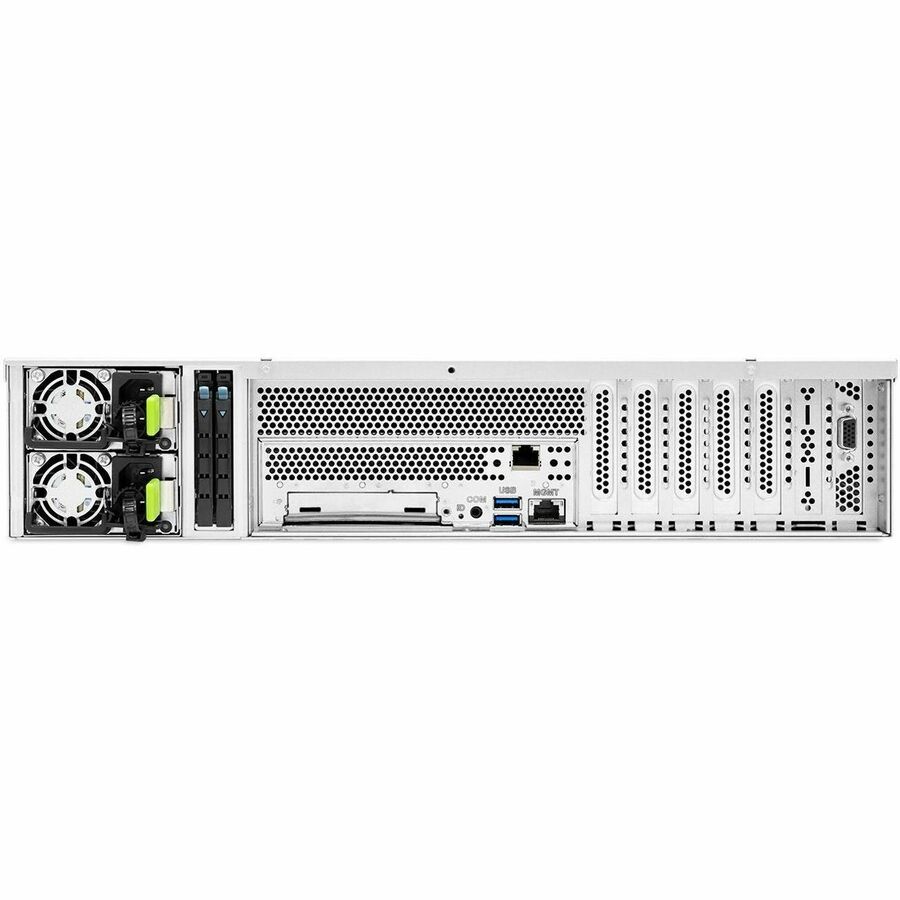

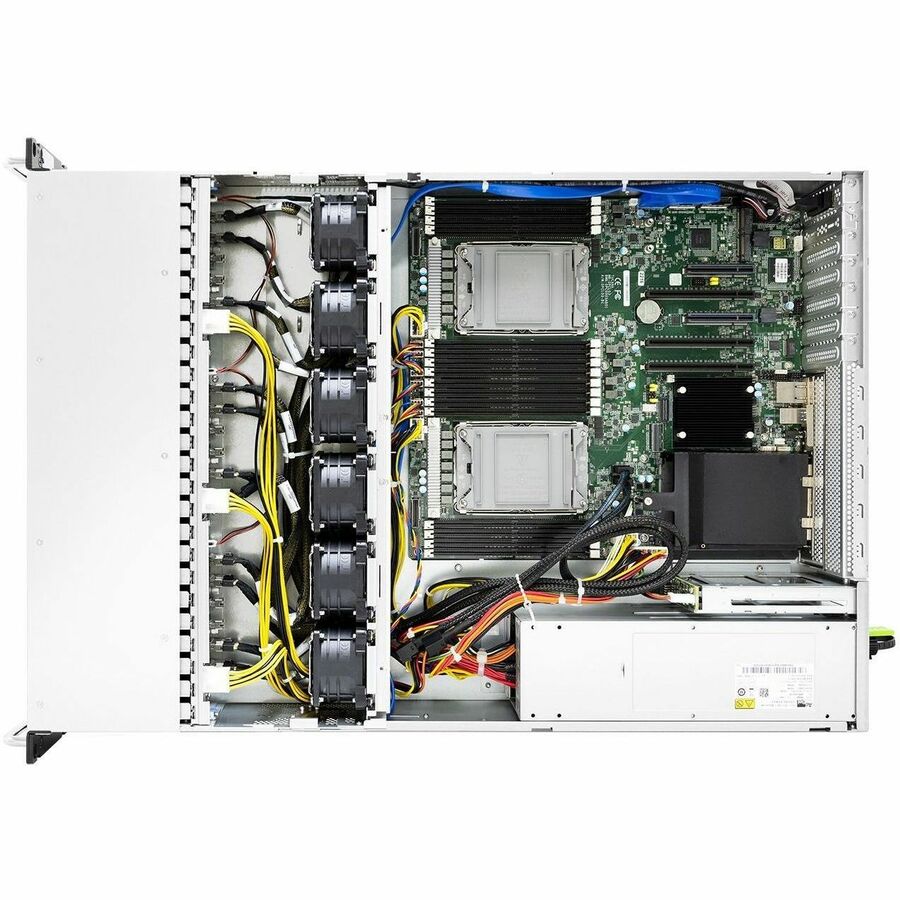

AIC (ADVANCED INDUSTRIAL COMPUTER) AIC Server XP1-S201TU05 2U Xeon 24x2.5NVMe 2x2.5SATA HS 1200W Retail
Mfg Part Number: XP1-S201TU05 , Item #: 4842173
Image may not reflect the actual item.
Price: $5,734.39
+ Free Shipping
Quantity:
More to Come
Last Updated: Dec 13, 2025
No Sales Tax except these states
, PO and Wire.
SB201-TU, a 2U 24-bay high-density storage server solution. It supports 3rd Gen Intel® Xeon® Scalable Processors with PCIe 4.0 extension design. It has Front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions and Onboard Baseboard Management Controller for system management and IPMI control.
Main Specification
| General Information | |
| Manufacturer | Advanced Industrial Computer, Inc |
| Manufacturer Part Number | XP1S201TU05 |
| Manufacturer Website Address | http://www.aicipc.com |
| Brand Name | AIC |
| Product Model | SB201-TU |
| Product Name | SB201-TU Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4189 |
| Processor Supported | Xeon Gold |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Platinum |
| Processor Supported | Xeon Silver |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 16 |
| Intel Optane Memory Ready | Yes |
| Storage | |
| Supported Storage Drive Interfaces | PCI Express NVMe |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Types | SSD |
| Supported Storage Drive Types | HDD |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 26 |
| Total Number of Expansion Slots | 6 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 3 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of SATA Interfaces | 10 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1200 W |
| Thermal Design Power | 270 W |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.5" |
| Width | 17" |
| Depth | 25.4" |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
