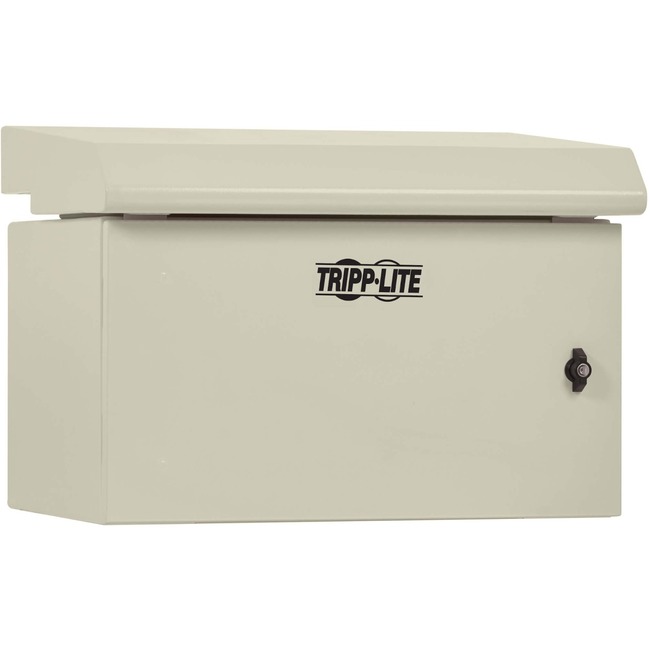

Locking metal enclosure protects your rack-mount equipment against theft, damage, tampering, and excess moisture and debris.
Features | Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 28 in. Deep This SmartRack® industrial enclosure is designed to house 6U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable gray powder-coated finish, the SRN3RG6US has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.
NEMA 3R Enclosure Designed for Protection Against Harsh Elements The SRN3RG6US protects its contents against the ingress of water (including rain, sleet and snow), solid foreign objects (including falling dirt) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.
Locks and Hinged Back Allow Easy Authorized Access to Equipment and Cabling The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering and unauthorized access. The enclosure swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.
Easy Enclosure and Equipment Installation This 6U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 28 inches deep. Hardware for mounting equipment inside the enclosure is included. Built-in fans help keep mounted equipment cool and lasting longer.
Main Specification
General Information |
Manufacturer |
Tripp Lite by Eaton |
Manufacturer Part Number |
SRN3RG6US |
Manufacturer Website Address |
https://tripplite.eaton.com/ |
Brand Name |
Tripp Lite by Eaton |
Product Line |
SmartRack |
Product Model |
SRN3RG6US |
Product Name |
SRN3RG6US Industrial Enclosure |
Product Type |
Rack Mount Enclosure |
Technical Information |
Rack Type |
Enclosed Cabinet |
Application/Usage |
Patch Panel |
Application/Usage |
LAN Switch |
Application/Usage |
PDU |
Application/Usage |
Computer |
Application/Usage |
Server |
Application/Usage |
UPS |
Application/Usage |
DVR |
Features |
Snow Resistant |
Features |
Tamper Resistant |
Features |
Cable Management |
Features |
Anti-theft |
Features |
Damage Resistant |
Features |
Lockable Door |
Features |
Moisture Resistant |
Features |
Debris Resistant |
Features |
Adjustable Mounting Rails |
Features |
Rain Resistant |
Power Description |
Plug/Connector Type |
NEMA 5-15P |
Physical Characteristics |
Form Factor |
Wall Mountable |
Color Family |
Gray |
Product Color |
Gray |
Product Material |
Metal |
Product Material |
Powder Coated Steel |
Maximum Weight Capacity |
200 lb |
Static/Stationary Weight Capacity |
200 lb |
Height |
18" |
Width |
25.2" |
Depth |
32.1" |
Rack Height |
6U |
Rack Depth |
28" |
Weight (Approximate) |
116.20 lb |
Miscellaneous |
Package Contents |
- SRN3RG6US Industrial Enclosure
- 24 x 10-32 Screws
- 24 x M6 Washers
- 4 x LDPE Sheet Metal Plugs
- 4 x M10 Foam Washers
- 2 x Keys
- Owner's Manual
|
Assembly Required |
No |
Environmentally Friendly |
Yes |
Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
Environmental Compliance |
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Warranty |
Limited Warranty |
5 Year |
