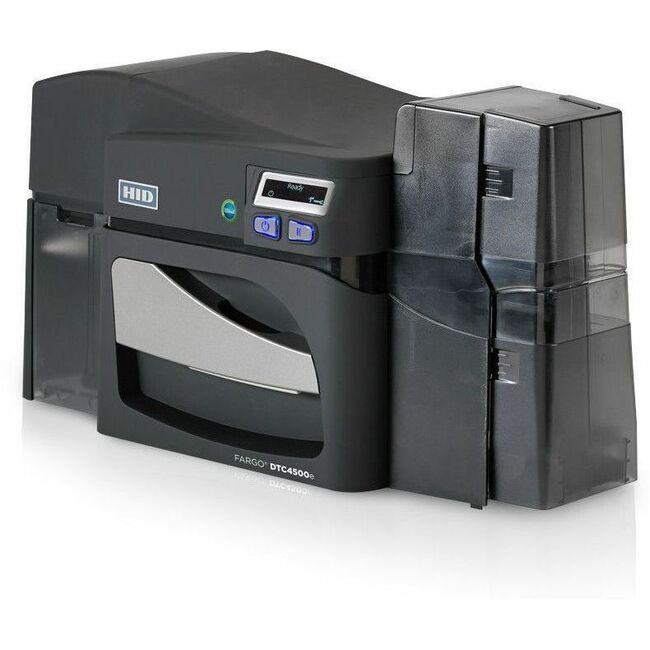

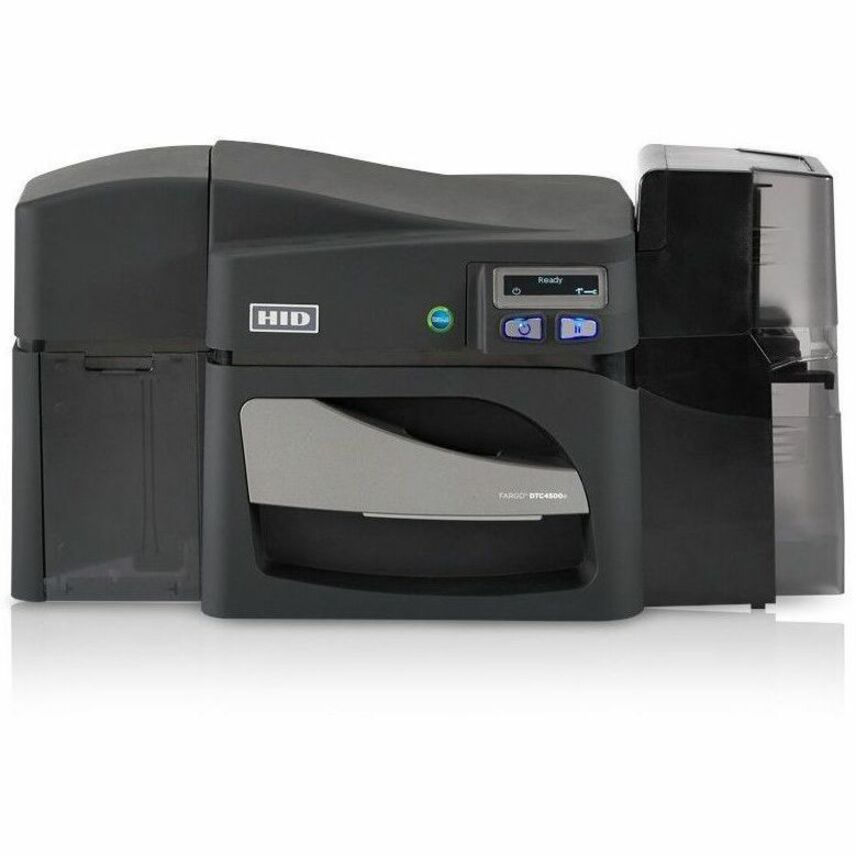

The HID® FARGO® DTC4500e ID card printer is ideal for organizations requiring robust, high-volume printing every day. Standard features include high-capacity ribbon consumables and dual input card hoppers that allow for maximum card input capacity and the convenient management of multiple card types.
Designed for medium-to-large businesses, schools and local governments seeking higher-volume, direct-to-card printing, the DTC4500e offers a powerful and reliable print engine that delivers on both speed and performance. Dual input hoppers and support for high-capacity ribbons enable the DTC4500e to print twice as many full-color cards than most comparable printers before consumables would require replenishing - keeping productivity high and operator maintenance low.
Powerful, secure, versatile and eco-friendly, the DTC4500e is an ideal solution for organizations seeking to print superior-quality cards and IDs in higher volumes.
| General Information | |
| Manufacturer | HID Global Corporation |
| Manufacturer Part Number | 055328 |
| Manufacturer Website Address | http://www.hidglobal.com |
| Brand Name | Fargo |
| Product Series | DTC4000 |
| Product Model | DTC4500E |
| Product Name | DTC4500e ID Card Printer & Encoder |
| Product Type | Dye Sublimation/Thermal Transfer Printer |
| Technical Information | |
| Recommended Use | Card Print |
| Print Color Capability | Color |
| Printing Capability | Single Sided |
| Maximum Mono Print Speed | 6 Second |
| Maximum Color Print Speed | 16 Second |
| Maximum Print Resolution (dpi) | 300 |
| Application/Usage | Desktop |
| Features | Magnetic Stripe Encoder |
| Features | AES 256 Encryption |
| Features | Contactless Smart Card Encoder |
| Features | Contact Chip Encoder |
| Printing Color | Yellow |
| Printing Color | Cyan |
| Printing Color | Magenta |
| Print Technology | Dye Sublimation/Thermal Transfer |
| Memory | |
| Standard Memory | 32 MB |
| Interfaces/Ports | |
| USB Host | Yes |
| USB | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| Media Types & Handling | |
| Media Type | PVC Card |
| Media Type | Optical Media Card |
| Media Type | Polyester Card |
| Media Type | Adhesive Backed Card |
| Media Size | 2.06" x 3.31" - CR79 Card |
| Media Size | 2.13" x 3.38" - CR-80 Card |
| Media Load Type | Auto Feed |
| Media Thickness | 40 mil |
| Software | |
| Operating System Supported | Windows:
|
| Power Description | |
| Power Source | AC Supply |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Environmental Conditions | |
| Operating Temperature | 80°F (26.7°C) - 65°F (18.3°C) |
| Operating Relative Humidity | 20% - 80% |
| Physical Characteristics | |
| Height | 9.8" |
| Width | 18.1" |
| Depth | 9.2" |
| Weight (Approximate) | 9 lb |
| Miscellaneous | |
| Platform Supported | PC |
| Certifications & Standards |
|
| Warranty | |
| Limited Warranty | 3 Year |
