SHUTTLE CUBE SW580R8 BAREBONE W580 CHIPSET NO CPU/RAM/HDD/SSD/OS
Mfg Part Number: SW580R8 , Item #: 4772090
, PO and Wire.
14-LITER CUBE FOR SERVER AND WORKSTATION APPLICATIONS

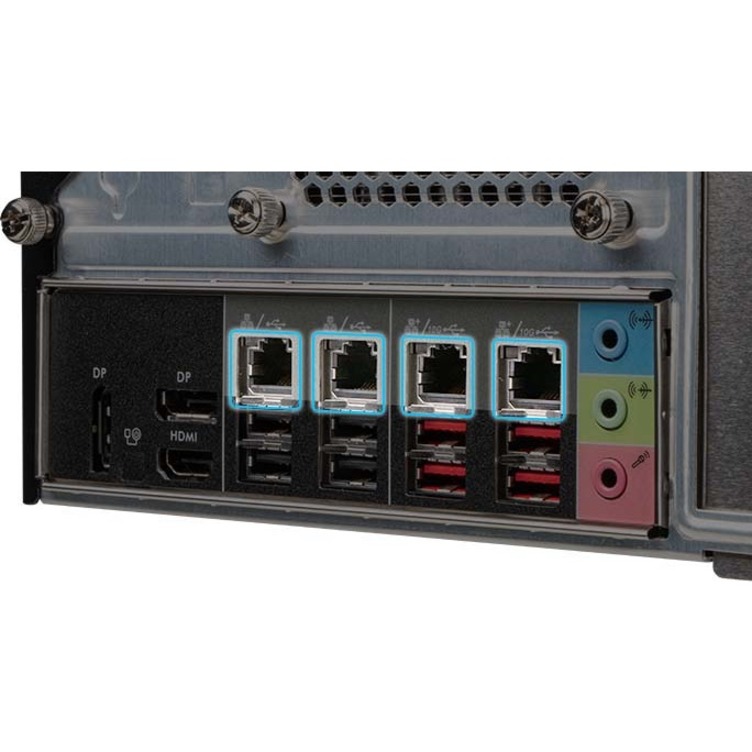

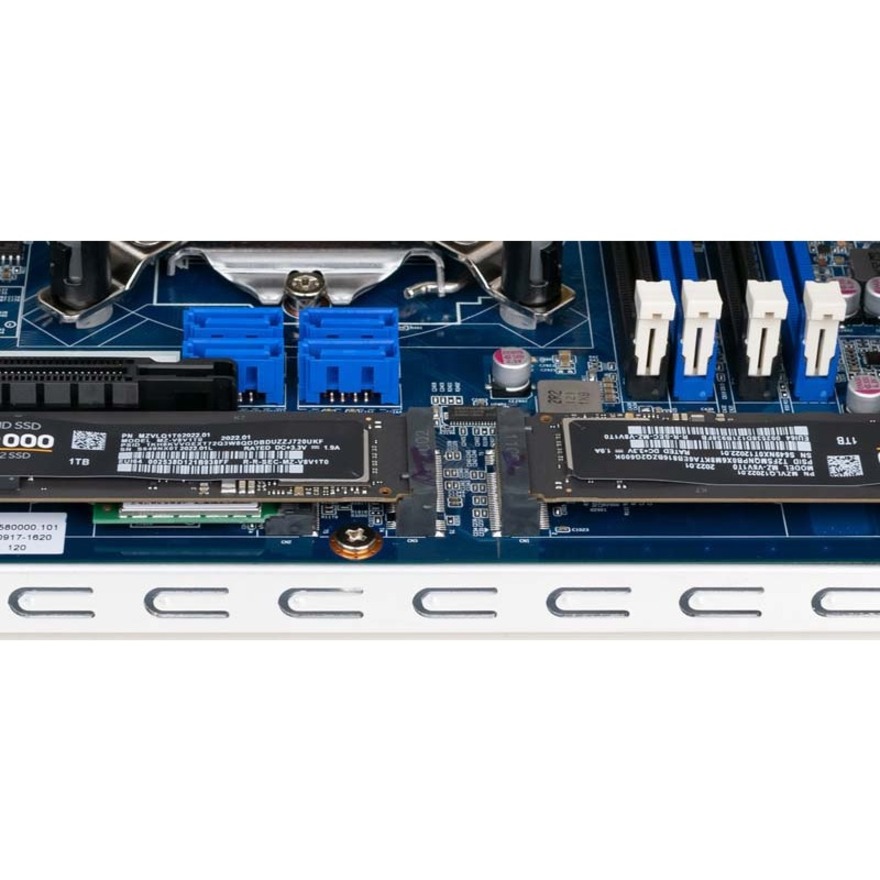

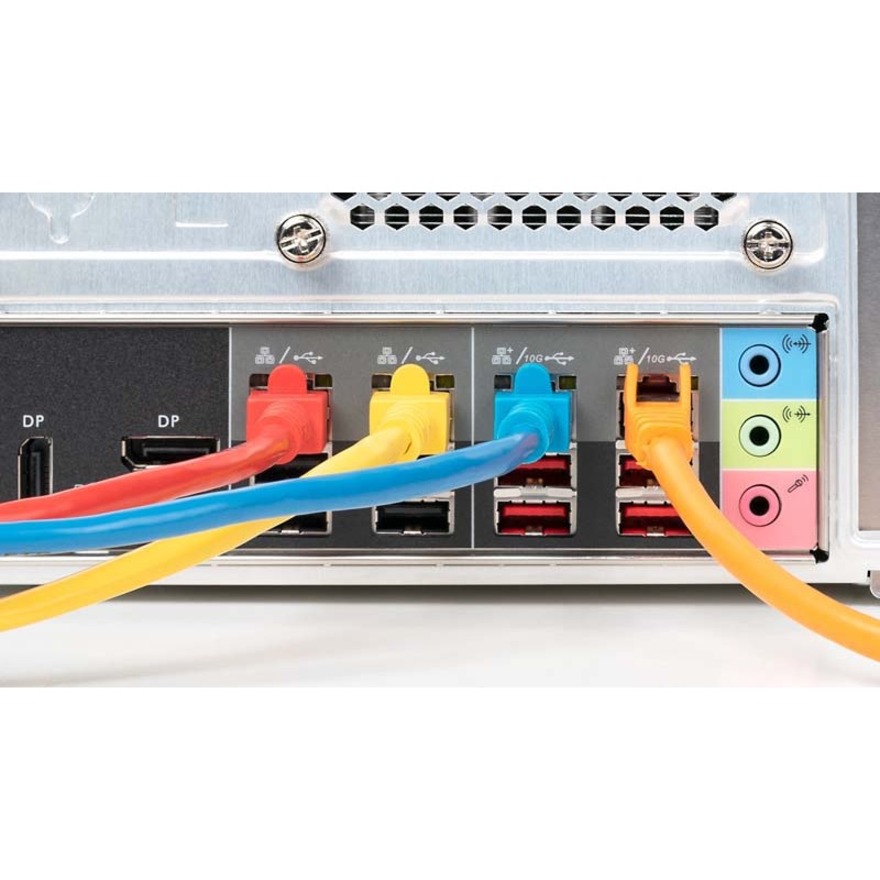

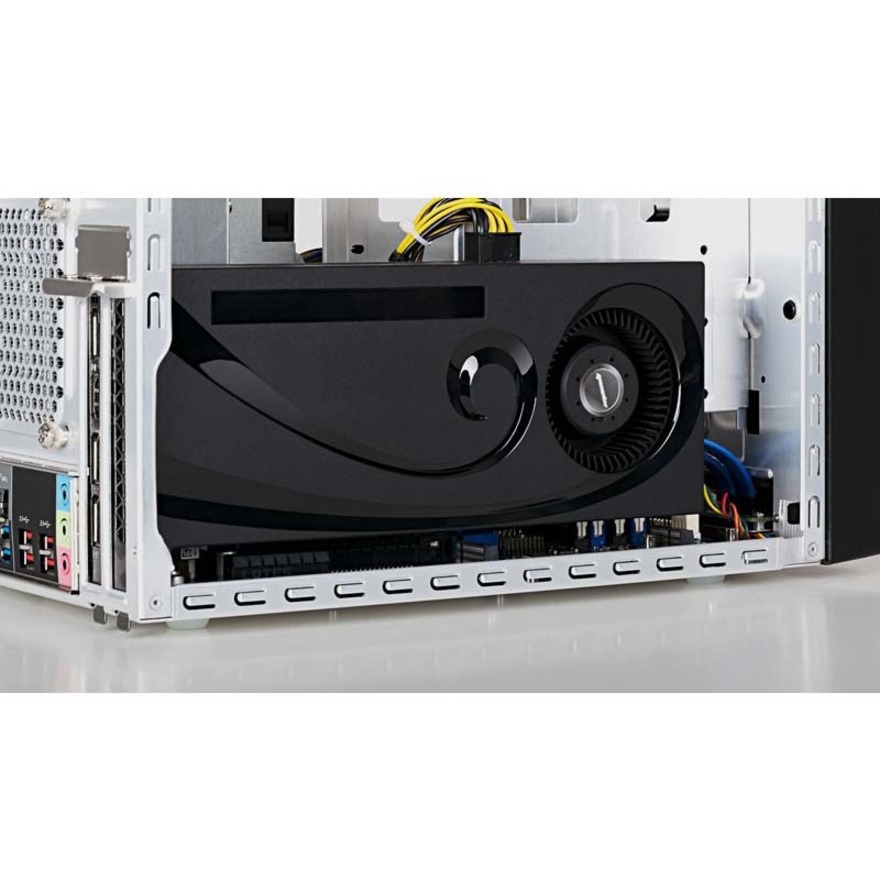

Like its sister model SH570R8, the Shuttle XPC Barebone SW580R8 supports 10th/11th generation Intel Core processors, four large 3.5" hard disks with Raid function, 128 GB DDR4-3200 RAM and dual-slot graphics cards. In addition, the SW580R8 also accepts Xeon W-series processors featuring ECC and vPro for more system stability and remote management options. It also offers four network ports for the first time (two of them with 2.5 GBit/s), a second M.2 slot for SSD cards and a TPM security chip. Such impressive per- formance and range of features in an aluminum chassis with a volume of only 14 liters makes SW580R8 the ideal platform for demanding mini-server and workstation PCs with top reliability even under heavy load.
| General Information | |
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | SW580R8 |
| Manufacturer Website Address | http://www.us.shuttle.com |
| Brand Name | Shuttle |
| Product Line | XPC cube |
| Product Model | SW580R8 |
| Product Name | BAREBONE XPC cube SW580R8 |
| Product Type | Barebone System |
| Processor | |
| Processor Socket | Socket LGA-1200 |
| Processor Supported | Core i9 |
| Processor Supported | Core i7 |
| Processor Supported | Core i3 |
| Processor Supported | Celeron |
| Processor Supported | Pentium Gold |
| Processor Supported | Core i5 |
| Processor Supported | Xeon |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W580 |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 4 |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA III |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 13 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Number of Onboard USB 2.0 Ports | 1 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | USB 3.2 Gen Type-C port (5 Gbps) |
| Number of SATA Interfaces | 4 |
| Operating System | |
| Operating System Supported | Windows 10 |
| Operating System Supported | Windows 11 |
| Operating System Supported | Linux |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Maximum Power Supply Wattage | 500 W |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black Aluminum |
| Height | 7.5" |
| Width | 8.5" |
| Depth | 13.1" |
| Weight (Approximate) | 7.72 lb |
| Miscellaneous | |
| Application/Usage | Business |
| Energy Star | Yes |
