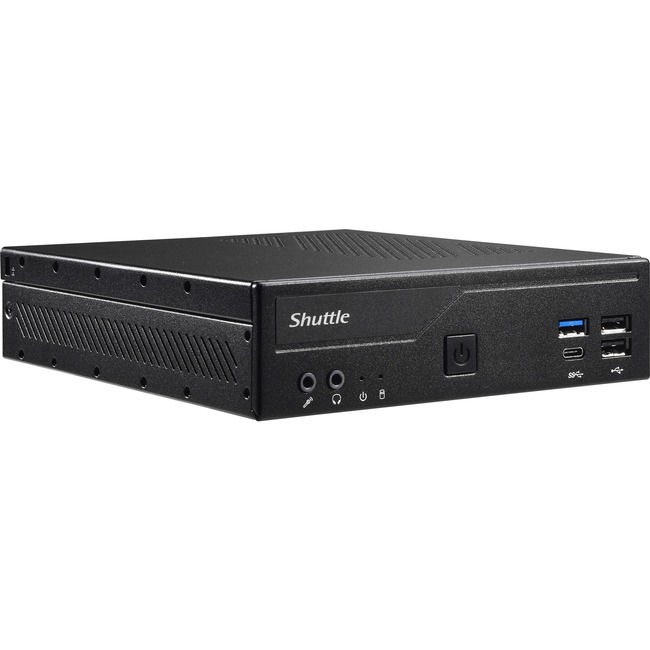

Robust 1.3-litre Slim PC supports Intel Core Gen. 12 processors "Alder Lake-S" and two UHD displays
The Shuttle XPC slim Barebone DH610 with H610 chipset houses the performance of Intel's 12th generation Core desktop processors (codenamed Alder Lake-S) for socket LGA1700 in a compact 1.3-litre format. The DH610 allows for three Ultra HD displays to be operated at the same time via 1x HDMI and 2x DisplayPort. It also offers Dual Intel LAN (one supports 2.5G speed), eight USB ports and two COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
General Information | |
Manufacturer | Shuttle, Inc |
Manufacturer Part Number | DH610 |
Manufacturer Website Address | http://www.us.shuttle.com |
Brand Name | Shuttle |
Product Line | XPC slim |
Product Model | DH610 |
Product Name | XPC slim DH610 Barebone System |
Product Type | Barebone System |
Processor | |
Number of Processors Supported | 1 |
Processor Socket | Socket LGA-1700 |
Processor Supported | Core i5 |
Processor Supported | Core i3 |
Processor Supported | Celeron |
Processor Supported | Core i7 |
Processor Supported | Pentium Gold |
Processor Supported | Core i9 |
Chipset | |
Chipset Manufacturer | Intel |
Chipset Model | H610 |
Memory | |
Maximum Memory Supported | 64 GB |
Memory Technology | DDR4 SDRAM |
Memory Standard | DDR4-3200/PC4-25600 |
Number of Total Memory Slots | 2 |
Controllers | |
Controller Type | Serial ATA/600 |
Display & Graphics | |
Graphics Controller Manufacturer | Intel |
Graphics Controller Model | HD Graphics |
Graphics Memory Technology | DDR4 SDRAM |
Graphics Memory Accessibility | Shared |
Network & Communication | |
Ethernet Technology | Gigabit Ethernet |
Ethernet Technology | 2.5 Gigabit Ethernet |
I/O Expansions | |
Number of Total Expansion Bays | 1 |
Number of Internal 2.5" Bays | 1 |
Interfaces/Ports | |
HDMI (Rear) | Yes |
Total Number of USB Ports | 8 |
Number of USB 3.2 Gen 1 Ports | 3 |
USB Type-C (Front) | Yes |
USB Type-C Detail | 1 x USB 3.2 Gen 1 Type-C |
Operating System | |
Operating System Supported | Windows 10 x64 |
Operating System Supported | Windows 11 x64 |
Operating System Supported | Linux |
Power Description | |
Input Voltage | 120 V AC |
Input Voltage | 230 V AC |
Maximum Power Supply Wattage | 120 W |
Physical Characteristics | |
Product Color | Black |
Form Factor | Slim PC |
Height | 1.7" |
Width | 6.5" |
Depth | 7.5" |
Weight (Approximate) | 2.87 lb |
Miscellaneous | |
Package Contents |
|
Energy Star | Yes |
Environmentally Friendly | Yes |
