Overview

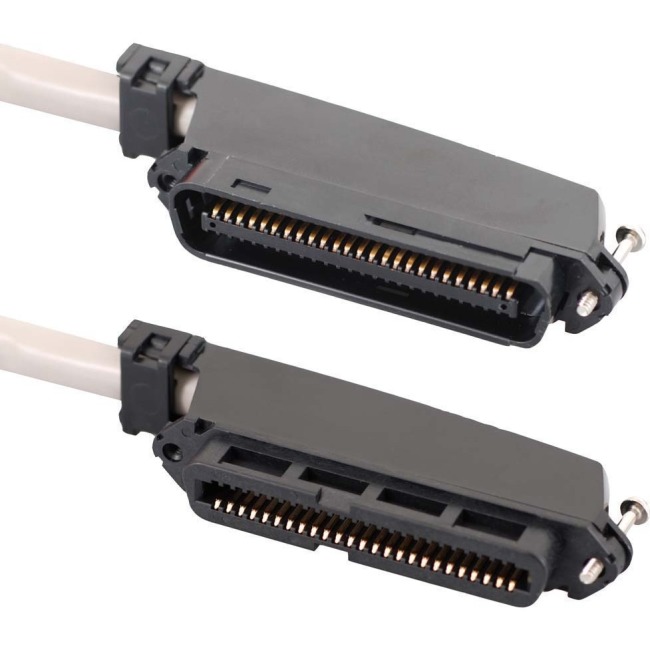

The female-to-male 25-pair Telco Cable Assembly provides connectivity for voice and data applications. It can be used on patch panels, punch down boxes, distribution boxes, and ICC's 66 and 110 wiring blocks.
Features
General Information | |
Manufacturer | ICC |
Manufacturer Part Number | ICPCSTFM25 |
Manufacturer Website Address | http://www.icc.com |
Brand Name | ICC |
Product Name | Cat.3 Extension Cable |
Packaged Quantity | 1 |
Product Type | Network Cable |
Technical Information | |
Cable Type | Category 3 |
Cable Characteristic | Extension Cable |
Cable Length | 25 ft |
Connector Type on First End | Telco Network - Male |
Connector on First End Details | 1 x 50-pin Telco Network - Male |
Connector Type on Second End | Telco Network - Female |
Connector on Second End Details | 1 x 50-pin Telco Network - Female |
Contact Plating | Gold |
Shielding | No |
Jacket Type | CMR |
Device Supported | Network Device |
American Wire Gauge | 24 AWG |
Features | Right-angled Connector |
Physical Characteristics | |
Connector Color | Black |
Product Material | Thermoplastic |
Product Material | Copper |
Contact Material | Copper Alloy |
Insulation Material | Polyvinyl Chloride (PVC) |
Jacket Material | Polyvinyl Chloride (PVC) |
Miscellaneous | |
Environmentally Friendly | Yes |
Country of Origin | China |
Warranty | |
Limited Warranty | 3 Year |
