CYBERPOWER

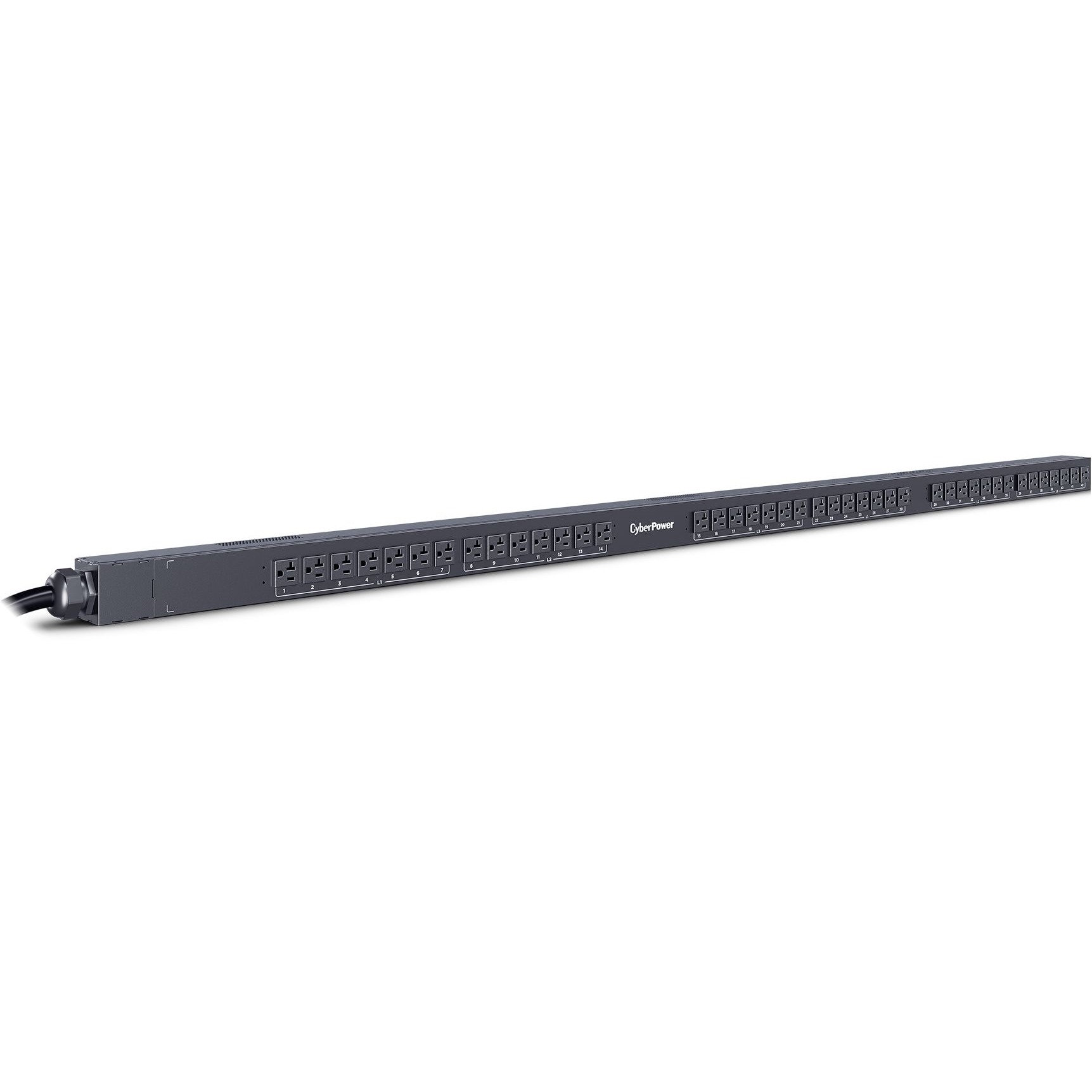

CYBERPOWER 3 PHASE PDU13101 42-OUT NEMA L21-20P

Mfg Part Number:  PDU13101
Image may not reflect the actual item.
Price: $451.40 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Apr 07, 2026
No Sales Tax except these states
, PO and Wire.

Deliver reliable unfiltered power to connected equipment with the CyberPower PDU13101 basic 3-Phase PDU. Designed for data centers and other electrically demanding applications, this unit features rugged, industrial-grade metal housing, network-grade outlets and operates in high temperatures up to 140°F (60°C).

The PDU13101 supports a 208V 20A input, includes 42 outlets, and provides a maximum output load of 5.7kW. The CyberPower PDU13101 is protected by a three-year limited warranty.

More from the Manufacturer

Main Specification
General Information
Manufacturer CyberPower Systems, Inc
Manufacturer Part Number PDU13101
Manufacturer Website Address https://www.cyberpowersystems.com/
Brand Name CyberPower
Product Model PDU13101
Product Name PDU13101 3 Phase 120 VAC 20A Basic
Product Type PDU
Technical Information
PDU Type Basic
Phase Three Phase
Plug/Connector Type NEMA L21-20P
Receptacle Type NEMA 5-20R
Receptacle Detail 42 x NEMA 5-20R
Power Description
Input Voltage 230 V AC
Output Voltage 120 V AC
Power Rating (Watt) 5700 W
Input Current 20 A
Physical Characteristics
Color Family Black
Product Color Black
Mounting Orientation Vertical
Mount Type Rack-mountable
Rack Height 0U
Height 70.5"
Width 2.2"
Depth 2.2"
Weight (Approximate) 12.10 lb
Miscellaneous
Package Contents
  • PDU13101 42-Outlets PDU
  • Adjustable Mounting Brackets
Additional Information
  • Physical Dimensions - (WxHxD) (cm) : 5.59 x 179.07 x 5.59 (cm)
  • Physical Dimensions - (WxHxD) (in) : 2.2 x 70.5 x 2.2 (in)
  • Physical Dimensions - (WxHxD) (mm) : 56 x 1791 x 56 (mm)
  • Weight (kg) : 5.49
  • Weight (lb) : 12.1
  • Shipping Dimensions - (WxHxD) (cm) : 201.3 x 15.24 x 17.15 (cm)
  • Shipping - Dimensions (WxHxD, in) : 79.25 x 6 x 6.75 (in)
  • Shipping - Dimensions (WxHxD, mm) : 2012.95 x 152.4 x 171.45 (mm)
  • Shipping - Weight (kg) : 8.89
  • Shipping - Weight (lb) : 19.6
  • Cord Length : 10 ft (3.0 m)
  • Derated Input Current : 16 A
  • Input Frequency Range : 50 Hz - 60 Hz
  • Input Plug Type : NEMA L21-20P
  • Maximum Input Current : 20A
  • Nominal Input Voltage : 208 VAC
  • Phase : 3 Phase
  • Nominal Output Voltage : 120 VAC
  • Outlets - Total : 42
  • Outlet Type COMPUTED : 42 - NEMA 5-20R
  • Overload Protection : None
  • Adjustable Mounting Brackets : 1 set
  • Color : Black
  • Cord Retention Tray/Cord Organizers : Yes
  • Form Factors Supported : 0U Vertical Rackmount
  • Material of Construction : Metal
  • Rack Height : 0U
  • Operating Elevation : 0 - 11480 ft (0 - 3499 m)
  • Operating Relative Humidity : 0 - 95 % (non-condensing)
  • Operating Temperature : 23 - 140 °F (-5 - 60 °C)
  • Environmental : RoHS Compliant
  • Safety : UL60950-1|FCC Class A|CB
  • Product Warranty : 3 Year Limited Warranty
    		•
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty 3 Year
