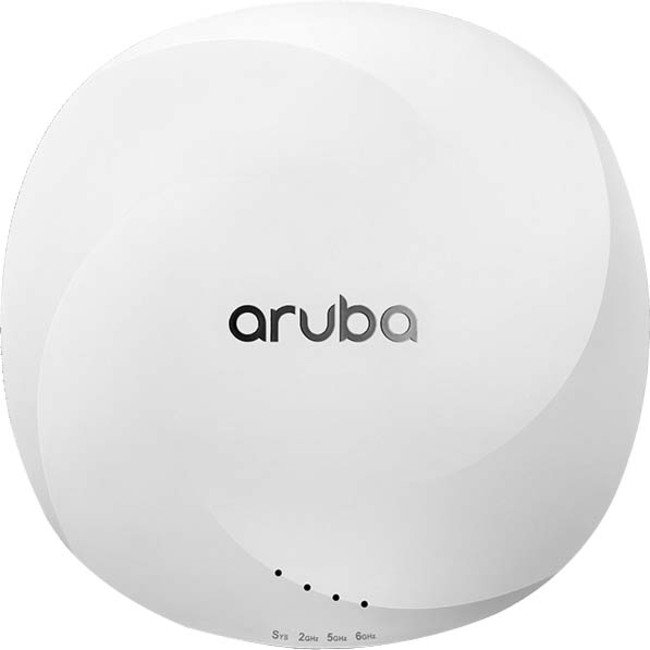

HPE R7J50A ARUBA AP-615 (US) CAMPUS AP

For enterprises who need more wireless capacity and/or wider channels, Aruba 610 Series Campus APs are designed to take advantage of the newly available 6 GHz spectrum using a unique dual-radio/tri-band architecture. Adding support for the 6 GHz band to the traditional 2.4 GHz and 5 GHz bands more than doubles the available wireless capacity in a wireless network - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices, and growth in cloud.

Unique to Aruba, the 610 Series features two radios that can be tuned to any two of the three available spectrum bands for Wi-Fi (2.4 GHz, 5 GHz, 6 GHz). This flexibility provides a cost-effective and compact platform that delivers full tri-band coverage as part of a multi-AP deployment and can be used with software that will intelligently and flexibly configure the radios of each of these dual-radio APs.

More capacity and wider channels

The Aruba 610 Series APs are designed to take advantage of Wi-Fi 6E and the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. Its two 2x2 MIMO radios deliver a combined peak data rate of up to 3.6 Gbps when configured for concurrent 5 GHz and 6 GHz operation.

Advantages of 6 GHz

Wi-Fi 6E provides up to 1200 MHz of additional unlicensed spectrum in the 6 GHz band for higher throughput and improved application performance. With up to seven 160 MHz channels, Wi-Fi 6E can better support low-latency, bandwidth hungry applications like high-definition video and augmented reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6 GHz band so there is no interference or slowdowns due to legacy devices.

Device class support

The Aruba 610 Series APs are part of the low power indoor (LPI) device class. This fixed indoor-only class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services, which is required for standard class APs.

Global readiness

While the need for more Wi-Fi capacity is recognized across the globe, countries are approaching the 6 GHz band differently. The 610 Series APs are set up to automatically update regulatory rules once Wi-Fi 6E regulations have been approved and certified.

Extend the benefits of Wi-Fi 6

The Aruba 610 Series APs are based on the 802.11ax (Wi-Fi 6) standard, which means that all its efficiency and security enhancements are also available on the 6 GHz band. Wi-Fi 6 features such as Orthogonal Frequency Division Multiple Access (OFDMA), BSS coloring etc. are fully supported on the Aruba Wi-Fi 6E access points as well.

General Information
Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	R7J50A
Manufacturer Website Address	http://www.hpe.com
Brand Name	Aruba
Product Series	610
Product Model	AP-615
Product Name	AP-615 Wireless Access Point
Product Type	Wireless Access Point
Technical Information
Wireless LAN Standard	802.11ax
Bluetooth Standard	Bluetooth 5
Network Band	Tri Band
Frequency Band	2.40 GHz
Frequency Band	6 GHz
Frequency Band	5 GHz
Indoor/Outdoor	Indoor
Wireless Transmission Speed	3.60 Gbit/s
MIMO Technology	Yes
Beamforming Technology	Yes
Data Encryption	Yes
Encryption Standard	WPA3
Encryption Standard	WPA
Encryption Standard	WPA2
Encryption Standard	WPA3-ENT
Encryption Standard	WPA2-MPSK
Interfaces/Ports
Ethernet Technology	2.5 Gigabit Ethernet
Number of Network (RJ-45) Ports	1
PoE PD Port	Yes
USB	Yes
Management Port	Yes
Physical Characteristics
Form Factor	Ceiling Mountable
Antenna Form Factor	Internal
Height	1.5"
Width	6.3"
Depth	6.3"
Weight (Approximate)	1.15 lb
Warranty
Limited Warranty	Lifetime
