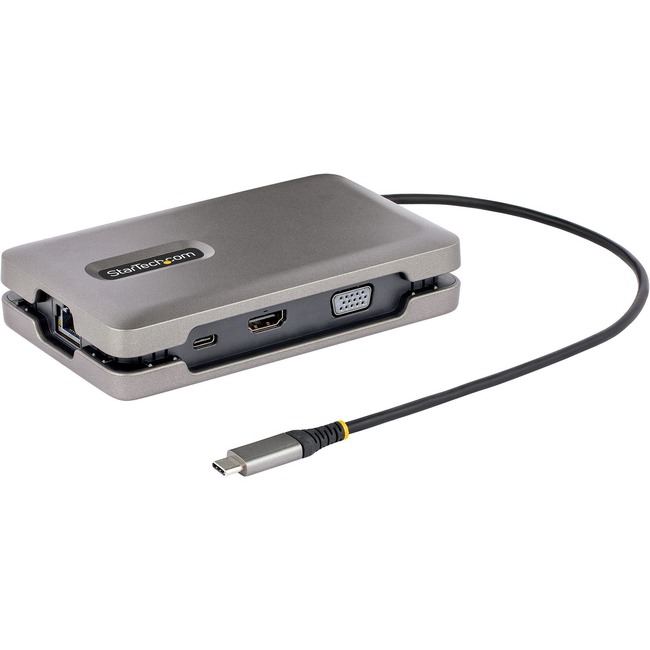

STARTECH DKM31C3HVCPD USB-C MULTIPORT ADAPTER W/USB-C DP ALT MODE VIDEO OUTPUT HDMI/VGA

This USB-C™ Multiport Adapter/Docking Station with DisplayPort™ 1.4 (Alt Mode) and Multi-Stream Transport (MST), features three video output options (HDMI, VGA and USB-C video) to support a single or multi-monitor workstation. The USB-C video port supports USB 3.2 Gen 2 (10Gbps) with 10W of power, to connect a USB-C monitor or a USB-C peripheral. In addition, the Docking Station also features a 2-Port USB-A 3.2 Gen 2 (10 Gbps) Hub, a Gigabit Ethernet port, and providing advanced charging through a USB Power Delivery (PD) 3.0 pass-through port. The Multiport Adapter connects to a laptop's USB-C or Thunderbolt 3/4™ port, using the integrated 10-inch (25.4cm) USB-C cable.

Versatile, High-Performance Video via MST

The compact USB Type-C Docking Station features three video output options to turn your laptop into a single or multi-monitor workstation.

HDMI Port Provides HDR video with resolutions up to 4K 60Hz.

VGA Port Provides analog video with resolutions up to 1080p 60Hz.

USB-C Port Provides the industry's first downstream full featured video or data (10Gbps) USB-C port that supports DP Alt Mode video or peripheral connection, on a non-Thunderbolt adapter.

The advanced video versatility of this Multiport Adapter, makes it suitable for a wide variety of applications:

• Connect a portable USB-C monitor as an extended display, to obtain a high resolution external monitor during on-the-go travel between an office desk, home office, hot desk, or the boardroom.

• Connect a USB-C peripheral to the downstream 10Gbps USB-C port, while using the HDMI and/or VGA ports to connect external monitor(s) as extended display(s).

• Connect multiple external monitors as extended displays, using any combination of the two video ports, to create a high-productivity workstation. USB-C video adapters (sold separately) can be used to connect HDMI, DVI, VGA, or DisplayPort monitors to the USB-C video port.

This Docking Station utilizes MST to obtain video versatility. Video performance is based upon the number of attached monitors and the host computer's video controller. Consult the manufacturer of the host computer to determine MST video performance. StarTech.com performs rigorous performance benchmarks with all major host computer video controllers. The video performance results of our testing are listed below:

HDMI Port - Single Monitor USB-C DP Alt Mode Port - Single Monitor VGA Port - Single Monitor Maximum Resolution Dual Display (MST)

DisplayPort 1.2 Alt Mode Intel Ice Lake 11th Gen and Previous Generation Processors

4K 30Hz 4K 30Hz 1080p 1080p + 1080p

DisplayPort 1.4 Alt Mode Intel Tiger Lake, Alder Lake, and Later Generation Processors

4K 30Hz 4K 30Hz 1080p 4K 30Hz + 1080p

DisplayPort 1.4 Alt Mode Discrete GPU

More from the Manufacturer

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	DKM31C3HVCPD
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	Docking Station
Packaged Quantity	1
Product Type	Docking Station
Technical Information
Number of Displays Supported	2
Supported Resolutions	1920 x 1080
Supported Resolutions	1920 x 1200
Supported Resolutions	3840 x 2160
Screen Mode Supported	4K
Device Supported	Notebook/Tablet/Smartphone
Interfaces/Ports
Host Interface	USB 3.2 (Gen 2) Type C
Number of USB 3.2 Gen 2 Type-A Ports	2
Number of USB Type-C Ports	1
USB Type-C	Yes
USB Type-C Detail	USB Type-C (24 pin) USB Power Delivery Only
USB Type-A	Yes
Number of RJ-45 Ports	1
Network (RJ-45)	Yes
VGA	Yes
DisplayPort	Yes
DisplayPort Version	1.4
Number of HDMI Ports	1
HDMI	Yes
HDMI Version	2.0b
Software
Operating System Supported	Windows 7
Operating System Supported	ChromeOS
Operating System Supported	Windows 11
Operating System Supported	Windows 8
Operating System Supported	Windows 8.1
Operating System Supported	Windows 10
Power Description
Maximum Power Supply Wattage	100 W
Physical Characteristics
Product Color	Space Gray
Height	1.10"
Width	3.30"
Weight (Approximate)	6 oz
Miscellaneous
Package Contents	Docking Station 1 x Quick-Start Guide
Compatibility	Compatibility Products: Mini dock compatible w/USB-C laptops/Ultrabooks/Chromebooks/Surface/Thunderbolt 3/4/USB4 laptops from HP/Dell/Lenovo; Windows/Android/Linux/ChromeOS - For optimal video performance use with Intel 11th & 12th gen+ laptop CPUs
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	3 Year
