STARTECH

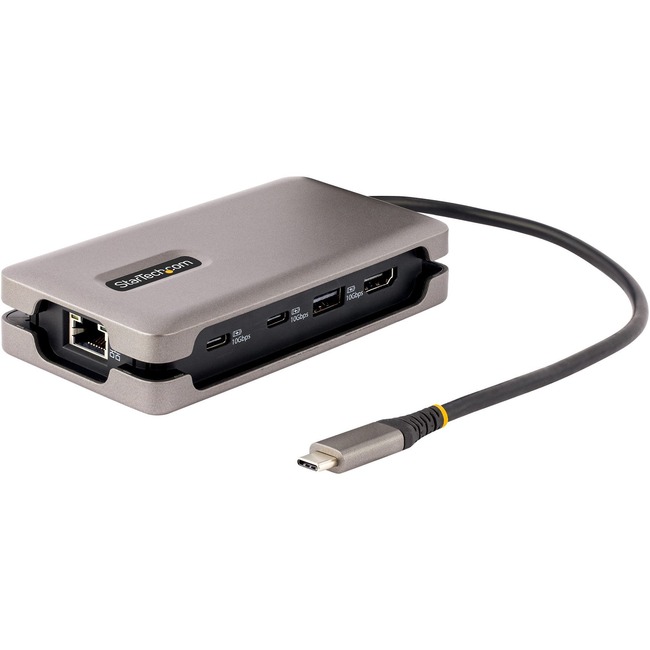

STARTECH DKT31CH2CPD3 USB-C MULTIPORT ADAPTER 4K 60HZ HDMI 10GBPS USB HUB 100W PD
Mfg Part Number: DKT31CH2CPD3 , Item #: 4674055
, PO and Wire.
This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns a USB-C™ laptop or tablet into a workstation, anywhere you go.
Enhance Productivity
The portable docking station provides 4K 60Hz HDMI video output, two USB 3.2 Gen 2 Type-C (10Gbps) ports, one USB 3.2 Gen 2 Type-A (10Gbps) port, and a Gigabit Ethernet port (PXE and WoL support) all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. A USB-C DisplayPort 1.4 Alt-Mode port is required for 4K 60Hz HDMI output.
Host Connection Maximum Resolution DP 1.4 Alternate Mode Up to 4K 60Hz DP 1.2 Alternate Mode Up to 4K 30HzConnect and Charge Your USB Devices
The USB hub features two USB-C (10Gbps) ports and one USB-A (10Gbps) port for connecting up to three USB peripherals. The USB PD pass-through port enables charging of the host laptop. USB PD is only available when a USB-C power adapter is connected to the PD pass-through port. Connect a USB-C Power Adapter to use as a standalone USB peripheral charger. The extra-long attached 12inch (30cm) USB-C host cable enables an extended reach for setup flexibility.
Portable Connectivity
For use while travelling, the USB-C adapter can operate bus-powered alone, or with a USB-C power adapter to enable laptop and peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: Setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DKT31CH2CPD3 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Model | DKT31CH2CPD3 |
| Product Name | DKT31CH2CPD3 Docking Station |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Displays Supported | 1 |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K |
| Device Supported | Notebook/Workstation |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | USB 3.2 (Gen 2) Type C |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| Number of USB Type-C Ports | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | USB Type-C (24 pin) USB Power Delivery Only |
| USB Type-A | Yes |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| DisplayPort Version | 1.4 |
| Number of HDMI Ports | 1 |
| HDMI | Yes |
| HDMI Version | 2.0b |
| Thunderbolt | Yes |
| Software | |
| Operating System Supported | Mac OS X 11.0 Big Sur |
| Operating System Supported | Windows 10 |
| Operating System Supported | ChromeOS |
| Operating System Supported | Mac OS X 13.0 Ventura |
| Operating System Supported | Mac OS X 12.0 Monterey |
| Operating System Supported | Windows 11 |
| Operating System Supported | Mac OS X 10.15 Catalina |
| Operating System Supported | Linux 4.x |
| Operating System Supported | iPadOS |
| Operating System Supported | Android |
| Power Description | |
| Maximum Power Supply Wattage | 100 W |
| Physical Characteristics | |
| Product Color | Space Gray |
| Form Factor | Portable |
| Height | 1" |
| Width | 2.50" |
| Weight (Approximate) | 3.30 oz |
| Miscellaneous | |
| Compatibility | Mini dock is Compatible with USB-C laptops, Ultrabooks, Chromebooks, USB4 and Thunderbolt 3/4 laptops from HP, Dell, Lenovo, MacBooks (Intel & M1 Pro/Max processors) and Surface - Works w/ Windows, macOS, iPadOS, Android, Linux & Chrome OS |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
