OPTICON

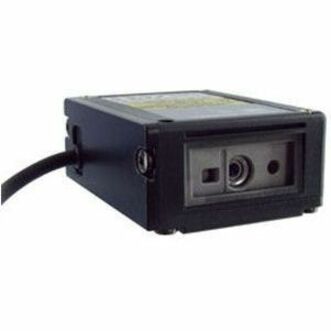

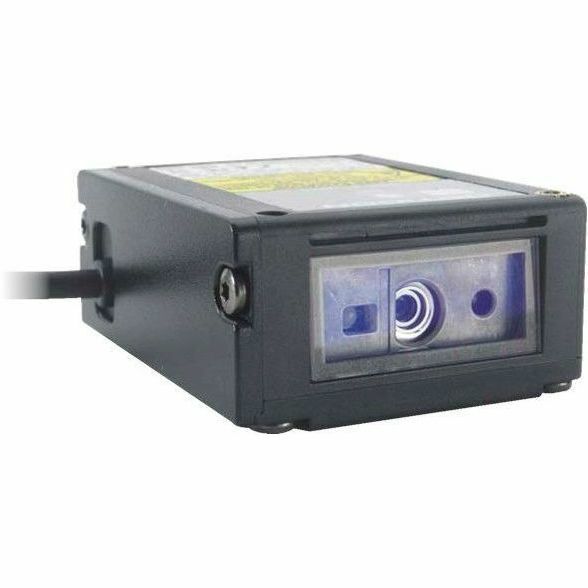

OPTICON F31U2-00 BARCODE SCANNERS,2D CMOS IMAGR SCANNER, CABLED FIXED MOUNT, IP42 RATING, 2 YEAR
Mfg Part Number: F31U2-00 , Item #: 4658513
Image may not reflect the actual item.
Price: $170.27
+ Free Shipping
Quantity:
More to Come
Last Updated: Nov 12, 2025
No Sales Tax except these states
, PO and Wire.
The F-31, a fixed mount 2D CMOS imager from Opticon, features auto-focus, liquid lens technology. With built in auto-focus capability, the F-31 quickly and efficiently scans 1D and 2D images and the real-time adapting liquid lens self-adjusts for distance and angle. F-31 product highlights include:
- 2D CMOS imager with auto-focus technology
- Rapidly scans and decodes a wide variety of 1D or 2D barcodes at 80 frames per second (FPS)
- Laser ranging method plus the high-speed CMOS image sensor enables high speed autofocusing
- Custom configuration capabilities
- Complete unit with integrated decoder
- Durable-survives 2.5 foot drop to concrete
- IP42 rating against dust and moisture
- Communication interface: USB or RS232
- Dimensions: 1.81" x 0.98" x 2.28" (WxLxD)
- Backed by a two year warranty
Main Specification
| General Information | |
| Manufacturer | Opticon Sensors Europe |
| Manufacturer Part Number | F31U2-00 |
| Manufacturer Website Address | http://www.opticon.com |
| Brand Name | Opticon |
| Product Model | F-31 |
| Product Name | Fixed Mount Scanner - 2D CMOS Imager with Auto-Focus |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Scanning Capability | 2D |
| Barcode Symbology Supported | 1D:
2D:
Postal Code:
|
| Light Source | Laser |
| Image Sensor Type | Imager |
| Image Sensor Type | CMOS |
| Scanning Distance | 39.37" |
| Field of View (Horizontal) | 40° |
| Field of View (Vertical) | 23° |
| Reading Angle (Skew) | 50° |
| Reading Angle (Pitch) | 50° |
| Reading Angle (Roll) | 360° |
| Image Formats | BMP |
| Image Formats | JPEG |
| Maximum Ambient Light | 10000 lux |
| Drop Specification | 2.5 ft (0.75 m) drop onto concrete surface |
| Minimum Element Resolution (Code 39) | 5 mil |
| Maximum Element Resolution (Code 39) | 39 mil |
| Illumination Type | LED |
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Input Current | 195 mA |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 113°F (45°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 20% to 85% |
| Physical Characteristics | |
| Form Factor | Fixed Mount |
| Color Family | Black |
| Product Color | Black |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Durability | Dust Resistant |
| Width | 1.8" |
| Depth | 2.3" |
| Weight (Approximate) | 1.80 oz |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP42 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
