SHUTTLE

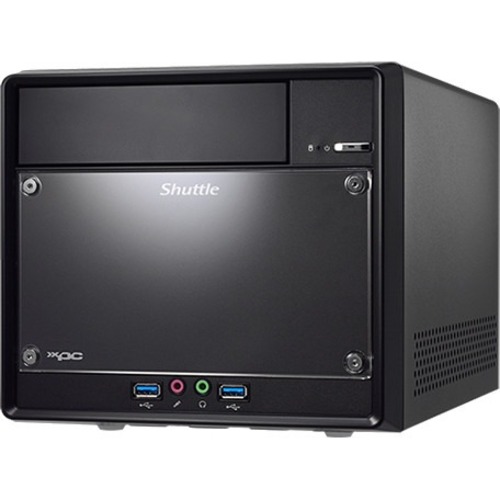

SHUTTLE CUBE SH510R4 BAREBONE H510 CHIPSET NO CPU/RAM/HDD/SSD/OS
Mfg Part Number: SH510R4 , Item #: 4632752
Image may not reflect the actual item.
Price: $600.42
+ Free Shipping
Quantity:
In Stock: 11
Last Updated: May 06, 2024
No Sales Tax except these states
, PO and Wire.
ENTRY-LEVEL PLATFORM FOR INTEL' S 10 TH /11 TH -GEN. CPU S
The Shuttle XPC cube Barebone SH510R4 supports the 10th and 11th generation of Intel Core desktop processors for socket LGA1200, up to 64 GB DDR4-3200 memory, two 4K displays at 60 Hz via DisplayPort and HDMI 2.0, high-performance M.2 SSDs and up to four USB 3.2 devices. The SH510R4 can be expanded with a high-performance graphics card for demanding applications while the second PCIe-X1-slot can be used for other expansion cards. WLAN and COM port can be additionally installed as well. The SH510R4 comes with a built-in 80 PLUS power supply and Shuttle's I.C.E. heatpipe cooling which means it is en- ergy-efficient and ready for long-term operation. For a personal look and feel, the front panel can be customised by adding individual designs.
The Shuttle XPC cube Barebone SH510R4 supports the 10th and 11th generation of Intel Core desktop processors for socket LGA1200, up to 64 GB DDR4-3200 memory, two 4K displays at 60 Hz via DisplayPort and HDMI 2.0, high-performance M.2 SSDs and up to four USB 3.2 devices. The SH510R4 can be expanded with a high-performance graphics card for demanding applications while the second PCIe-X1-slot can be used for other expansion cards. WLAN and COM port can be additionally installed as well. The SH510R4 comes with a built-in 80 PLUS power supply and Shuttle's I.C.E. heatpipe cooling which means it is en- ergy-efficient and ready for long-term operation. For a personal look and feel, the front panel can be customised by adding individual designs.
Main Specification
| General Information | |
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | SH510R4 |
| Manufacturer Website Address | http://www.us.shuttle.com |
| Brand Name | Shuttle |
| Product Line | XPC cube |
| Product Model | SH510R4 |
| Product Name | BAREBONE XPC cube SH510R4 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Processor Supported | Core i5 |
| Processor Supported | Pentium Gold |
| Processor Supported | Core i7 |
| Processor Supported | Celeron |
| Processor Supported | Core i9 |
| Processor Supported | Core i3 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H510 |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Number of Total Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 3 |
| Number of External 5.25" Bays | 1 |
| Number of 3.5" Bays | 2 |
| Number of Total Expansion Slots | 2 |
| Number of PCI Express x8 Slots | 1 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 9 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of Onboard USB 2.0 Ports | 1 |
| Number of SATA Interfaces | 3 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Linux |
| Operating System Supported | Windows 11 |
| Operating System Supported | Windows 10 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Maximum Power Supply Wattage | 300 W |
| Physical Characteristics | |
| Product Color | Black Aluminum |
| Height | 7.5" |
| Width | 8.5" |
| Depth | 13" |
| Weight (Approximate) | 7.50 lb |
| Miscellaneous | |
| Energy Star | Yes |
