MSI
MSI 919-98L1-005 MS-98L1 INTEL CLF-S C246 MITX 2 DDR4 SODIMM 4 LAN 2 DP 1 HDMI
Mfg Part Number: 919-98L1-005 , Item #: 4631193
Image may not reflect the actual item.
Price: $486.01
+ Free Shipping
Quantity:
More to Come
Last Updated: Jan 21, 2026
No Sales Tax except these states
, PO and Wire.

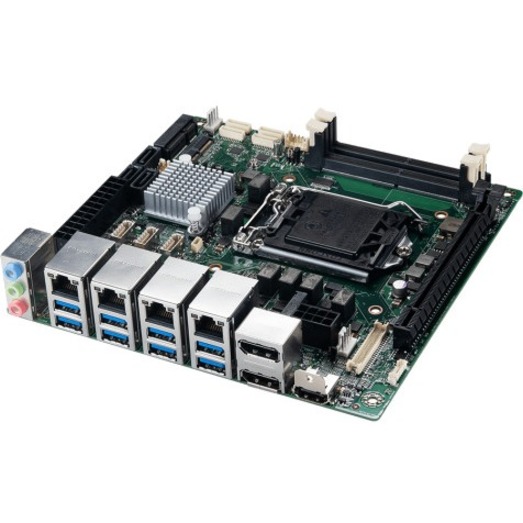

Mini-ITX with 9th/8th Gen Intel® Coffee Lake Refresh-S/Coffee Lake-S Xeon®, Core™ i7/i5/i3, Pentium®, Celeron® Processor & Intel® C246/Q370/H310 for High-Performance Solution
- Intel® 8th/9th Gen Coffee Lake-S/Coffee Lake Refresh-S Series with C246/Q370/H310
- 2 DDR4 2666 MHz ECC/non-ECC SODIMM slots up to 64GB
- Triple independent displays: 2DP, HDMI (DP by option), LVDS
- 4 GbE LAN with RJ-45
- 1 PCIe x16 (Gen 3) Slot, M.2 E key (with CNVi), 1 Mini-PCIe (Full size, with SIM Holder) slots
- M.2 M key, 3 SATA 3.0 for storage
- SATA RAID 0/1/5/10 (RAID 10 Configured with M.2 M Key)
- 4 USB 3.2 Gen 2, 6 USB 3.2 Gen 1, 2 USB 2.0, 6 COM (2 RS-485), GPIO, Audio, S/PDIF, System FAN
- Onboard TPM 2.0 (by option)
- SMBus, iAMT 12.x
- ATX Power
Main Specification
| General Information | |
| Manufacturer | MSI |
| Manufacturer Part Number | 919-98L1-005 |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Model | MS-98L1 |
| Product Name | MS-98L1 Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C246 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i7 |
| Processor Supported | Pentium |
| Processor Supported | Celeron |
| Processor Supported | Xeon |
| Processor Supported | Core i5 |
| Processor Supported | Core i3 |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | SODIMM |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 2666 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 3 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of Onboard USB 3.2 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.7" |
| Depth | 6.7" |
| Weight (Approximate) | 14.29 oz |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
