400 GbE Cable Supports High Bandwidths for High-Density Data Networking
The N383S-02M is a premium singlemode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals. Its high bandwidth is ideal for hyperscale, edge, enterprise and colocation data center interconnect (DCI) applications where density and speed are both very important.
Compact SN Connectors Designed for the Latest OSFP/QSFP-DD Transceivers

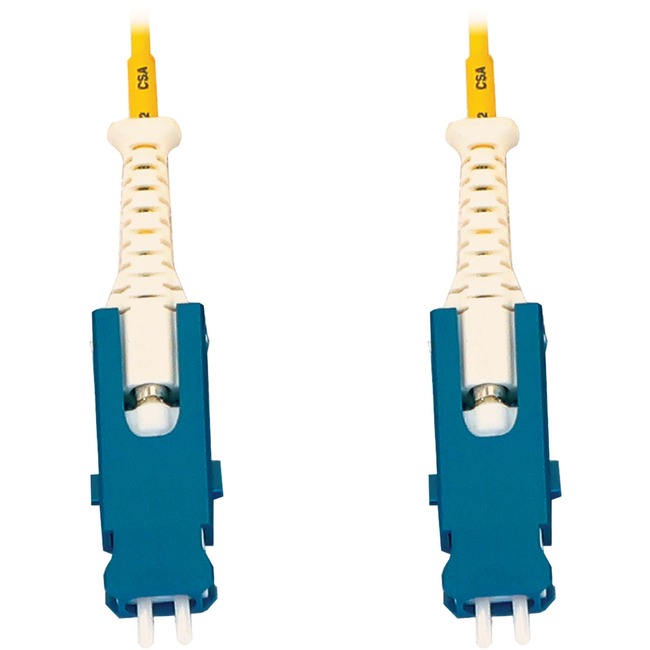

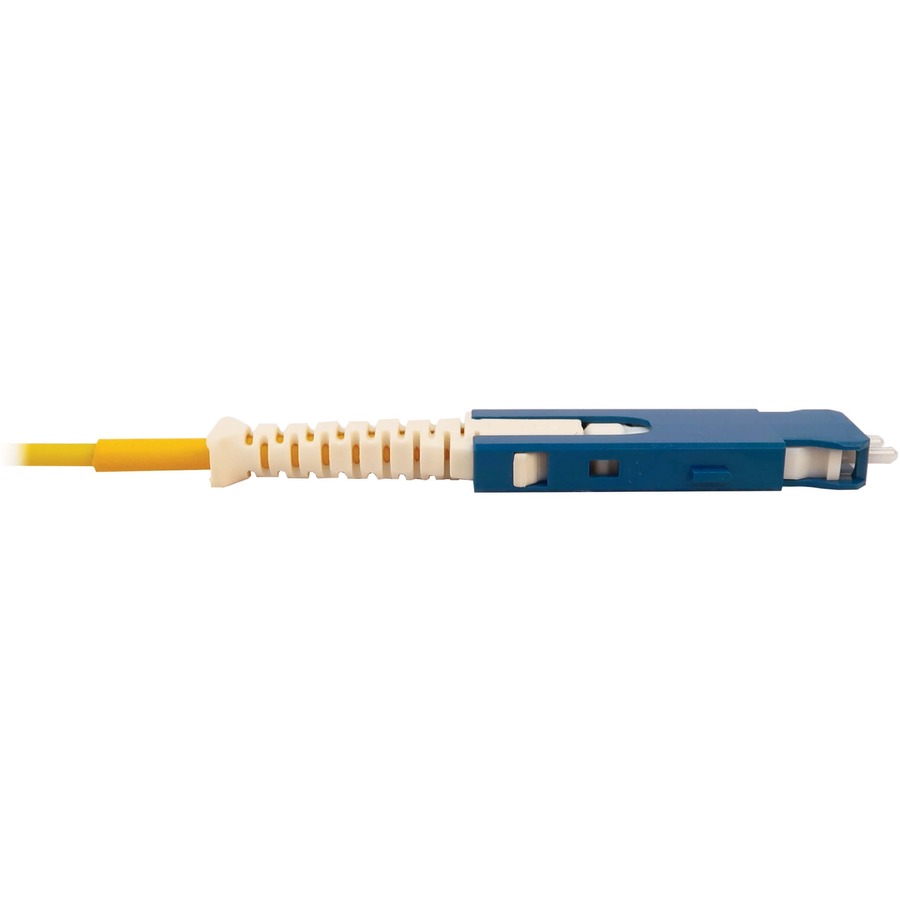

This 400 Gb cable features duplex SN connectors on both ends. SN connectors are four times smaller than standard LC connectors and provide individual and independent duplex fiber support for OSFP/QSFP-DD transceivers. Push/pull boots encourage dense vertical stacking within a crowded patch panel or switch and make the cable easy to install or remove with just one hand. The switchable SN/UPC ends let you make quick polarity changes in the field without tools or the need to re-terminate the connectors.
Yellow-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
General Information | |
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | N383S02M |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Model | N383S-02M |
Product Name | N383S-02M 400G Singlemode 9/125 OS2 Fiber Cable, Yellow, 2 m (6.6 ft.) |
Product Type | Network Cable |
Technical Information | |
Cable Type | Fiber Optic |
Fiber Optic Mode | Single-mode |
Core/Cladding Diameter | 9/125 µm |
Cable Length | 6.56 ft |
Connector Type on First End | SN/UPC Network - Male |
Connector on First End Details | 2 x SN/UPC Network - Male |
Connector Type on Second End | SN/UPC Network - Male |
Connector on Second End Details | 2 x SN/UPC Network - Male |
Jacket Type | LSZH |
Jacket Type | OFNR |
Device Supported | Network Device |
Device Supported | Patch Panel |
Device Supported | Switch |
Device Supported | Transceiver |
Data Transfer Rate | 400 Gbit/s |
Features | Bendable |
Features | Push-Pull Boot |
Physical Characteristics | |
Jacket Color | Yellow |
Connector Color | White |
Connector Color | Blue |
Miscellaneous | |
Environmentally Friendly | Yes |
Country of Origin | China |
Warranty | |
Limited Warranty | Lifetime |
