B+B SmartWorx/Advantech

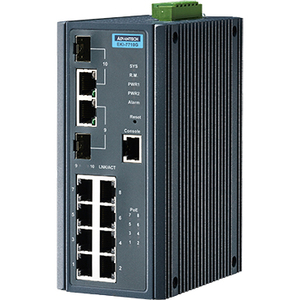

B+B SmartWorx/Advantech EKI-7710G-2CPI-BE 8G + 2G COMBO MANAGED POE+ SWITCH W/WIDE TEMP
Mfg Part Number: EKI-7710G-2CPI-BE , Item #: 4578354
Image may not reflect the actual item.
Price: $1,741.88
+ Free Shipping
Quantity:
More to Come
Last Updated: Nov 24, 2025
No Sales Tax except these states
, PO and Wire.
The EKI-7710G-2CP/2CPI support 8 Gigabit PoE ports and 2 Gigabit combo ports. They provide up to 30W per port for high-power-consumption powered devices. They come embedded with Advantech IXM function, which can benefit users with fast deployment and can dramatically save considerably on engineering time and costs. The EKI-7710G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability.
Main Specification
| General Information | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | EKI-7710G-2CPI-BE |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Series | EKI-7710G |
| Product Model | EKI-7710G-2CPI |
| Product Name | 8G+2G Port Gigabit Managed Redundant Industrial PoE Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet TP/SFP Combo |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.1x |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.1w |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
| Input Voltage | 48 V DC |
| Input Voltage | 24 V DC |
| Power Source | DC |
| Power Consumption | 12.10 W |
| Plug/Connector Type | Terminal Block |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Wall Mountable |
| Form Factor | DIN Rail Mountable |
| Height | 6" |
| Width | 2.9" |
| Depth | 4.1" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
