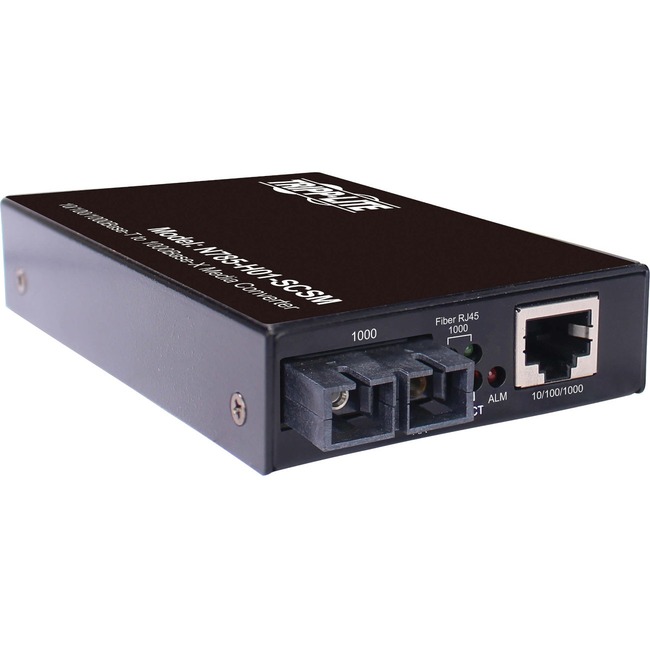

TRIPP LITE N785-H01-SCSM HARDENED COPPER TO FIBER MEDIA CONVERTER RJ45/SC SMF 10/100MBPS
Mfg Part Number: N785-H01-SCSM , Item #: 4555745
, PO and Wire.
Features | Extends a Network Connection up to 10 km over SC Singlemode Fiber Optic Cable
This network media converter converts a copper Gigabit Ethernet signal to a singlemode fiber optic signal and extends it to a second network device up to 10 kilometers (6.2 miles) away. Because copper Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-H01-SCSM with singlemode fiber cable to reach hubs, switches and other network devices located farther away. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.
Monitor Your Installation with Link Fault Signaling and Loop Back Functions
Determine the health of your network connection via the Link Fault Signaling (LFS) and Loop Back functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The Local Loop Back (LLB) and Remote Loop Back (RLB) functions ensure copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.
LEDs Indicate Installation Performance and Diagnostic Functions
Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power.
Protective Metal Housing Built to Withstand a Variety of Hazards
The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for wall or DIN mounting.
Works in Tandem with Tripp Lite's N785-CH12 Chassis
House and power up to 12 Tripp Lite media converters, including the N785-H01-SCSM, using the N785-CH12 12-port chassis (sold separately) to create an organized installation.
TAA-Compliant for GSA Schedule Purchases
The N785-H01-SCSM is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
| General Information | |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N785-H01-SCSM |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | N785-H01-SCSM |
| Product Name | N785-H01-SCSM Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Wavelength | 1310 nm |
| Maximum Distance Supported | 6.21 Mile |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| Power Description | |
| Power Source | AC Adapter |
| Power Consumption | 1.80 W |
| Plug/Connector Type | NEMA 1-15P |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Form Factor | DIN Rail Mountable |
| Form Factor | Desktop |
| Height | 0.9" |
| Width | 2.9" |
| Depth | 4.3" |
| Weight (Approximate) | 8.43 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
