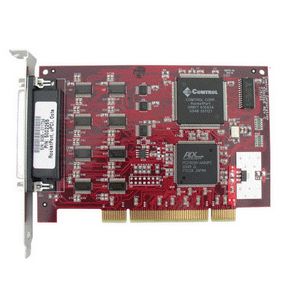

PEPPERL+FUCHS COMTROL INC(COMTROL) 99342-1 Comtrol RocketPort Universal PCI Octa DB9 Multiport Serial Adapter

The RocketPort uPCI Octa/DB9 serial port expansion card is compatible with all current 3.3 and 5.0 Volt PCI bus architectures. It provides eight "native" serial ports utilizing a single 32 or 64 bit PCI card slot. The serial ports with DB9 connectors support RS 232 serial communications at speeds up to 460 Kbps. RocketPort products are designed with larger transmit and receive buffers than those available in a standard 16550 UART found in standard PC serial ports and low end serial cards, enabling them to handle the transmission of large amounts of data reliably and efficiently. They also utilize an on board 36MHz processor, minimizing host CPU utilization. RocketPort products do not require the assignment of interrupts, simplifying installation and eliminating conflicts with other server cards. Drivers are available for popular operating systems. The product is fully compliant with the RoHS directive 2002/95/EC.

General Information
Manufacturer	Comtrol Corporation
Manufacturer Part Number	99342-1
Manufacturer Website Address	http://www.comtrol.com
Brand Name	Comtrol
Product Line	RocketPort Universal
Product Name	RocketPort Universal PCI Octa DB9 Multiport Serial Adapter
Product Type	Multiport Serial Adapter
Technical Information
Host Interface	Universal PCI
Maximum Data Transfer Rate	3.60 Mbit/s
Interfaces/Ports
Ports Expandability	8 x DB-9 RS-232 - Serial, Via Cable (Optional)
Physical Characteristics
Form Factor	Plug-in Card
Height	3.8"
Width	5.5"
Weight (Approximate)	1.67 lb
Warranty
Limited Warranty	5 Year

The RocketPort uPCI Octa/DB9 serial port expansion card is compatible with all current 3.3 and 5.0 Volt PCI bus architectures. It provides eight "native" serial ports utilizing a single 32- or 64-bit PCI card slot. The serial ports with DB9 connectors support RS-232 serial communications at speeds up to 460 Kbps. RocketPort products are designed with larger transmit-and-receive buffers than those available in a standard 16550 UART found in standard PC serial ports and low-end serial cards, enabling them to handle the transmission of large amounts of data reliably and efficiently. They also utilize an on-board 36MHz processor, minimizing host CPU utilization. RocketPort products do not require the assignment of interrupts, simplifying installation and eliminating conflicts with other server cards. Drivers are available for popular operating systems. The product is fully compliant with the RoHS directive 2002/95/EC.

General
Device Type	Serial adapter - 8 ports
Form Factor	Plug-in card
Interface (Bus) Type	PCI
Depth	5.5 in
Height	3.7 in
Networking
Connectivity Technology	Wired
Cabling Type	Serial
Data Link Protocol	RS-232
Data Transfer Rate	460.8 Kbps
Processor / Memory
Processor Clock Speed	36 MHz
Expansion / Connectivity
Interfaces	8 x serial - RS-232 - 9 pin D-Sub (DB-9)
Compatible Slots	1 x PCI
Miscellaneous
Cables Included	1 x serial coupler ( external )
Compliant Standards	FCC Class B certified, CE, UL, RoHS
Software / System Requirements
OS Required	Linux, Microsoft Windows NT, Microsoft Windows Millennium Edition, Microsoft Windows 2000 / XP
Peripheral / Interface Devices	PCI slot
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	113 °F
Humidity Range Operating	20 - 80%
