SYBA

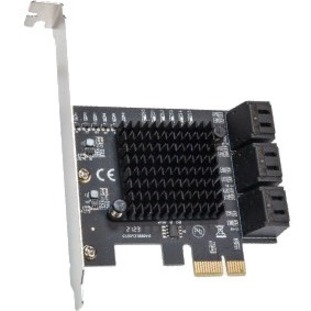

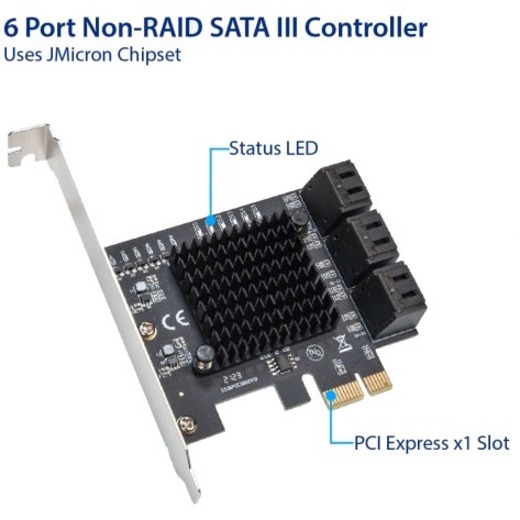

SYBA SY-PEX40166 6 PORT SATA III TO PCIE 3.0 X1 JMB575 JMB582 LOW PROFILE BRACKET
Mfg Part Number: SY-PEX40166 , Item #: 4473037
Image may not reflect the actual item.
Price: $46.69
+ Free Shipping
Quantity:
More to Come
Last Updated: Dec 06, 2025
No Sales Tax except these states
, PO and Wire.
The SY-PEX40166 adds 6 SATA 6G ports through a PCIe 3.0 x1 card to your PC System. It's an ideal solution for surveillance users to install up to 10 SATA drives and/or ODD drives in one low profile PCIe card without driver installation required.
Main Specification
| General Information | |
| Manufacturer | SYBA Multimedia, Inc |
| Manufacturer Part Number | SY-PEX40166 |
| Manufacturer Website Address | http://www.syba.com |
| Brand Name | SYBA Multimedia |
| Product Name | 6 Port SATA III to PCIe 3.0 x1 Non-RAID Expansion Card SY-PEX40166 |
| Packaged Quantity | 1 |
| Product Type | SATA Controller |
| Technical Information | |
| Host Interface | PCI Express 3.0 x1 |
| Controller Type | Serial ATA/600 |
| RAID Supported | No |
| Operating System Supported | Mac OS |
| Operating System Supported | Windows 10 |
| Operating System Supported | Linux |
| Interfaces/Ports | |
| Total Number of SATA Ports | 6 |
| Number of SATA Ports (Internal) | 6 |
| Physical Characteristics | |
| Height | 4.8" |
| Length | 6" |
| Form Factor | Plug-in Card |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | Linux |
| Platform Supported | Mac |
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
