MINUTEMAN

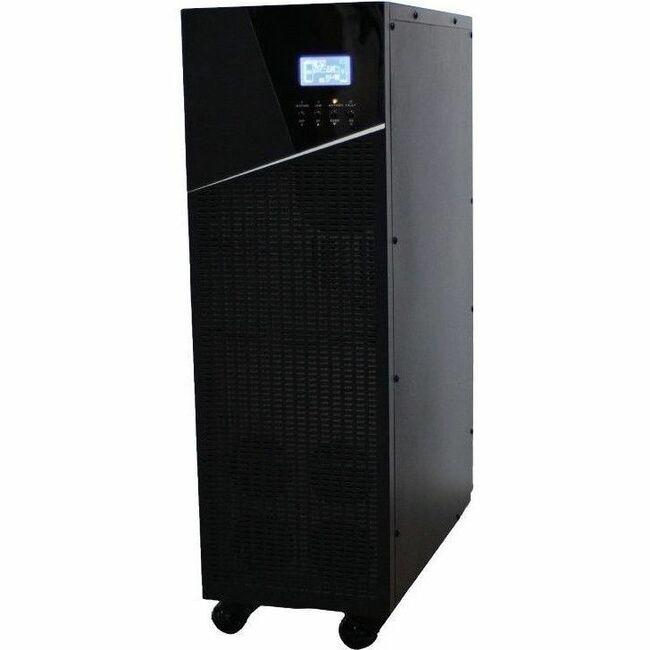

MINUTEMAN ED6KTF ONLINE 6KVA/5400W UPS 208VAC IN 208/120VAC OUT HW IN/OUT
Mfg Part Number: ED6KTF , Item #: 4442201
Special Note: Jun 21, 2021
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.
True On-line UPS Provides Maximum Protection | Endeavor® 6/10kVA Uninterruptible Power Supply
The Minuteman® Endeavor® 6/10kVA Tower Series UPS combines transient free, pure sine wave output and extended runtime capability for critical applications. A front panel LCD display provides visual notification of the UPS status, including AC input status, battery status, and UPS fault indication.
Ultra-Configurable Value for Large Systems
The Endeavor Series is available in two models with configuration options and multiple voltage configurations to ensure a proper solution is available for most applications. Both Endeavor models include 208-240V input and 120/208/230/240VAC output. Additional accessories, including an SNMP communication card and one or more external battery packs would further tailor the Endeavor to individual's needs.
A perfectly regulated, continuous sine wave output with zero transfer time offers guaranteed uptime and compatibility with all equipment types.
| General Information | |
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | ED6KTF |
| Manufacturer Website Address | http://www.minutemanups.com |
| Brand Name | Minuteman |
| Product Line | Endeavor |
| Product Model | ED6KTF |
| Product Name | Endeavor ED6KTF 6000VA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Phase | Single Phase |
| Application/Usage | Distributed Antenna System (DAS) |
| Application/Usage | Network Closet |
| Application/Usage | Education |
| Application/Usage | Security System |
| Application/Usage | High-end System |
| Application/Usage | Telephone |
| Application/Usage | VoIP |
| Application/Usage | Network |
| Application/Usage | Data Center |
| Application/Usage | Mission Critical Equipment |
| Power Description | |
| Load Capacity (VA) | 6000 VA |
| Load Capacity (Watt) | 6000 W |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Input Voltage Range | 0 V AC - 300 V AC |
| Input Voltage Range | 208 V AC - 240 V AC |
| Input Voltage Range | 110 V AC - 300 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 208 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | True Sine Wave |
| Surge Energy Rating | 880 J |
| Display & Graphics | |
| Display | LCD |
| Controls/Indicators | |
| Status Indicators | LCD Display:
|
| Battery Information | |
| Number of Batteries | 20 |
| Battery Characteristics | Sealed, Non-spillable, Maintenance-free, Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 140°F (60°C) |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 32.5" |
| Width | 9.8" |
| Length | 22.1" |
| Weight (Approximate) | 237 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 2 Year |
