6 MP outdoor-ready with 360° panoramic view and audio capture:

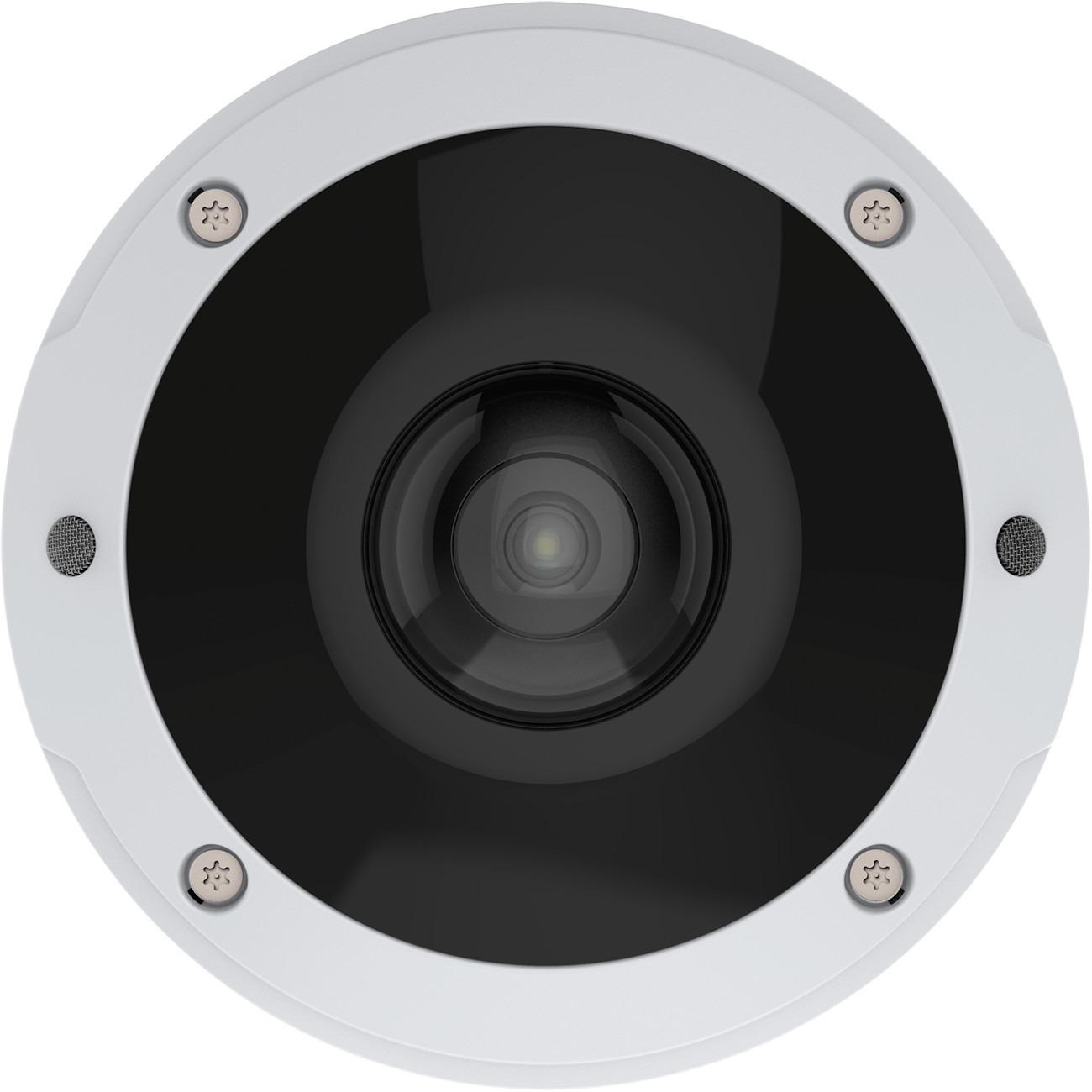

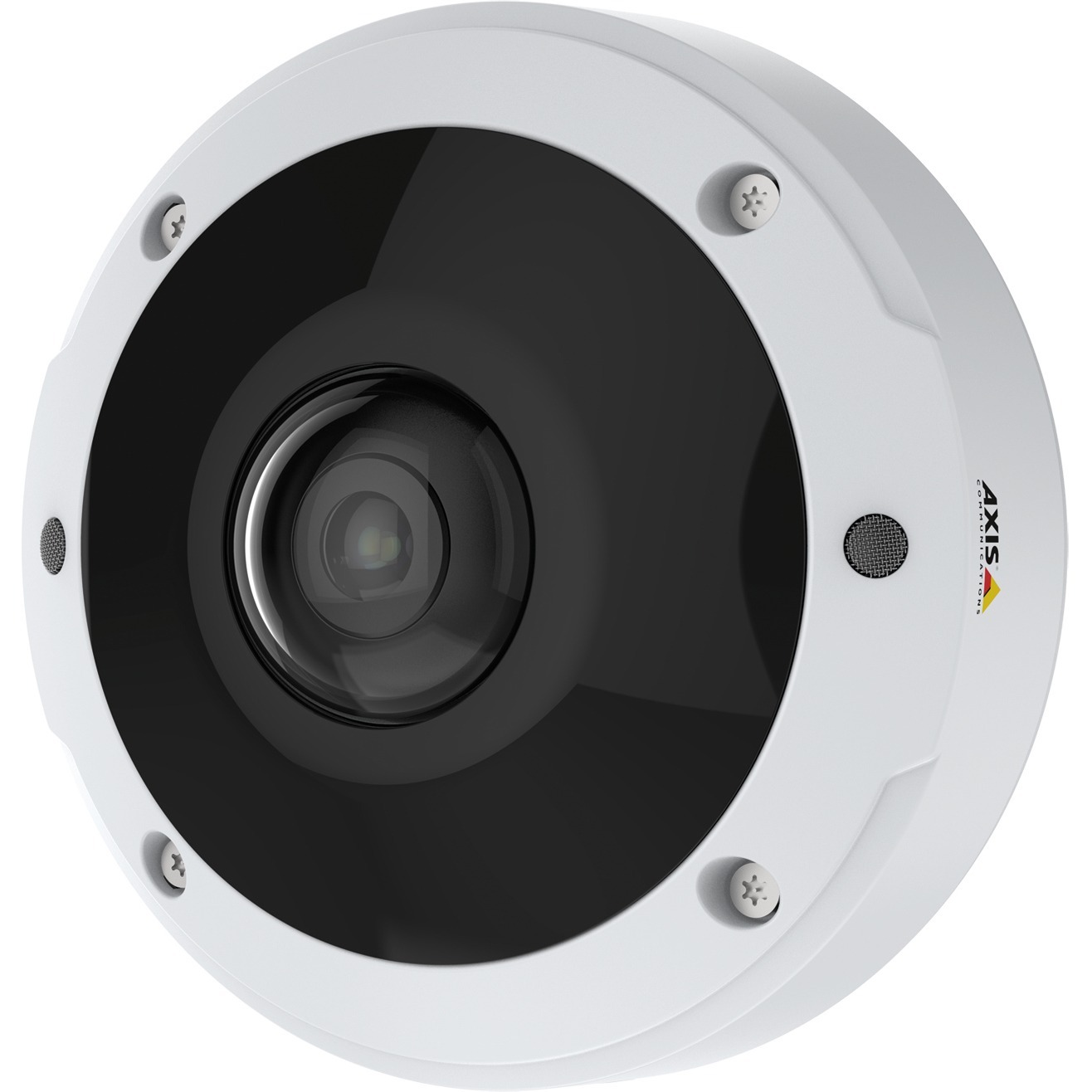

With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality and a complete 180° or 360° overview, indoors or out, around the clock. It features two built-in microphones allowing for audio surveillance and detection. This compact mini dome offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. And, Axis OptimizedIR for surveillance in pitch darkness.
With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality and a complete 180° or 360° overview, indoors or out, around the clock. It features two built-in microphones allowing for audio surveillance and detection. This compact mini dome offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. And, Axis OptimizedIR for surveillance in pitch darkness.
Main Specification
| General Information | |
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02018-001 |
| Manufacturer Website Address | http://www.axis.com |
| Brand Name | AXIS |
| Product Series | M30 |
| Product Model | M3077 |
| Product Name | M3077-PLVE Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Color Supported | Color |
| Field of View | Horizontal field of view: 183° Vertical field of view: 183° |
| Effective Camera Resolution | 6 Megapixel |
| Video | |
| Video Formats | H.265 |
| Video Formats | H.265 (MPEG-H Part 2/HEVC) |
| Video Formats | MJPEG |
| Video Formats | H.264 |
| Video Formats | H.264 (MPEG-4 Part 10/AVC) |
| Maximum Video Resolution | 2560 x 1920 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.56 mm |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/16000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE |
| Physical Characteristics | |
| Mount Type | Pole Mount |
| Mount Type | Wall Mount |
| Mount Type | Conduit Mount |
| Mount Type | Corner Mount |
| Mount Type | Pendant Mount |
| Mount Type | Parapet Mount |
| Mount Type | Lighting Track Mount |
| Mount Type | Ceiling Mount |
| Form Factor | Dome |
| Color Family | White |
| Product Color | White |
| Height | 2.6" |
| Diameter | 5.9" |
| Weight (Approximate) | 1.54 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | Noise Reduction |
| Features | PTZ |
| Features | Wide Dynamic Range |
| Features | Privacy Masking |
| Features | Automatic White Balance |
| Features | Audio Detection |
| Features | Removable IR Cut-off Filter |
| Features | Built-in IR LED |
| Features | Built-in Microphone |
| Features | Auto Gain Control |
| Features | SD Card Local Storage |
| Features | Video Management System |
| Features | Multi-view Stream |
| Features | Tampering Alarm |
| Features | Day/Night |
| Features | Motion Detection |
| Indoor/Outdoor | Outdoor |
| Package Contents |
|
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Thailand |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
