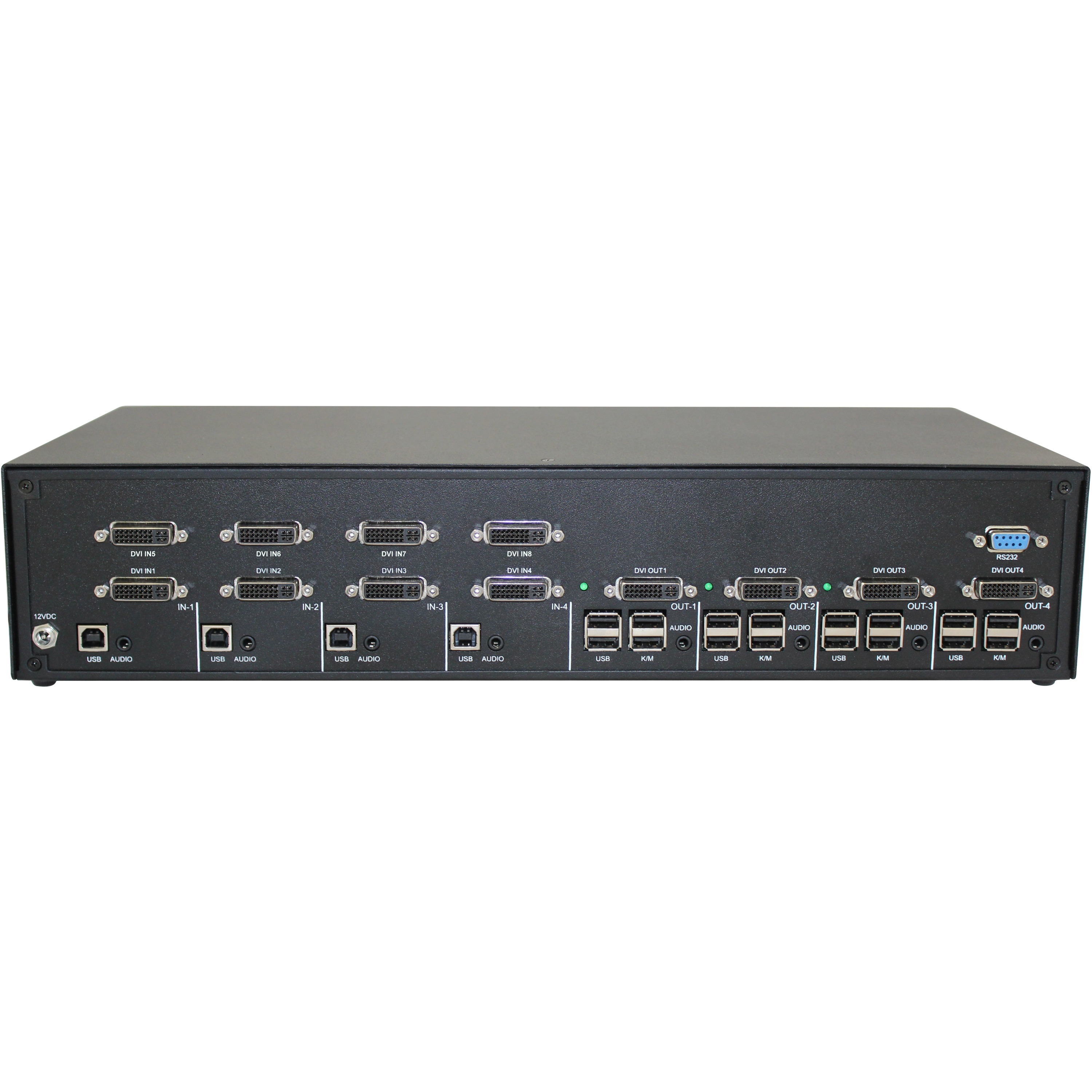

SMARTAVI SM-DVN-84X 8PORT DVI-D MATRIX KVM SWITCH AUDIO & USB 2.0 SUPPORT 4 USERS

The SM-DVN-84X is a dedicated multi-platform KVM Switch capable of managing up to 8 different computers through four monitors, USB keyboard and mouse, a set of speakers, and USB devices like printers, memory devices, scanners, etc. With multi-user support, the SM-DVN-84X can accomodate up to 4 users. The video connectors on the unit are DVI-D, which allows support for HDMI using active adapters or cables. When using a DVI or an HDMI monitor, computers can be a mix of either DVI or HDMI.

The SM-DVN-84X supports resolutions of up to 2560x1600 @60Hz with zero pixel loss from TMDS signal correction.

APPLICATION DIAGRAM

The main function of this KVM Switch is to centralize the access of several computer into a single, comprehensive KVM Station. Its USB 2.0 functionality support allows users at the console to access USB devices that would otherwise be unavailable on conventional KVM Switches. For example, it allows the use of a flash memory drive or camera without having to plug it directly into the remote computer. The SM-DVN-84X is a perfect solution for the medical or industrial field where it may not be practical or safe to have on or more CPUs in the general vicinity.

FLEXIBLE CONTROL

RS-232

Any external device or program supporting RS-232 can control the SM-DVN-84X. The SM-DVN-84X uses a very simple protocol, enabling easy integration with the RS-232 control devices.

USB/KEYBOARD

Hot keys enable the user to switch and control all the different functions of the KVM Switch

FLEXIBLE SHARING

INDEPENDENT SIMULTANEOUS DEVICE SELECTION

Flexibility is key with the SM-DVN-84X. It enables the use of a USB keyboard and mouse on one computer while other USB peripherals such as speakers, scanners and printers are connected to other computer sources. The SM-DVN-84X maintains the ability to switch all connected devices to any one of the computer sources as with any other KVM Switch in the market.

General Information
Manufacturer	Smart Audio Video Innovation
Manufacturer Part Number	SM-DVN-84X
Manufacturer Website Address	http://www.smartavi.com
Brand Name	SmartAVI
Product Model	SM-DVN-84X
Product Name	SM-DVN-84X KVM Switchbox
Product Type	KVM Switchbox
Technical Information
Number of Computers Supported	8
Number of Local Users Supported	4
Video
Maximum Video Resolution	2560 x 1600
Interfaces/Ports
USB	Yes
DVI	Yes
Number of USB Ports	20
Number of DVI Ports	12
Power Description
Input Voltage Range	100V AC to 240V AC
Physical Characteristics
Height	2.7"
Width	17"
Depth	8.7"
Weight (Approximate)	6.90 lb
Miscellaneous
Environmentally Friendly	Yes
Country of Origin	United States
