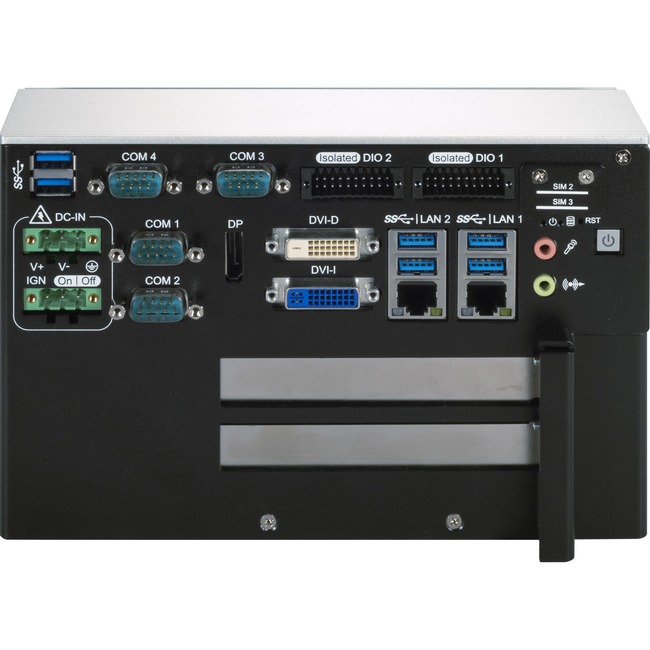

Run Almost Any Application with Multiple PCIe Slots. Unlike most box PCs, the iPC R1is comes with multiple PCIe slots to allow you to tailor the functionality to your needs. The iPC R1is also allows you to use legacy hardware/applications that require a full-size PCI slot.
Full-Size PCIe Card Slots: Many industrial and medical applications require a full-size PCI Express slot to run, particularly high-speed data applications. Newer computers often only have the mini PCI Express slots.
Mini PCIe Slots: With Mini PCIe Slots, your system designers can easily create numerous configurations and expand this custom mini PC's features and signal-handling capabilities.
Because the iPC R1is uses military grade components, it can operate in temperatures from -25°C up to 70°C / (158°F). The device easily adapts to extreme fluctuations in temperature making it the perfect tool for use in factory floors and other industrial working environments.
The iPC R1is is also rated shock and vibration proof for more demanding environments. In addition, fanless cooling technology protects internal components from damage from dust and other particulates in the air. Cybernet's industrial computers boast a less than 2% failure rate and an extremely high mean time between failure (MTBF).
General Information | |
Manufacturer | Cybernet Manufacturing, Inc |
Manufacturer Part Number | IPC-R1IS |
Manufacturer Website Address | http://www.cybernetman.com |
Brand Name | Cybernet |
Product Series | R |
Product Model | IPC-R1IS |
Product Name | Industrial Grade Mini PC |
Packaged Quantity | 1 |
Product Type | Desktop Computer |
Processor | |
Processor Manufacturer | Intel |
Processor Type | Core i5 |
Processor Generation | 6th Gen |
Processor Model | i5-6500TE |
Processor Speed | 2.30 GHz |
Chipset | |
Chipset Manufacturer | Intel |
Memory | |
Standard Memory | 8 GB |
Memory Technology | DDR4 SDRAM |
Storage | |
Total Solid State Drive Capacity | 128 GB |
Optical Drive Type | No |
Display & Graphics | |
Graphics Controller Manufacturer | Intel |
Graphics Controller Model | HD 530 Graphics |
Graphics Memory Technology | DDR4 SDRAM |
Graphics Memory Accessibility | Shared |
Network & Communication | |
Ethernet Technology | Gigabit Ethernet |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11ac |
Interfaces/Ports | |
DVI | Yes |
Total Number of USB Ports | 6 |
Number of USB 3.0 Ports | 6 |
DisplayPort | Yes |
Number of DisplayPort Outputs | 1 |
Operating System | |
Operating System Platform | No |
Operating System | No |
Physical Characteristics | |
Product Color | Silver |
Form Factor | Mini PC |
Height | 8.3" |
Width | 5.4" |
Depth | 9.9" |
Weight (Approximate) | 7.70 lb |
Miscellaneous | |
Package Contents |
|
Energy Star | Yes |
Country of Origin | United States |
Environmentally Friendly | Yes |
Warranty | |
Limited Warranty | 1 Year |
