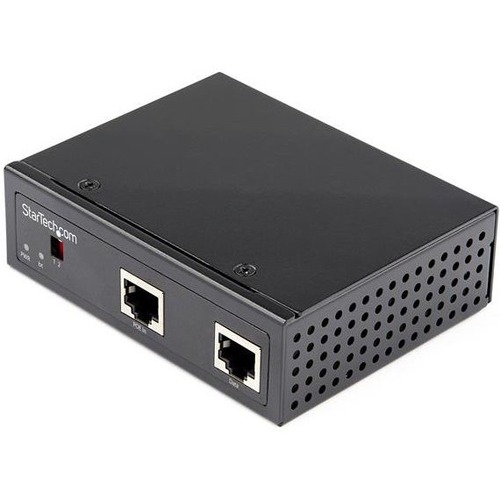

STARTECH POESLT1G48V INDUSTRIAL GIGABIT POE SPLITTER 12-48VDC SPLITTER 802.3BT ULTRA POE

Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available. Power Non-PoE Devices Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include: Security (card swipe or proximity boxes) Environmental monitoring (temperature/moisture sensors) Telco (analog interface systems/conversion) Straightforward Deployment Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A). The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-Fall: EN 60068-2-32 600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability. The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer

More from the Manufacturer

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	POESLT1G48V
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Model	POESLT1G48V
Product Name	POESLT1G48V PoE Splitter
Packaged Quantity	1 Each
Product Type	PoE Splitter
Power Description
Minimum Output Voltage	12 V DC
Maximum Output Voltage	48 V DC
Interfaces/Ports
Input Ports	1 x PoE+
Output Ports	1 x Terminal Block
Output Ports	1 x Ethernet
Physical Characteristics
Form Factor	DIN Rail/Wall Mountable
Height	1.3"
Width	3.2"
Length	4.1"
Weight (Approximate)	5.29 oz
Miscellaneous
Package Contents	POESLT1G48V PoE Splitter Quick-Start Guide Hardware Mounting Kit Terminal Block
Certifications & Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3at IEEE 802.3af IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 EN 60068-2-6 EN 60068-2-27 EN 60068-2-32 EN60950-1
Environmentally Friendly	Yes
Environmental Certification	EU RoHS
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
REACH free of SVHC	Yes
REACH Declaration URL	https://media.startech.com/cms/pdfs/poeslt1g48v_rohs.pdf
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/poeslt1g48v_rohs.pdf
End of Life Manual Availability	Yes
WEEE Statement	https://media.startech.com/cms/pdfs/poeslt1g48v_weee.pdf
Country of Origin	Taiwan
Warranty
Limited Warranty	2 Year
