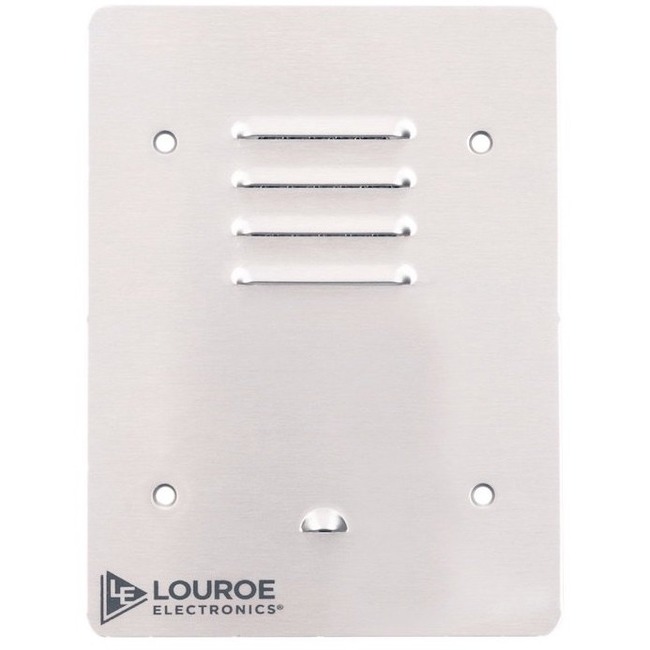

LOUROE ELECTRONICS LE-540 AOP540 - Speakerphone Full-Duplex Communication and DSP technology

The VeriFact-530 and 540 are wall mount speaker microphones. The VeriFact-530 integrates a 5/8" illuminated call button. They are capable of full duplex communication and electronic noise cancellation. They are designed to interface with various modes of audio/ video transmission systems such as IP Network Cameras, Video Encoder that accept audio, DVR's, soundcards, etc. The units contain a built-in microphone and 2" speaker for providing bi-directional audio with the receiving source (IP network camera, etc.). Speaker volume adjustment potentiometer is located inside the unit. The VeriFact-530 and 540 are designed to fit into most 3-gang box enclosures and use spring clamp quick connect terminal blocks for ease of wiring and installation.

APPLICATION

ModelsVeriFact-530/540 are used in conjunction with other manufacturer's audio receiving devices such as:

• DVR's
• IP Network cameras (that accept audio) PC Soundcards
• Video Encoders (that accept audio)

General Information
Manufacturer	Louroe Electronics
Manufacturer Part Number	LE-540
Manufacturer Website Address	http://www.louroe.com
Brand Name	Louroe
Product Name	Speaker/Microphone Expansion Module
Product Type	Speaker/Microphone Expansion Module
Physical Characteristics
Form Factor	Wall Mountable
Form Factor	Box
Height	6.5"
Width	4.8"
Depth	1.9"
Weight (Approximate)	1 lb
Miscellaneous
Application/Usage	IP Camera
Application/Usage	Sound Card
Application/Usage	Video Encoder
Application/Usage	DVR
Country of Origin	United States
