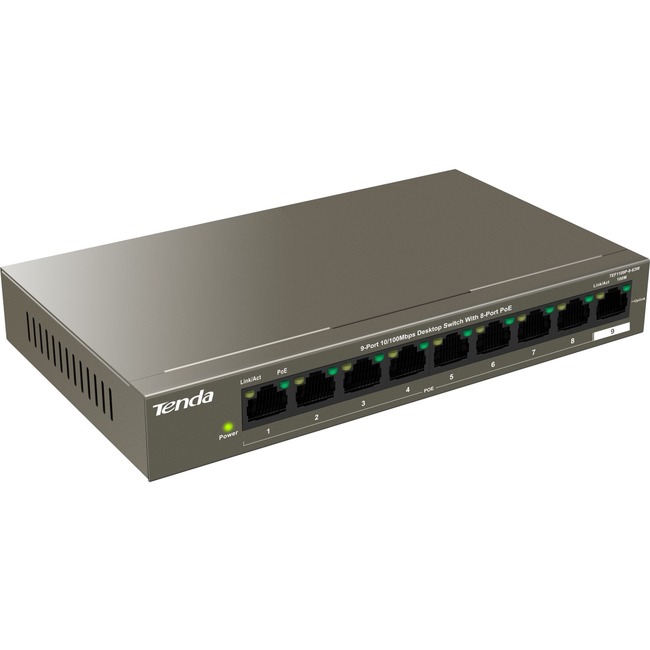

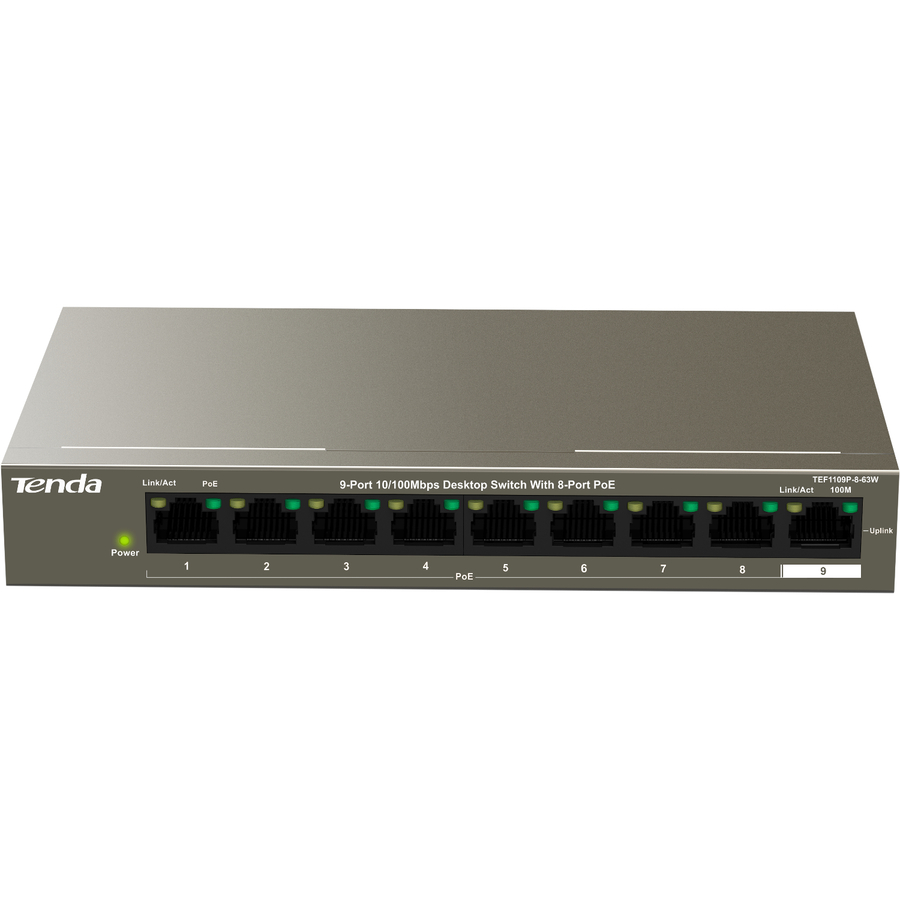

TENDA TECHNOLOGY Tenda Network TEF1109P-8-63W 9Port 10 100Mbps Desktop Switch With 8Port PoE
Mfg Part Number: TEF1109P-8-63W , Item #: 4188095
Image may not reflect the actual item.
Price: $73.24
+ Free Shipping
Quantity:
More to Come
Last Updated: May 12, 2024
No Sales Tax except these states
, PO and Wire.
TEF1109P-8-63W is an 9-Port 10/100Mbps Desktop Switch With 8-Port PoE developed by Tenda. It provides 9 10/100 BASE-TX RJ45 ports. Ports 1-8 support IEEE 802.3at PoE standard with each port providing power of 15.4W, or support IEEE 802.3af PoE+ standard with each port providing power of 30W. The whole device can provide power of up to 58W. By using CAT5 twisted pairs, it can provide power and data transmission to APs, IP cameras, IP phones, and so on. In addition, all the port s support lightning protection of 6kV and long distance data transmission and powering of 250m, which decreases deploy ment difficulty and time thus decreases cost.
Lightning Protection 6kV
The ports and embedded power can provide lightning protection of up to 6kV. It also provides PSE shortcircuiting protection, PoE overloading, power over temperature, over voltage and surge current protection.
Outstanding PoE Power Supply
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device.
250 Meters Transmission
With 8-pin and the professional network extension technology, the transmis- sion distance of power and data can be up to 250 meters, which can work in place of network extender or some optical fiber to expand the network without additional cost.
Lightning Protection 6kV
The ports and embedded power can provide lightning protection of up to 6kV. It also provides PSE shortcircuiting protection, PoE overloading, power over temperature, over voltage and surge current protection.
Outstanding PoE Power Supply
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device.
250 Meters Transmission
With 8-pin and the professional network extension technology, the transmis- sion distance of power and data can be up to 250 meters, which can work in place of network extender or some optical fiber to expand the network without additional cost.
Main Specification
| General Information | |
| Manufacturer | Tenda Technology Inc |
| Manufacturer Part Number | TEF1109P-8-63W |
| Manufacturer Website Address | http://www.tendaus.com |
| Brand Name | Tenda |
| Product Model | TEF1109P-8-63W |
| Product Name | 9-Port 10/100Mbps Desktop Switch With 8-Port PoE |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 9 |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 9 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1" |
| Width | 7" |
| Depth | 4.1" |
