10 ZIG TECHNOLOGY 7748QC-2803 7748QC 2GB 8GB W/WIRELESS - CITRIX
Mfg Part Number: 7748QC-2803 , Item #: 4185432
, PO and Wire.
Industry Leading VDI Performance

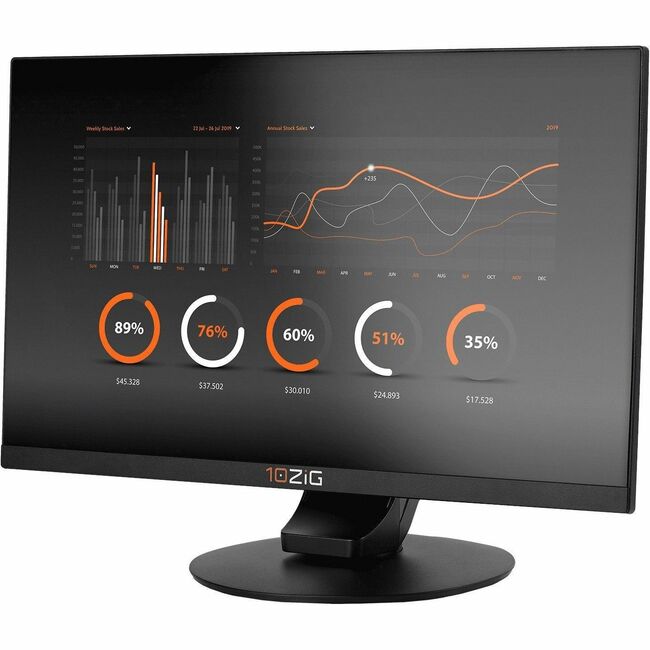

The 7748q Series is the newest model to the 10ZiG product lineup with its ultra-slim, stylish, 23.8" Full HD Display with LED backlight panel and two external up to 4K display monitor support with incredible all-in-one convenience and powerful performance. The new 10ZiG 7748q Series is based on a fanless Intel Braswell x5-E8000 Quad-Core 1.04 GHz/2.00 GHz Burst CPU platform. The sturdy compact foot stand is a strong anchor-base that tilts from -5 to 20 degrees and swivels an impressive -65 to 65 degrees.
The slender 9.9mm, frameless bezel design of the 10ZIG 7748q Series offers a 250 nits and anti-Glare panel for super-comfortable reading, OSD multiple-support control button functionality, and enables lower power consumption - on average equal to or less than 20 W.
| General Information | |
| Manufacturer | 10ZiG Technology |
| Manufacturer Part Number | 7748QC-2803 |
| Manufacturer Website Address | http://www.10zig.com |
| Brand Name | 10ZiG |
| Product Series | 7748q |
| Product Model | 7748QC-2803 |
| Product Name | 7748QC-2803 Zero Client |
| Packaged Quantity | 1 |
| Product Type | Zero Client |
| Processor | |
| Number of Processors Installed | 1 |
| Processor Type | Atom x5 |
| Processor Model | E8000 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 1.04 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 2 GB |
| Maximum Memory Supported | 8 GB |
| Flash Memory | 8 GB |
| Storage | |
| Drive Type | Flash |
| Display & Graphics | |
| Screen Size | 23.8" |
| Screen Mode | Full HD |
| Screen Resolution | 1920 x 1080 |
| Backlight Technology | LED |
| Graphics Controller Model | HD Graphics |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| Interfaces/Ports | |
| DVI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Number of DisplayPorts | 1 |
| Operating System | |
| Operating System | NOS |
| Power Description | |
| Maximum Power Supply Wattage | 20 W |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | All-in-One |
| Height | 12.8" |
| Width | 21.3" |
| Depth | 1.7" |
| Weight (Approximate) | 9.92 lb |
| Miscellaneous | |
| Package Contents |
|
