AXIOM

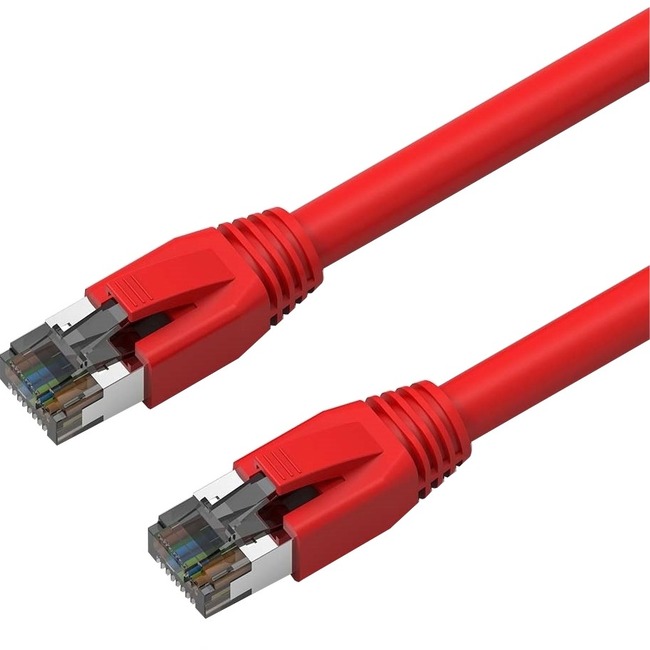

AXIOM C8SBSFTP-R7-AX 7FT CAT8 2000MHZ S/FTP PATCH CABLE SNAGLESS BOOT SHIELDED

Mfg Part Number:  C8SBSFTP-R7-AX
Image may not reflect the actual item.
Price: $36.63 + Free Shipping
Quantity:
In Stock: 1
Last Updated: May 31, 2024
No Sales Tax except these states
, PO and Wire.

Axiom's CAT8 Ethernet Cables are the first future proof, cost effective, high performance solution capable to reach up to 40Gbps transfer speeds and up to 2GHz of bandwidth. They are made of (4) twisted pure copper wire pairs and each pair is foil-shielded and also the 4 pairs have an overall braided shield. This double shielding structure provides a maximum EMI protection. The snagless boot protects the locking tabs on the RJ45 connectors from being damaged. Our Category 8 shielded cables are offered in a variety of lengths from 6 inch to 50 feet and are available in 9 different colors

  • Conductor: 4-pair S/FTP stranded copper (6-inch to 7ft use 24AWG wire and 10ft to 50ft use 26AWG wire)
  • Shielding: Each pair Foil shielded / 4 Pair Braid Shield
  • Connector: 8P8C RJ45 50 micron gold-plated contacts two-piece with nickel plated shielding
  • Provides EMI/RFI shielding in Ethernet networks
  • Wiring: T568B standard
  • Jacket: PVC
  • Standard: Category 8 Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
  • Snagless Rubber Boots with Strain Relief
  • Max Bandwidth: Up to 2,000 MHz (2GHz)
  • Max data rate: Up to 40Gps
  • Min Avg. jacket Thickness: 0.60 +/- 0.1mm
  • Backward Compatible with all categories Cat5E, Cat6, Cat6A, Cat7 Networks
  • Available in all lengths from 6-Inch to 50ft
  • Colors: K= Black, B= Blue, G=Gray, N=Green, O=Orange, P= Purple, R= Red, W=White, Y= Yellow
    • Main Specification
    General Information
    Manufacturer Axiom Memory Solutions
    Manufacturer Part Number C8SBSFTP-R7-AX
    Manufacturer Website Address http://www.axiommemory.com
    Brand Name Axiom
    Product Name 7FT CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Red)
    Product Type Network Cable
    Technical Information
    Cable Type Category 8
    Cable Characteristic Patch Cable
    Cable Length 7 ft
    Connector Type on First End RJ-45 Network - Male
    Connector on First End Details RJ-45 Network - Male
    Connector Type on Second End RJ-45 Network - Male
    Connector on Second End Details RJ-45 Network - Male
    Contact Plating Nickel
    Contact Plating Gold
    Shielding Yes
    Device Supported Network Device
    Data Transfer Rate 40 Gbit/s
    Boot Type Snagless
    Features EMI/RF Protection
    Features Double Shielded
    Features Strain Relief
    Physical Characteristics
    Product Color Red
    Product Material Copper
    Connector Material Polyvinyl Chloride (PVC)
    Shielding Material Foil
    Miscellaneous
    Environmentally Friendly Yes
    product information
    WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
