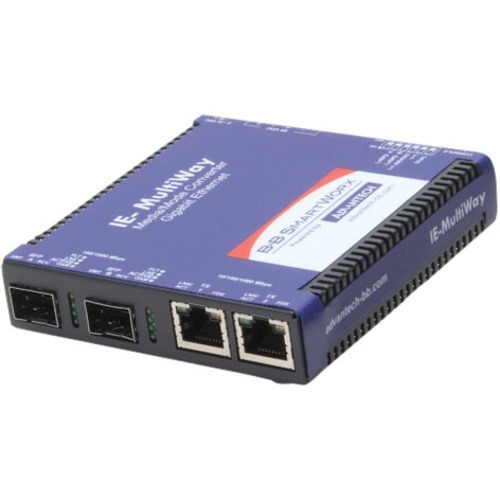

The IMC-574I is a value-based, managed Gigabit Ethernet solution that is ideal for use in fiber infrastructure. The IMC-574I comes with two SFP ports and two fixed 10/100/1000Base-T copper ports. There are four distinct DIP switch selectable configurations that feature the IMC-574I to be a 1+1 uplink port revertive mode, a 1+1 uplink protection non-revertive mode, a 4-port Gigabit switch, and a dual copper-to-fiber SFP media/mode converter (two Gigabit fiber media converters in one).
The term "1+1" refers to line protection where identical information is transmitted on two lines. The receiver chooses its communication line based on the revertive or non-revertive configuration. When a fault is detected on the active line, the traffic is switched to the redundant line. In the non-revertive mode, data is not resumed back to the original line unless the backup line fails or is disconnected. Once the original line is no longer in a fault condition, data can be resumed back to the original line.
Main Specification
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
IMC-574I-SFP-PS
Manufacturer Website Address
http://www.advantech.com
Brand Name
B+B SmartWorx
Product Series
IMC-574I
Product Model
IMC-574I-SFP-PS
Product Name
10/100/1000Mbps 2TX/2SFP Intelligent Media Converter
Product Type
Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports
2
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
Media & Performance
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
I/O Expansions
Number of Total Expansion Slots
2
Expansion Slot Type
SFP (mini-GBIC)
Number of SFP Slots
2
Network & Communication
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T
Network Technology
1000Base-X
Power Description
Power Source
AC/DC
Physical Characteristics
Form Factor
Wall Mountable
Form Factor
DIN Rail Mountable
Height
0.9"
Width
3.7"
Depth
3.9"
Weight (Approximate)
15.87 oz
Miscellaneous
Package Contents
10/100/1000Mbps 2TX/2SFP Intelligent Media Converter
