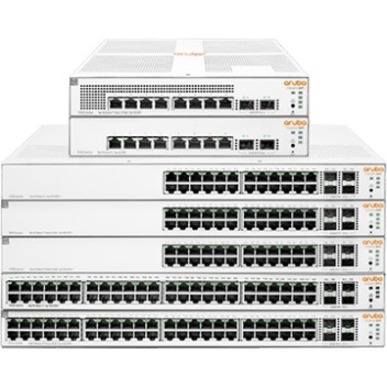

Aruba Instant On 1930 switches are advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses and SMBs looking for high performance networking that is easy-to-deploy and affordable. They're made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance. This model supports 28 active ports -- 24x 10/100/1000 copper Ethernet RJ45 ports and four 1-Gigabit / 10-Gigabit SFP+ style uplink slots. Power over Ethernet both PoE and PoE+ can operate on any of its 24 RJ45 ports, with a total PoE budget of 370 Watts.
Using either the Instant On mobile app or its cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. Also available is a comprehensive local web interface. Built-in security features protect your network from unauthorized access by allowing you to segment traffic and define access to each area of the network. Advanced features include VLANs, 802.1X radius-based network login, three levels of Spanning Tree protocol, and Layer 3 static routing, among others. And all of this is included in the price of the hardware - there are no hidden subscription or licensing fees. All are backed by Aruba's Limited Lifetime Warranty.
| General Information | |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL684A#ABA |
| Manufacturer Website Address | http://www.hpe.com |
| Brand Name | HPE |
| Product Name | Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 28 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
| Network Technology | 1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | No |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
| Power Consumption | 439 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 10.4" |
| Weight (Approximate) | 8.09 lb |
| Warranty | |
| Limited Warranty | Lifetime |
