SUPERMICRO

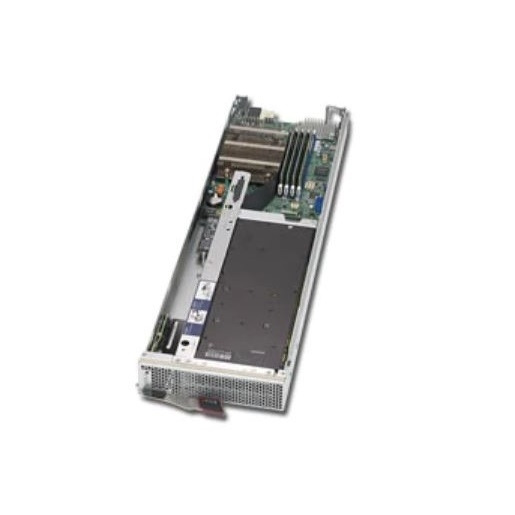

SUPERMICRO SBI-4119MG-X XEON E BLADE SUPPORT 1X M.2/PCI E 2X8 OR 1X16
Mfg Part Number: SBI-4119MG-X , Item #: 3801490
, PO and Wire.
Resource Saving Architecture
A shared cooling, power and networking infrastructure is key to the high density and server efficiency offered by blade solutions. 6U SuperBlade takes our resource saving initiative even further with Supermicro's innovative Disaggregated Server Design that enables the independent upgrades of the compute modules without replacing the rest of the blade server components for optimal TCO.
Data Center Friendly Design and Features
The SuperBlade family comes in a variety of form-factors and can be easily deployed in almost any data center environment. This is complemented by data center friendly features and designs, including free-air cooling, Battery Backup Power (BBP®), Supermicro RSD with Redfish RESTful APIs, redundant AC or DC power supply options and more.
Blade Network Manager
The Supermicro Blade Network Manager (BNM) is a part of Supermicro's blade management software suite designed to reduce IT management overheads and manual networking configuration errors within a MicroBlade or SuperBlade enclosure. BNM offers a single-pane of glass to monitor and manage the networking configurations across multiple SuperBlade and MicroBlade enclosures in a data center environment. It provides an overview of the networking topology from each blade server's perspective and helps to easily manage the Ethernet Blade switches and to diagnostic networking configuration issues.
| General Information | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SBI-4119MG-X |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperBlade |
| Product Model | SBI-4119MG-X |
| Product Name | Processor Blade SBI-4119MG-X (Black) |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C246 |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21333 |
| Number of Total Memory Slots | 4 |
| Controllers | |
| Controller Type | Serial ATA |
| Display & Graphics | |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Slots | 3 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Blade |
| Height | 6.5" |
| Width | 1.8" |
| Depth | 23.5" |
| Weight (Approximate) | 9.50 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
