SUPERMICRO

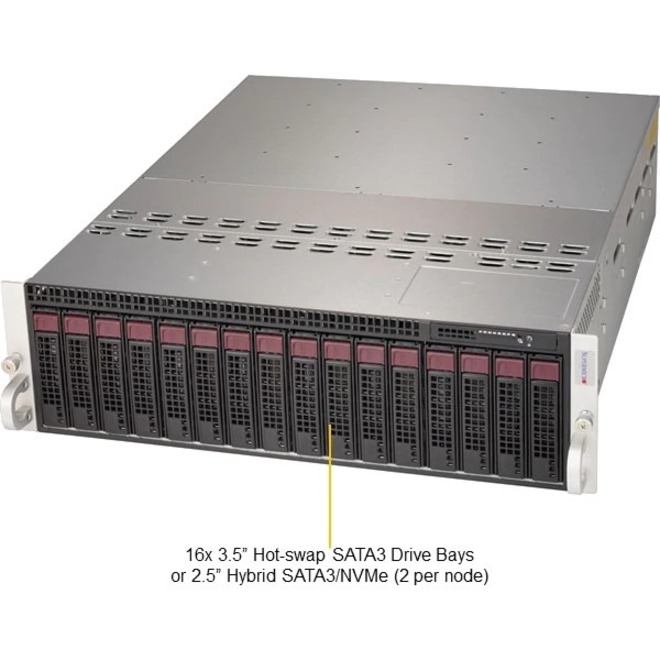

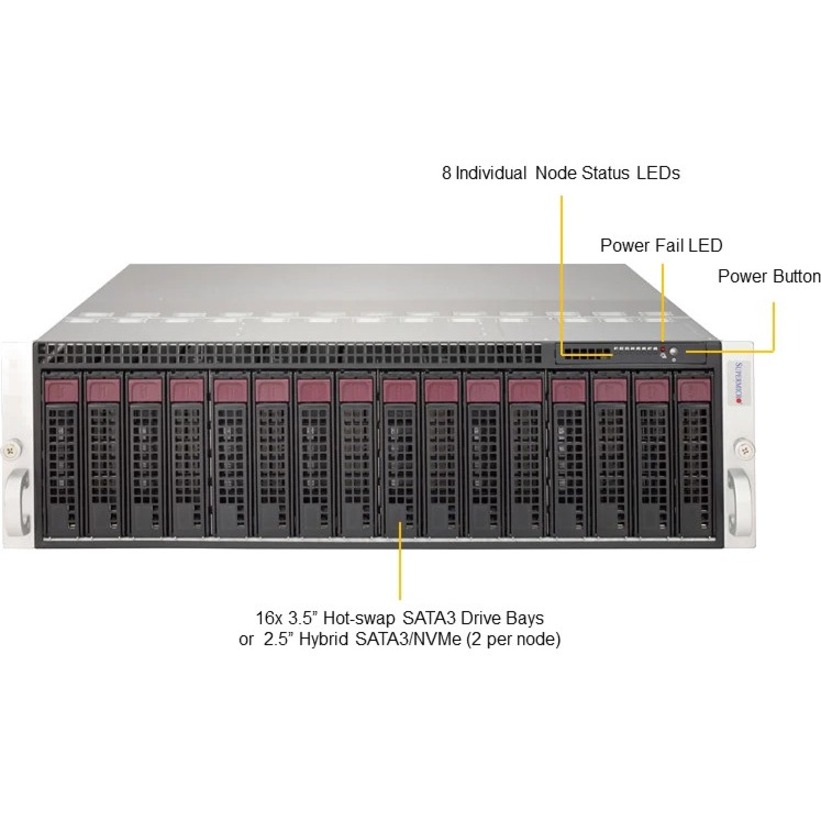

SUPERMICRO SYS-5039MP-H8TNR 3U MICROCLOUD SYSTEM X11SPD-F 938NH-R2K04B
Mfg Part Number: SYS-5039MP-H8TNR , Item #: 3801052
, PO and Wire.
The Supermicro MicroCloud modular server system provides the high density, performance, efficiency and cost savings required for today's demanding server deployments. The 12/8 modular server nodes are conveniently integrated into a compact 3U chassis that is only 29.5/23.2 inches deep, saving over 72% of rack space when compared to traditional 1U servers optimized for the best performance per rack. The cable-less, hot-pluggable server nodes operate independently. Each node provides up to 128GB of DDR3-1600/1333MHz of ECC LR/RDIMM memory, one PCI-E 3.0 x8 expansion slot for low-profile add-on card, and two 3.5" or four 2.5" SATA 3.0 (6Gbps) hard disk drives. The MicroCloud system utilizes redundant Platinum Level (94%) high-efficiency power supplies and sophisticated cooling zone controls for a Green energy profile. Each node is powered by processors from either the newest Intel® Xeon® E3-1200v2 & E3-1200 v3 families (5037MC and 5038ML models) or E5-2600 family up to 130W TDP; or the 8/4-Core AMD Opteron™ 3000 series
| General Information | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-5039MP-H8TNR |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 5039MP-H8TNR |
| Product Name | SuperServer SYS-5039MP-H8TNR (Black) |
| Product Type | Server Barebone System |

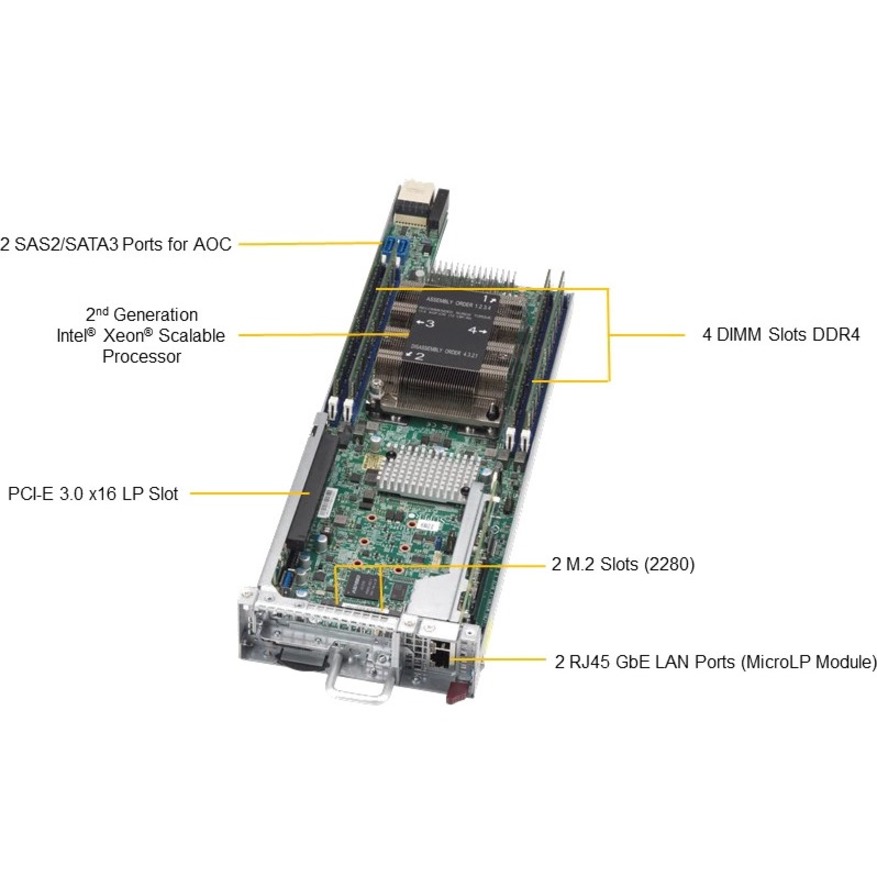

| Processor | |
| Number of Nodes | 8 |
| Number of Processors Supported | 1 |
| Processor Socket | Socket P LGA-3647 |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Gold |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Platinum |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Memory | |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2933/PC4-23466 |
| Total Number of Memory Slots | 4 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Number of 3.5" Bays | 2 |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of SATA Interfaces | 2 |

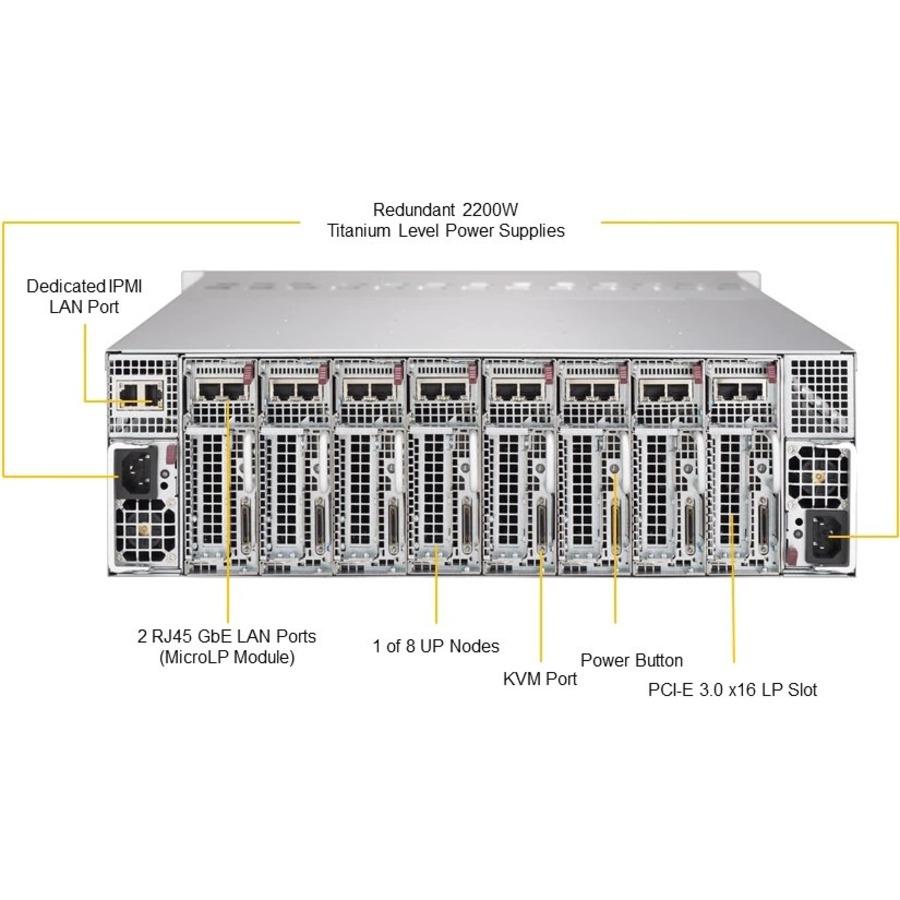

| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 2200 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 5.2" |
| Width | 17.3" |
| Depth | 23.2" |
| Weight (Approximate) | 62.19 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
