CYBERPOWER

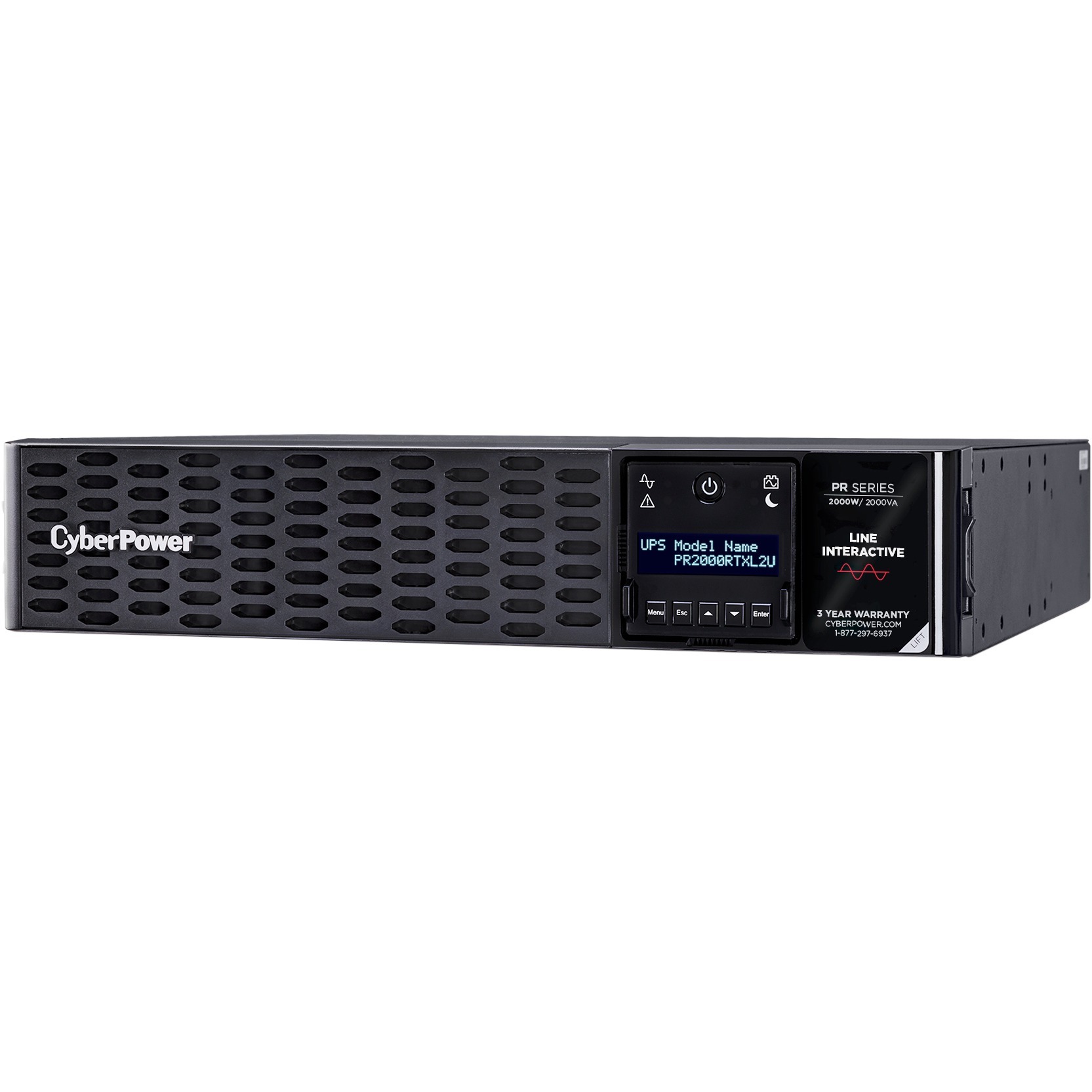

CYBERPOWER PR2000RTXL2UTAA 2000VA/W2KW SINE WAVE UPS 2U 8XNEMA 5-20R 10FT CORD 3YR WTY
Mfg Part Number: PR2000RTXL2UTAA , Item #: 3796129
, PO and Wire.
The PR2000RTXL2UTAA is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
The Smart App Sinewave PR2000RTXL2UTAA improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2000RTXL2UTAA also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02TAA Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205TAA network management card for remote management and control via a standard web browser or network management system.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2000RTXL2UTAA.
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR2000RTXL2UTAA |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Series | TAA Compliant UPS & Hardware |
| Product Model | PR2000RTXL2UTAA |
| Product Name | PR2000RTXL2UTAA Smart App Sinewave UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 8 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Transfer Time | 4 ms |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Application/Usage | Network Device |
| Application/Usage | Workstation |
| Application/Usage | Telecommunication |
| Application/Usage | Server |
| Power Description | |
| Load Capacity (VA) | 2000 VA |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 155 V AC |
| Output Voltage | 100 V AC |
| Output Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 125 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Overheat |
| Alarm | Battery Mode |
| Alarm | Over Charge |
| Alarm | Low Battery |
| Alarm | Overload |
| Controls/Indicators | |
| Status Indicators | Multifunction LCD Panel:
LED Indicators:
|
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 4 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 4.30 Minute |
| Backup/Run Time (Half Load) | 12.20 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 49212.60 ft |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 17.1" |
| Depth | 19.7" |
| Weight (Approximate) | 74.50 lb |
| Miscellaneous | |
| Software Included | PowerPanel® Business |
| Energy Star | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
