B+B SmartWorx/Advantech

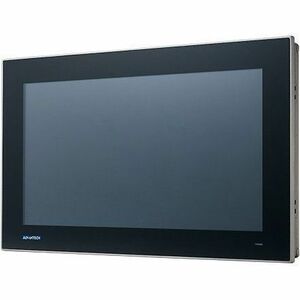

B+B SmartWorx/Advantech FPM-215W-P4AE 15.6IN WXGA IND MONITOR WPCAP TOUCH HDMI TRUE FLAT IP66 DC 12V
Mfg Part Number: FPM-215W-P4AE , Item #: 3796115
Image may not reflect the actual item.
Price: $956.97
+ Free Shipping
Quantity:
More to Come
Last Updated: Dec 03, 2025
No Sales Tax except these states
, PO and Wire.
The FPM-215W is an industrial-grade, widescreen monitor with a true-flat touchscreen. Equipped with P-CAP 10-point multi-touch control and an IP66-rated front bezel, FPM-215W is designed for intuitive operation in industrial environments such as smart factory and machine auto automation applications
Main Specification
| General Information | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | FPM215WP4AE |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Model | FPM-215W |
| Product Name | FPM-215W 15.6" WXGA Industrial Monitor with P-CAP Touch Control, Direct HDMI Port |
| Product Type | LED Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 16" |
| Viewable Screen Size | 15.6" |
| Screen Mode | WXGA |
| Panel Technology | Thin Film Transistor (TFT) |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 160° |
| Mount Type | Stand Mountable |
| Mount Type | Wall Mountable |
| Mount Type | Panel Mount |
| Mount Type | Arm-mountable |
| Backlight Technology | LED |
| Ingress Protection (IP) Rating | IP66 |
| Video | |
| Maximum Resolution | 1366 x 768 |
| Native Contrast Ratio | 500:1 |
| Brightness | 300 Nit |
| Touchscreen Information | |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| Environmental Conditions | |
| Operating Temperature Range | 32°F (0°C) to 122°F (50°C) |
| Non-operating Temperature Range | -4°F (-20°C) to 140°F (60°C) |
| Operating Humidity Range | 10% to 95% (Non-condensing) |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| Height | 10.6" |
| Width | 16.5" |
| Depth | 2.2" |
| Weight (Approximate) | 8.82 lb |
