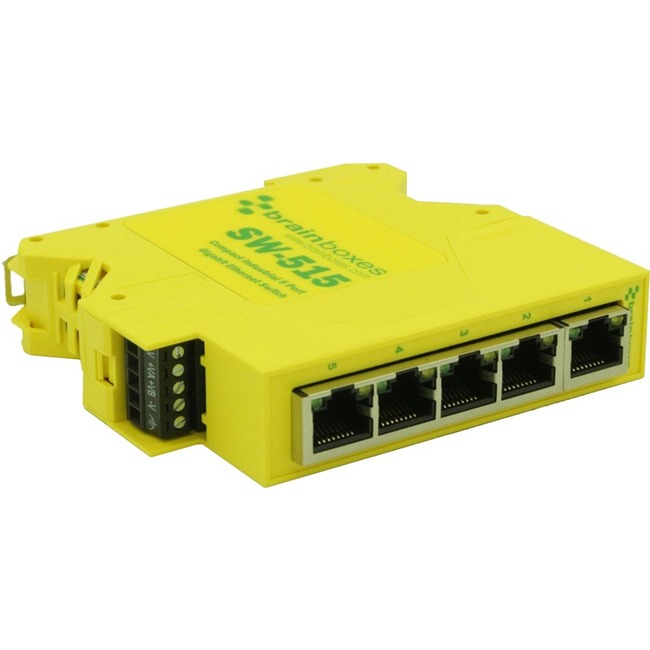

BRAINBOXES SW-515 Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail, -40ºC to +80ºC
Mfg Part Number: SW-515 , Item #: 3773473
Image may not reflect the actual item.
Price: $159.99
Quantity:
In Stock: 73
Last Updated: May 08, 2024
No Sales Tax except these states
, PO and Wire.
Compact industrial 5 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Main Specification
| General Information | |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW-515 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Brand Name | Brainboxes |
| Product Model | SW-515 |
| Product Name | Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 3.9" |
| Width | 0.9" |
| Depth | 3.7" |
| Weight (Approximate) | 3.95 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
