- 4 x Gigabit PoE+ ports, 1 x Gigabit port,120W PoE power budget,10Gbps switching capacity
- Power supply sold separately (models: TI-S12048, TI-S24048, and 48VDC3000)
- Supports jumbo frames up to 9KB
- Hardened IP30 rated metal housing, Includes wall mounting and DIN-Rail brackets
- Operating temperature range of -40° - 75° C (-40° - 167° F)
- Dual redundant power inputs with overload current protection
- Alarm relay triggered by power failure
- Lifetime TRENDnet Manufacturer's Warranty
- Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048)
- NDAA / TAA compliant (U.S. and Canada only)

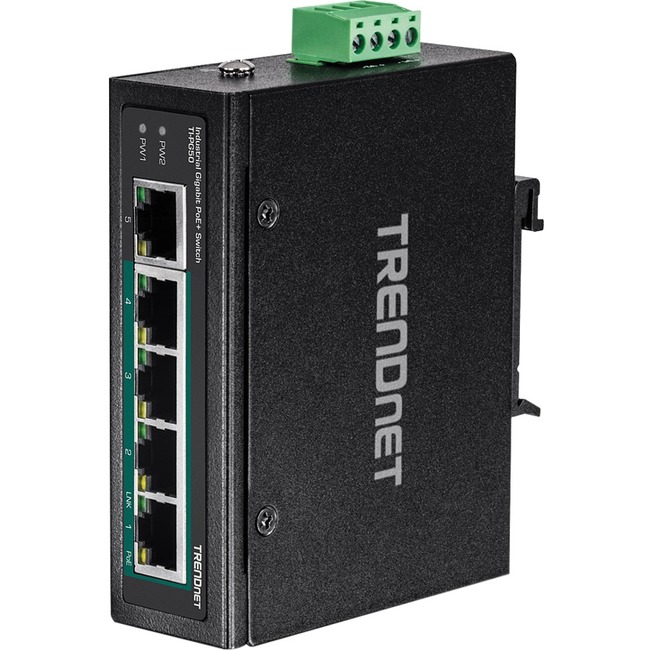

TRENDnet's 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG50, has four gigabit PoE+ ports with a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial switch, while simultaneously providing a non-PoE gigabit port for connectivity to the network. The TI-PG50 industrial switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments
PoE Power
A 120W PoE+ power budget for up to four Power over Ethernet devices with PoE+ power.
Fault Tolerance
The industrial switch features redundant power inputs with overload current protection.
Industrial Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40° - 75° C (-40° - 167° F).
Network Ports
4 x Gigabit PoE+ ports and 1 x Gigabit port
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall mount hardware
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Redundant Power
Redundant power inputs with overload current protection (compatible power supply sold separately models: TI-S12048 / TI-S24048)
Switching Capacity
10Gbps switching capacity
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point on the industrial switch protects equipment from external electrical surges
PACKAGE CONTENTS
TI-PG50
Quick Installation Guide
Removable terminal block
DIN-Rail and wall mount kit
| General Information | |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-PG50 |
| Manufacturer Website Address | http://www.trendnet.com |
| Brand Name | TRENDnet |
| Product Model | TI-PG50 |
| Product Name | 5-Port Industrial Gigabit PoE + DIN-Rail Switch |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+ |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Form Factor | Wall Mountable |
| Height | 3" |
| Width | 4" |
| Depth | 7" |
| Weight (Approximate) | 12.80 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
