DIGI  Mfg Mini-Store Selector

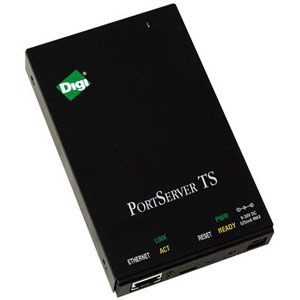

70002045 Digi PortServer TS 4 port RS-232 RJ-45 Serial to Ethernet Device Server, 9-30VDC includes 12V/.5A Wall Mount power supply w/ US plug

Mfg Part Number:  70002045
Image may not reflect the actual item.
Price: $534.57
Quantity:
In Stock: 185
Last Updated: Dec 23, 2025
No Sales Tax except these states
, PO and Wire.

PortServer TS 4 device server is designed for standard and secure serial-to-Ethernet connectivity. Ideal for RS-232 applications requiring seamless integration to existing application environments and network device management.

Main Specification
General Information
Manufacturer Digi International
Manufacturer Part Number 70002045
Manufacturer Website Address http://www.digi.com
Brand Name Digi
Product Line PortServer
Product Series TS
Product Model TS 4
Product Name PortServer TS 4 Device Server
Product Type Device Server
Network & Communication
Ethernet Technology Fast Ethernet
Interfaces/Ports
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 5
Physical Characteristics
Form Factor Wall Mountable
Height 1"
Width 3.3"
Depth 5.3"
Weight (Approximate) 2.25 oz
Miscellaneous
Package Contents
  • PortServer TS 4 Device Server
  • Power supply
  • RJ-45/DB-9F crossover cable
Country of Origin United States
Warranty
Limited Warranty 5 Year
product information
Mechanical
Dimensions: WxHxD (mm) 133 x 84 x 24
Mounting Wall Mount
Enclosure Metal
Interface
Serial interface RS232
Serial interface number of ports 4
Serial Interface type of connector RJ45
Network interface 1 Port Ethernet RJ45 Connector
Network interface number of ports 1
Network interface type of connector RJ45
Power
Power Input Type Single DC / Jack
Operating Supply Voltage 9 to 30 VDC
Power Consumption 6W
Reliability
Operating Temperature 0 to 60C
Isolation Protection -
Surge Protection Yes
Standards and Certifications EMC CE, FCC Part 15 Subpart B (Class A)
The PortServer TS 2 deliver simple, reliable and cost-effective network connectivity for multiple serial devices. It addresses the growing need to connect individual devices to the network over industry standard Ethernet in many applications, including retail/point-of-sale, building control and medical point-of-care.
  • Standard, reliable serial-to-Ethernet connectivity
  • 1, 2 or 4 ports; RS-232 RJ-45 serial
  • 9-30VDC power supply
  • Easy configuration using installation CD
Device Type Device server
Width 3.3 in
Depth 0.9 in
Height 5.2 in
Networking
Form Factor External
Ports Qty 4
Connectivity Technology Wired
Data Transfer Rate 230 Kbps
Data Link Protocol Ethernet, Fast Ethernet, RS-232, PPP
Network / Transport Protocol TCP/IP, UDP/IP
Remote Management Protocol SNMP, Telnet, HTTP
Status Indicators Link activity, power
Features Flow control, DHCP support, RARP support, manageable, RealPort technology
Expansion / Connectivity
Interfaces 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
4 x serial - RS-232 - RJ-45
Miscellaneous
Compliant Standards CE, EN 60950, UL 1950, CSA 22.2 No. 950, EN55022 Class B, ICES-003 Class B, FCC Part 15 B, AS/NZS 3548
Power
Power Device Power adapter - external
Voltage Required AC 120/230 V
Software / System Requirements
OS Required SCO OpenServer, UnixWare, IBM AIX, SunSoft Solaris, Compaq Tru64 UNIX, HP-UX, Linux, Microsoft Windows NT, Microsoft Windows 98/ME, Microsoft Windows 2000 / XP, Microsoft Windows Server 2003
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 140 °F
Humidity Range Operating 5 - 90%
