UBIQUITI

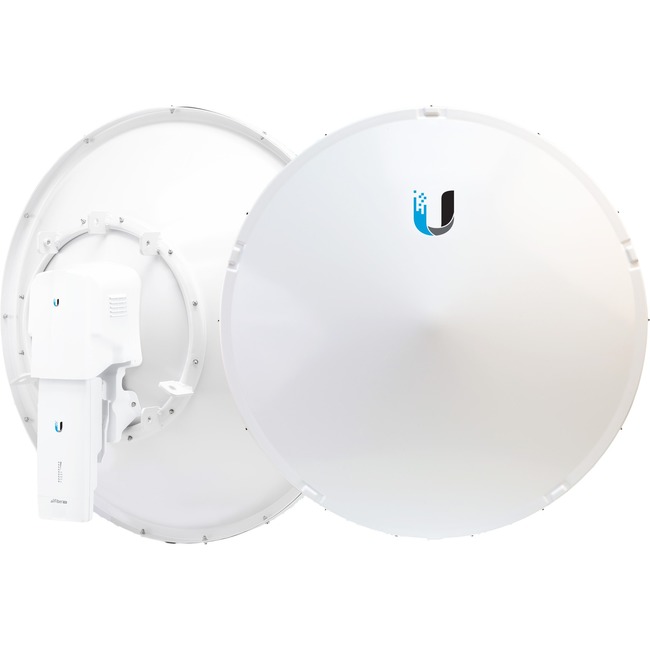

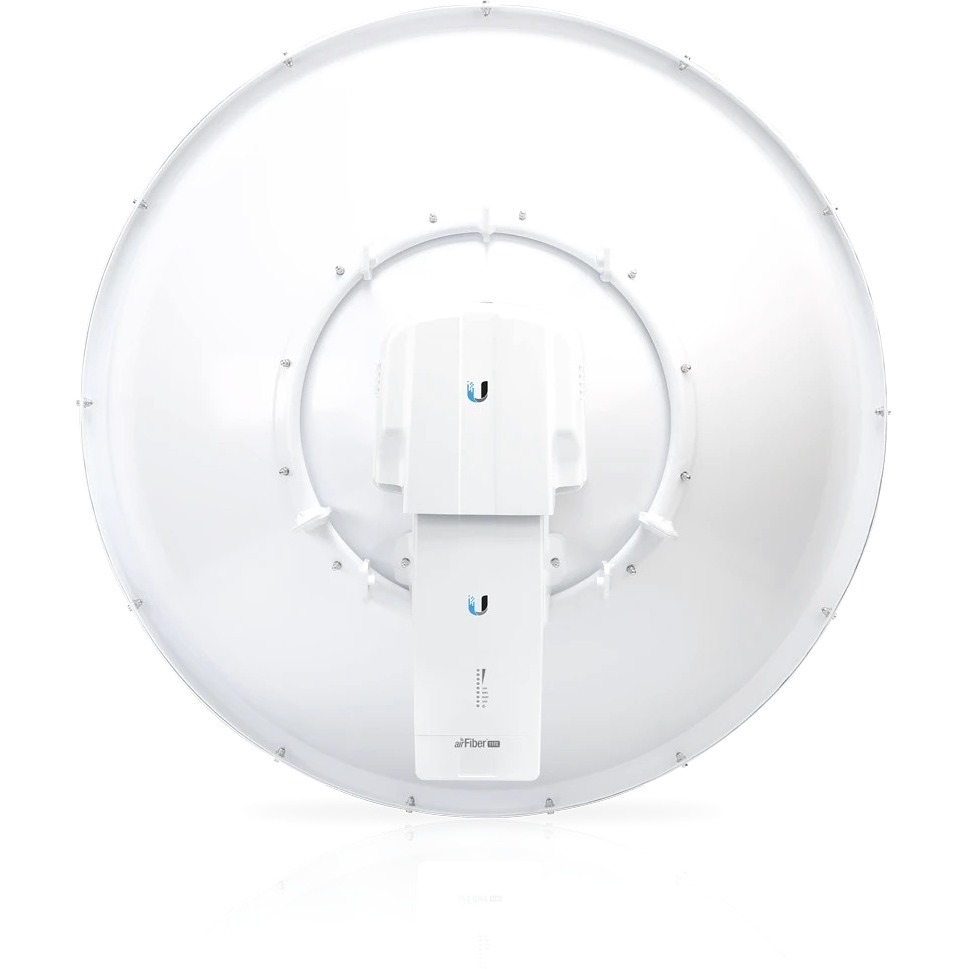

UBIQUITI AF11-COMPLETE-HB AIRFIBER RADIO SYSTEM

Mfg Part Number:  AF11-COMPLETE-HB
Image may not reflect the actual item.
Price: $1,588.77 + Free Shipping
Quantity:
More to Come
Last Updated: Feb 13, 2026
No Sales Tax except these states
, PO and Wire.

airFiber 11 is the first modular airFiber radio system purpose-built for the 11 GHz licensed frequency market that breaks free from the congested 5 GHz band. Housed in a compact, highly efficient form factor, airFiber 11 delivers amazing wireless gigabit+ performance, low latency, and long range, making it ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

Features

  • Full duplex point-to-point radio
  • 11 GHz frequency operation
  • Up to 1.2+ Gbps throughput
  • Includes one high-band duplexer for SISO mode (MIMO mode requires an optional second duplexer)
  • Integrates with AF-11G35 11 GHz antenna
  • Supports separate TX/RX frequencies
  • Accepts PoE or DC power
Main Specification
General Information
Manufacturer Ubiquiti Inc.
Manufacturer Part Number AF11-COMPLETE-HB
Manufacturer Website Address http://www.ui.com
Brand Name Ubiquiti
Product Line airFiber 11
Product Model AF-11
Product Name airFiber 11 AF-11 Satellite Radio
Product Type Wireless Access Point
Technical Information
Frequency Band 5 GHz
Wireless Transmission Speed 1.20 Gbit/s
MIMO Technology Yes
Interfaces/Ports
Ethernet Technology Gigabit Ethernet
Number of Network (RJ-45) Ports 1
PoE PD Port Yes
Management Port Yes
Physical Characteristics
Height 12.9"
Width 4.4"
Depth 3.4"
Weight (Approximate) 4.98 lb
Miscellaneous
Package Contents
  • airFiber 11 AF-11 Satellite Radio
  • 50V, 1.2A PoE Gigabit Adapter
  • 1 x High-band Duplexer
Additional Information
  • Networking Interface:
    • Data: 1 x 10/100/1000 Ethernet Port
    • Management: 1 x 10/100 Ethernet Port
  • Mounting: AF-11G35 Mount Compatible
  • Supported Voltage Range: 38-56VDC
  • Power Supply: UniFi PoE Switch
  • Operating Temperature: -40 to 55° C (-40 to 131° F)
  • RF Connectors: 4 x SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer

SYSTEM

  • Processor: INVICTUS™ 2 IC
  • Maximum Throughput: 1.2+ Gbps
  • Encryption: 128-bit AES
  • OS: airOS F
  • Wireless Modes: SISO/MIMO
  • Operating Frequency: 10.7-11.7 GHz (Depends on Regulatory Region)
  • Max. Conducted TX Power: 30 dBm (Depends on Regulatory Region)
  • Frequency Accuracy: ± 1 ppm
  • Channel Bandwidth:
    • 3.5/5/7/10/14/20/28/30/40/50/56 MHz
    • Selectable
    • Programmable Uplink and Downlink Duty Cycles
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 1 Year
