TYAN

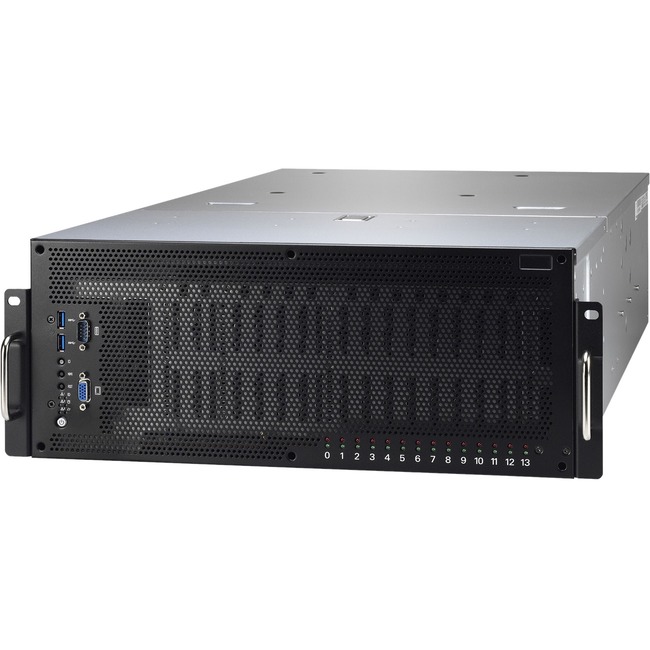

B7109F77DV10E4HR-2T-NF TYAN THUNDER HX FT77D-B7109
Mfg Part Number: B7109F77DV10E4HR-2T-NF , Item #: 3723874
Image may not reflect the actual item.
Price: $4,925.43
+ Free Shipping
Quantity:
More to Come
Last Updated: May 09, 2024
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | B7109F77DV10E4HR-2T-NF |
| Manufacturer Website Address | http://www.tyan.com |
| Brand Name | Tyan |
| Product Line | Thunder HX |
| Product Model | FT77DB7109 |
| Product Name | Thunder HX FT77DB7109 (B7109F77DV10E4HR-2T-NF) |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket P LGA-3647 |
| Processor Supported | Xeon Gold |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Platinum |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Memory | |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Number of Total Memory Slots | 24 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2500 |
| Graphics Memory Capacity | 32 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 14 |
| Number of Internal 2.5" Bays | 14 |
| Number of Total Expansion Slots | 10 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 8 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Number of Power Supplies Installed | 3 |
| Maximum Power Supply Wattage | 3200 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.9" |
| Width | 17.2" |
| Depth | 30.3" |
| Weight (Approximate) | 57.32 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
